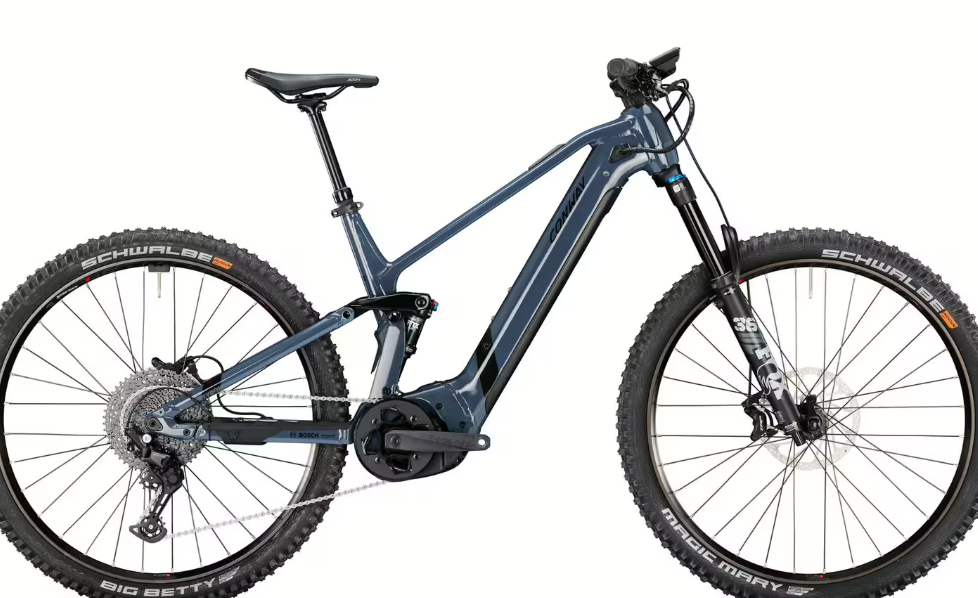

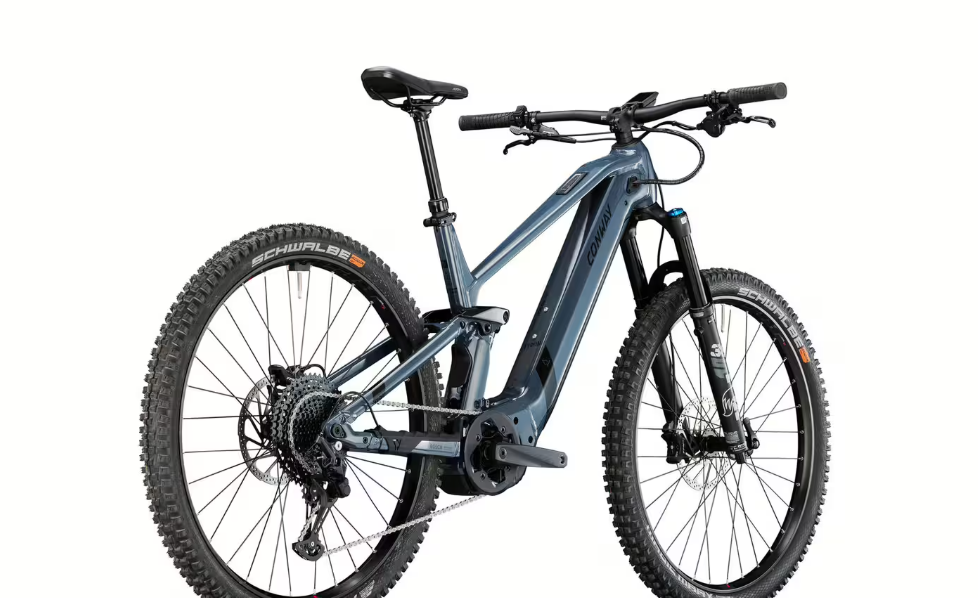

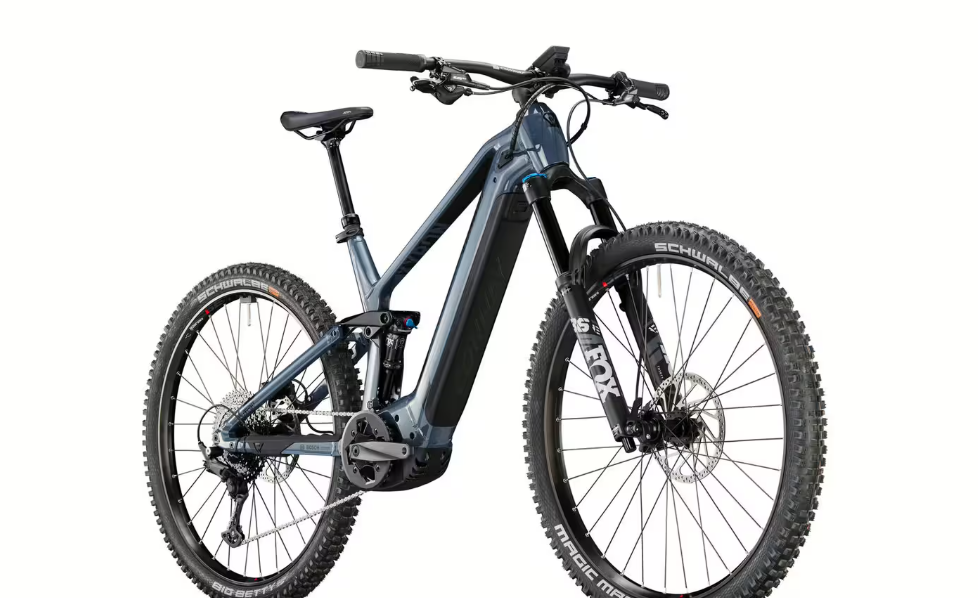

2024 Conway Xyron S 4.9 Full Suspension – E-Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Xyron S 4.9 |
|
Vehicle Category |
E-Mountain Bike |
|
Application |
Trail riding, mountain biking |
|
Starting Price (2025) |
€5,299.95 |
|
Color Options |
Anthracite / Black Metallic |
|
Sizes |
S (40 cm), M (43 cm), L (46 cm), XL (49 cm), XXL (52 cm) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Intube Bosch, Gen. 4, BES3, Aluminum |
|
Fork |
FOX "36 Float Performance E", 150 mm, Tapered, 15 x 110 mm Boost, Thru Axle, 44 mm offset |
|

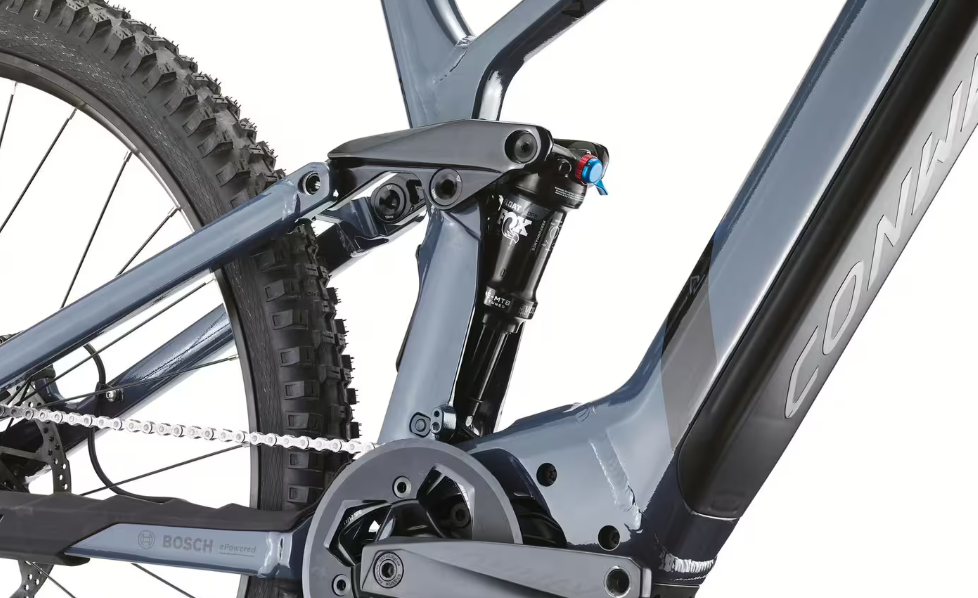

Rear Shock |
FOX "Float DPS", 185 mm x 55 mm |
|
Crank |
MIRANDA "Epsilon", 165 mm, 36 teeth |
|
Chain |
KMC "X11e EPT", 11-speed |
|
Shifters |
SHIMANO "Deore SL-M5100" |
|
Rear Derailleur |
SHIMANO "Deore RD-M5100" |
Components & Features
|
Specification |
Details |
|
Seating |
FIZIK "Terra Aidon X5", unisex, type 2, regular, L 255 x W 145 mm, black |
|
Fuel Type |
Electric (Lithium-Ion Battery) |
|
Wheels/Tyres |
29" SCHWALBE "Magic Marry" Evolution Line (front, 62-622, Super Gravity, Addix Soft, TLE, 67 TPI, E-50), SCHWALBE "Big Betty" Evolution Line (rear, 62-622, Super Gravity, Addix Soft, TLE, 67 TPI, E-50), RODI "Ready 35" Rims, Niro Spokes, SHIMANO "Deore CS-M5100" 11-51T |
|
Wheel Size |
29" |
|
Brakes |
Hydraulic Disc Brakes, TEKTRO "HD-M535" (203 mm, front and rear, 4-piston, 6-hole, 2.3 mm thick) |
|

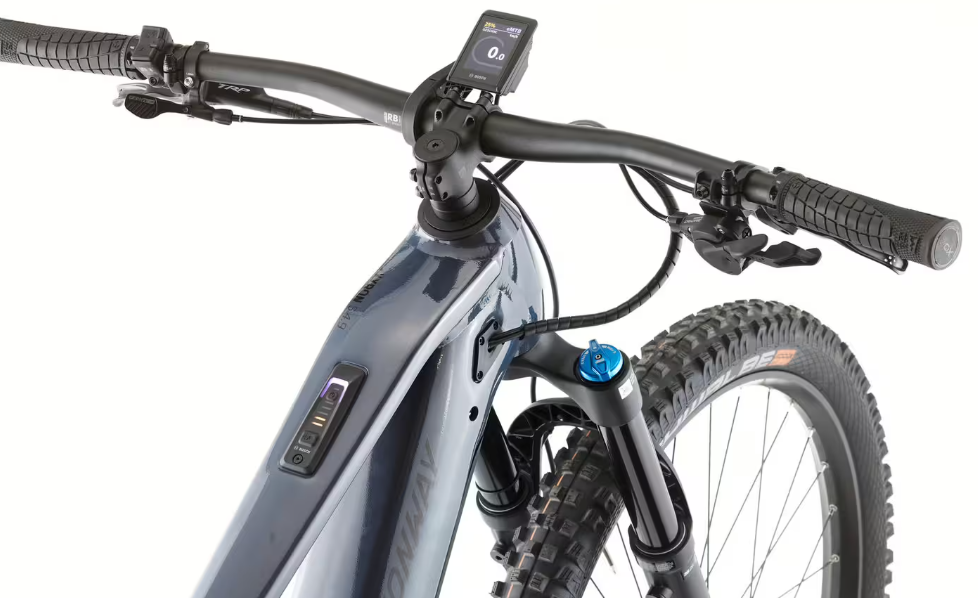

Handlebar |
LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, backsweep 9°, rise 15 mm, black |
|
Stem |
LEVELNINE "Race A-Head", 1 1/8", 31.8 mm handlebar clamps, 35 mm long, 0° angle, black |
|
Grips |
SQLAB "70X", size M, 135 mm, black |
|
Headset |
ACROS ZS56/28.6 / ZS56/40, 120° blocklock |
|
Saddle |
FIZIK "Terra Aidon X5", unisex, type 2, regular, L 255 x W 145 mm, black |
|
Seatpost |
CONTEC adjustable seatpost "Drop-A-Gogo", Ø 31.6 mm, 340 mm long, 100 mm adjustment range, black |
|
Front Hub |
FORMULA "DC 511", 15 x 110 mm, 6-hole, 32 holes, thru axle, black |
|
Rear Hub |
FORMULA "EHL-148S", 12 x 148 mm, 6-hole, 11-speed HG, 32 holes, thru axle, black |
|
Rims |
RODI "Ready 35", 35-622, 32 holes, disc brake, easy eyelets, black |
|
Spokes |
Niro, black |
|
Exterior Features |
CONWAY Dropout for WME Carbon, BOSCH "Mini Remote", BOSCH "Kiox 300" Display, AXA "New Lock" for PowerTube, BES3 |
|
Weight |
26.30 kg |
