Specification

Details

Model

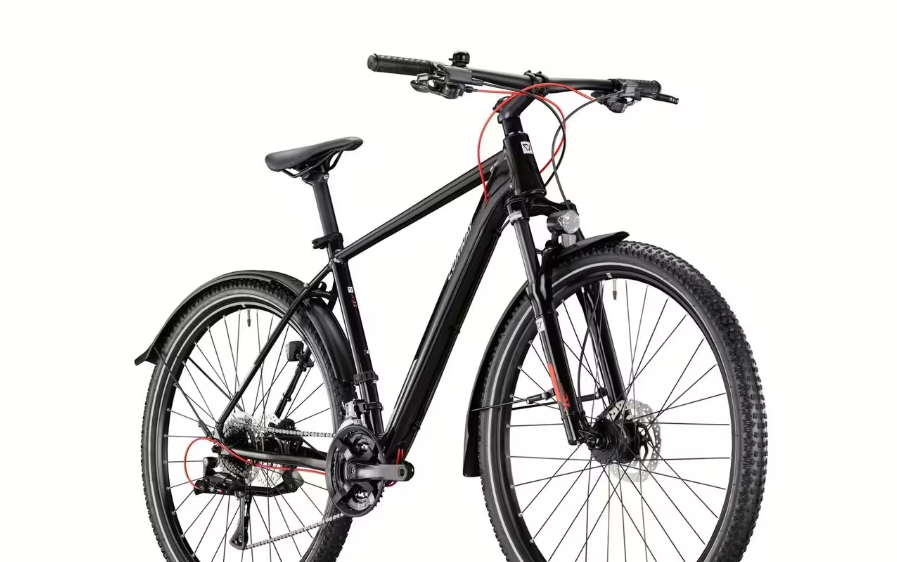

Razz C 4.0 Hardtail

Vehicle Category

Mountain Bike

Application

Trail riding, cross-country, commuting

Starting Price (2025)

€699.95

Color Options

Black Metallic

Sizes

XS (36 cm, 27"), S (41 cm, 29"), M (46 cm, 29"), L (51 cm, 29"), XL (56 cm, 29")

Specification

Details

Frame

Aluminium, Diamond

Fork

RST "Gila ML", 100 mm, 1 1/8"

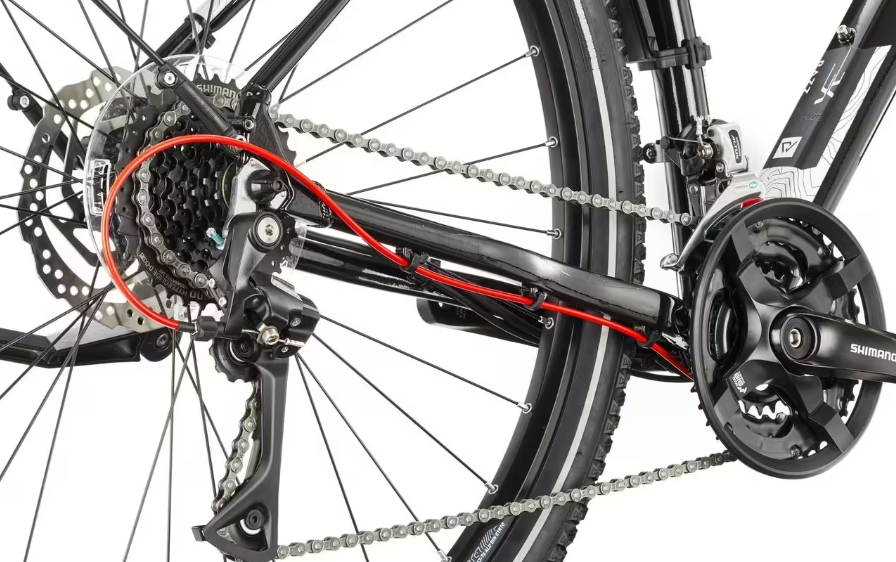

Crank

SHIMANO "Tourney FC-TY301", 170 mm, 24/34/42T

Chain

KMC "Z8", 8-speed

Bottom Bracket

SHIMANO "BB-UN101", Square, BSA, 122.5 mm axle length, 68 mm housing width

Shifters

SHIMANO "Altus SL-M315-L/SL-M315-8R", 3-/8-speed

Front Derailleur

SHIMANO "Altus FD-M313", 3-speed, Down Swing, Dual Pull

Rear Derailleur

SHIMANO "Acera RD-M360"

Specification

Details

Seating

SELLE ROYAL "Vivo", Men's, Athletic, black

Wheels/Tyres

27" IMPAC "Smartpac" (front, 54-584, TwinSkin, 24 TPI, Reflex), IMPAC "Smartpac" (rear, 54-584, TwinSkin, 24 TPI, Reflex), CONWAY "35 Bar" Rims, Stahl Spokes, SHIMANO "Altus CS-HG31" 11-34T

Wheel Size

27"

Brakes

Hydraulic Disc Brakes, TEKTRO "HD-M275" (160 mm, front and rear)

Brake Levers

TEKTRO "HD-M280"

Handlebar

LEVELNINE, 720 mm, Aluminium, Ø 31.8 mm, rise 0.5 mm, black

Stem

CONWAY, 1 1/8", 31.8 mm handlebar clamp, 50 mm long, angle 7°, black

Grips

CONWAY "Sport", 130 mm, black

Headset

FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, Reduction Cone

Saddle

SELLE ROYAL "Vivo", Men's, Athletic, black

Seatpost

CONWAY, Ø 31.6 mm, 300 mm long, black

Front Hub

SHIMANO "DH-3D37-QR", Center Lock, 32 hole, black

Rear Hub

SHIMANO "FH-TY505", Center Lock, 7-speed HG, 32 holes, QR, black

Rims

CONWAY "35 Bar", 20-584, 32 holes, disc brake, black

Spokes

Stahl, black

Pedals

WELLGO "C280DU"

Exterior Features

CONWAY for MS / MC / ML 27.5", 29" Dropout, SKS "Velo 65 Mountain" Mud Guards, SHIMANO "DH-3D37-QR" Dynamo, HERRMANS "H-Black MR4 Dynamo" Front Light, HERRMANS "H-Trace Mini Dynamo" Tail Light, URSUS "R90 - Mooi Rear" Kickstand
