Specification

Details

Model

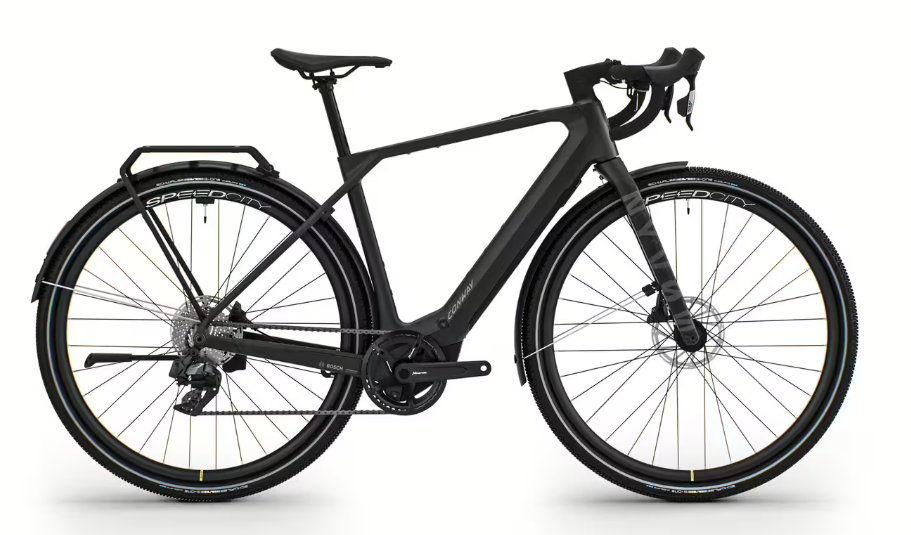

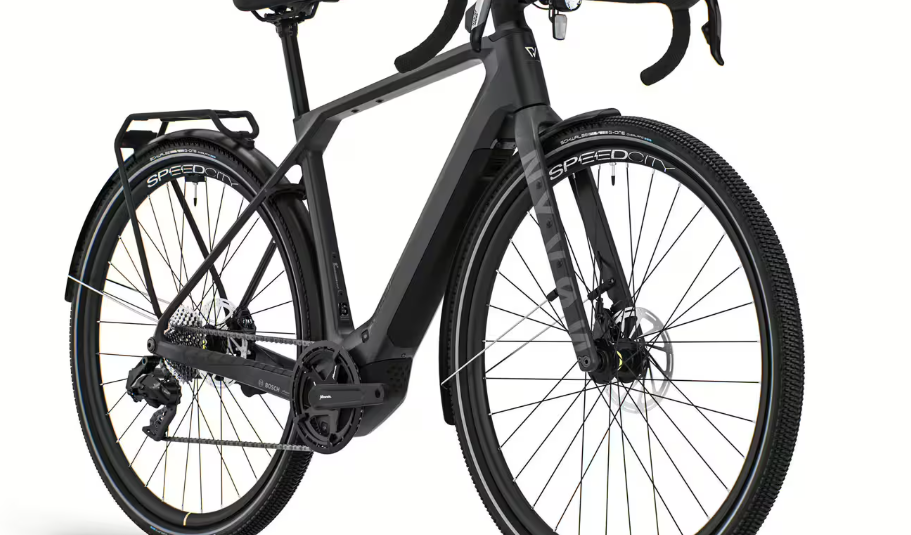

Nyvon 10.0 C Allroad

Vehicle Category

E-Gravel Bike

Application

Gravel riding, commuting, touring

Starting Price (2025)

€4,899.95

Color Options

Black Matt / Reflective

Sizes

S (45 cm, 28"), M (48 cm, 28"), L (51 cm, 28"), XL (54 cm, 28")

Specification

Details

Frame

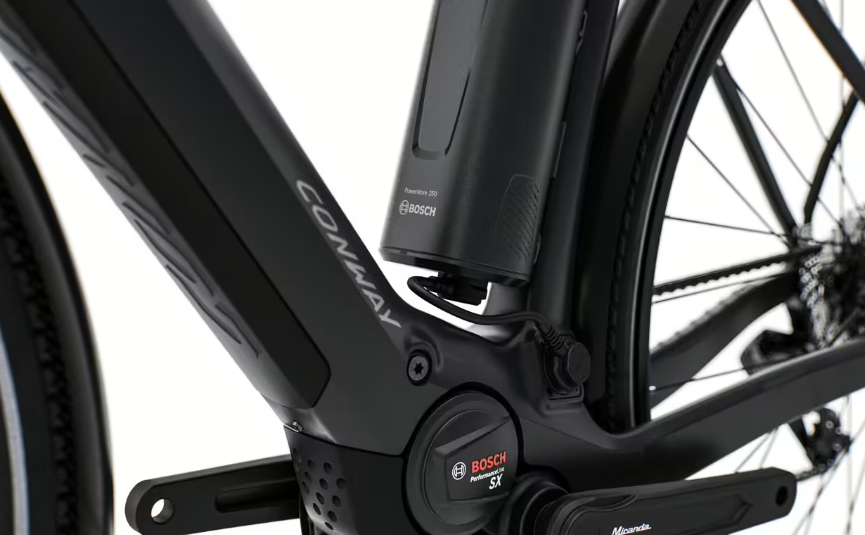

Intube Bosch, Gen. 4, BES3, Carbon, Diamond

Fork

28" Carbon, Tapered 1 1/8" - 1.5", Flat Mount

Crank

MIRANDA "Omega", 165 mm, for Bosch Gen. 4, ISIS, Q: 8, black, MIRANDA 42T

Chain

SRAM "Apex"

Bottom Bracket

BOSCH

Shifters

SRAM "Apex AXS"

Rear Derailleur

SRAM "Apex XPLR AXS"

Specification

Details

Seating

SELLE ROYAL "SRX", Athletic, black

Fuel Type

Electric (Lithium-Ion Battery)

Cargo Capacity

ATRANVELO "Urban Lite", Aluminium, AVS-System, black

Wheels/Tyres

28" SCHWALBE "G-One Overland 365" (front, 50-622, RaceGuard, Addix 4Season, E-25, reflex), SCHWALBE "G-One Overland 365" (rear, 50-622, RaceGuard, Addix 4Season, E-25, reflex), MAVIC Rims, MAVIC Spokes, SRAM "PG-1231" 11-44T

Wheel Size

28"

Brakes

Hydraulic Disc Brakes, SRAM "Apex AXS" (160 mm, front and rear)

Brake Levers

SRAM "Apex AXS"

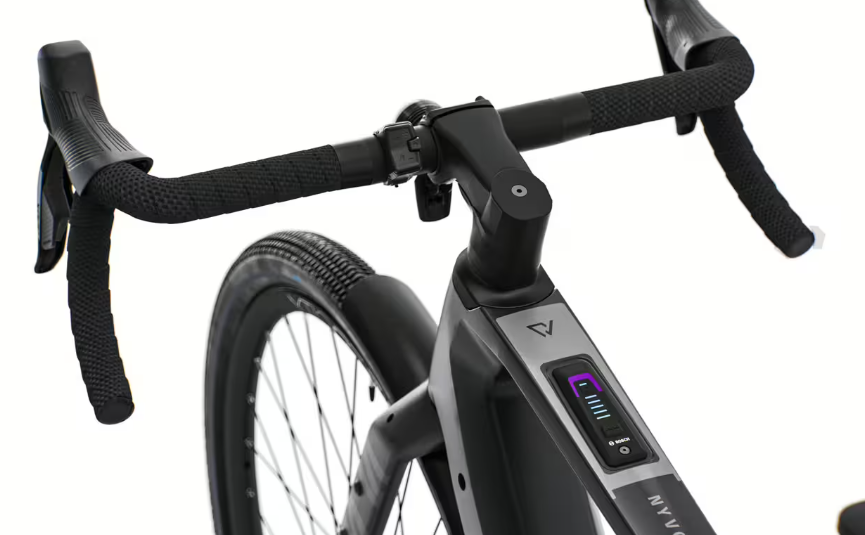

Handlebar

SATORI "X-Race Aero", 400 mm, Aluminium, Ø 31.8 mm, Reach 70 mm, Drop 122 mm, Flare 16°, black

Stem

Satori "New Viper", 1 1/8", 31.8 mm handlebar clamp, 90 mm long, Angle -7°, ICR, black

Grips

FIZIK "Tempo Microtex Bondcush Soft", black

Headset

ACROS IS52/28.6 / IS52/39.8, ICR

Saddle

SELLE ROYAL "SRX", Athletic, black

Seatpost

Satori "Trident OF", Ø 27.2 mm, 350 mm long, black

Front Hub

MAVIC "E-Speedcity 1 CL", 12 x 100 mm

Rear Hub

MAVIC "E-Speedcity 1 CL", 12 x 142 mm

Rims

MAVIC

Spokes

MAVIC

Pedals

VP COMPONENTS "VPE-527"

Exterior Features

SRAM "UDH" Dropout, BOSCH "Mini Remote", BOSCH "BRC3100" System Interface, ABUS "XPlus" Battery Lock, CURANA "C-Lite 60" Mud Guards, ATRANVELO "Urban Lite" Carrier, SUPERNOVA "Mini 2" Front Light (100 Lux, 235 Lumen), BUSCH & MÜLLER "ILU Senior" Tail Light integrated in fender

Weight

16.40 kg
