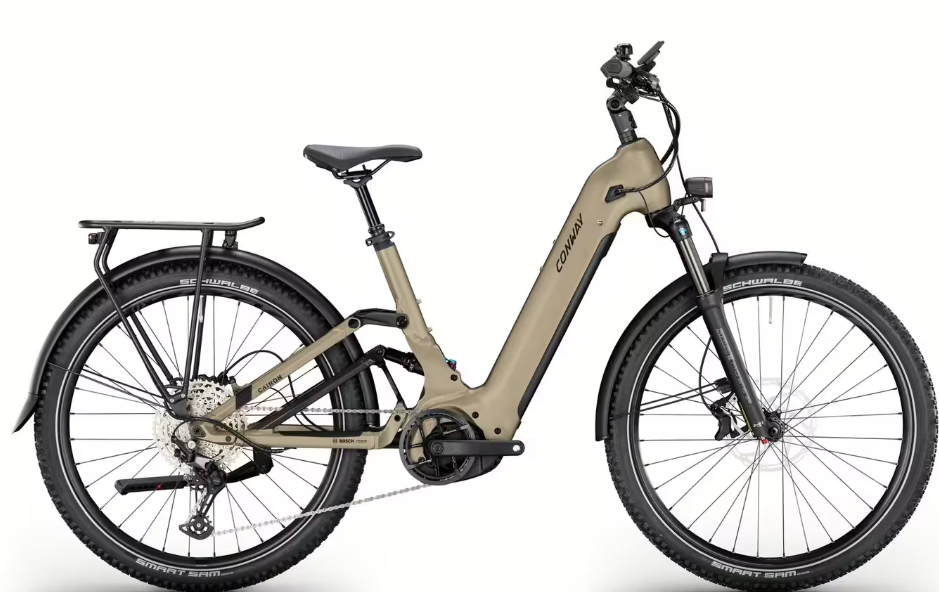

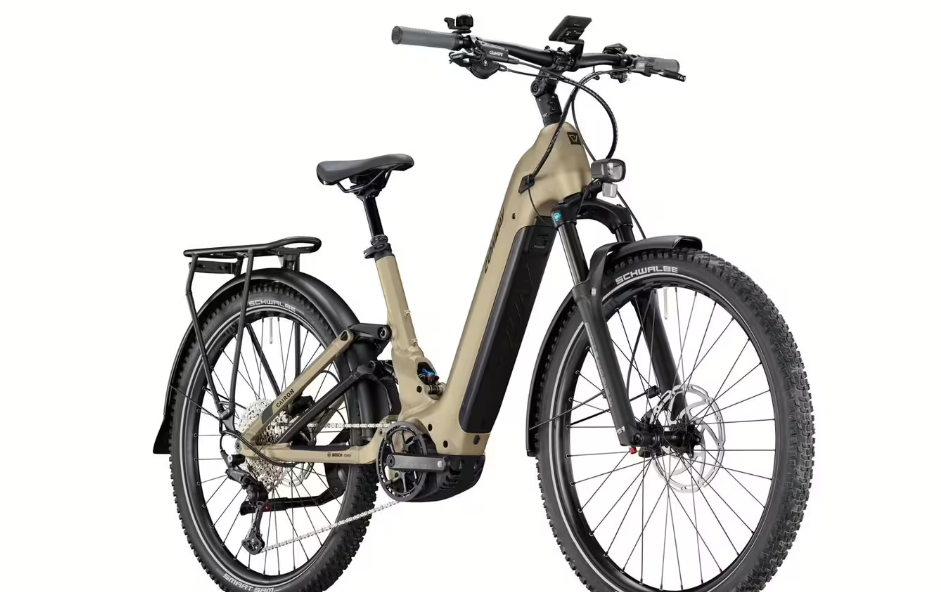

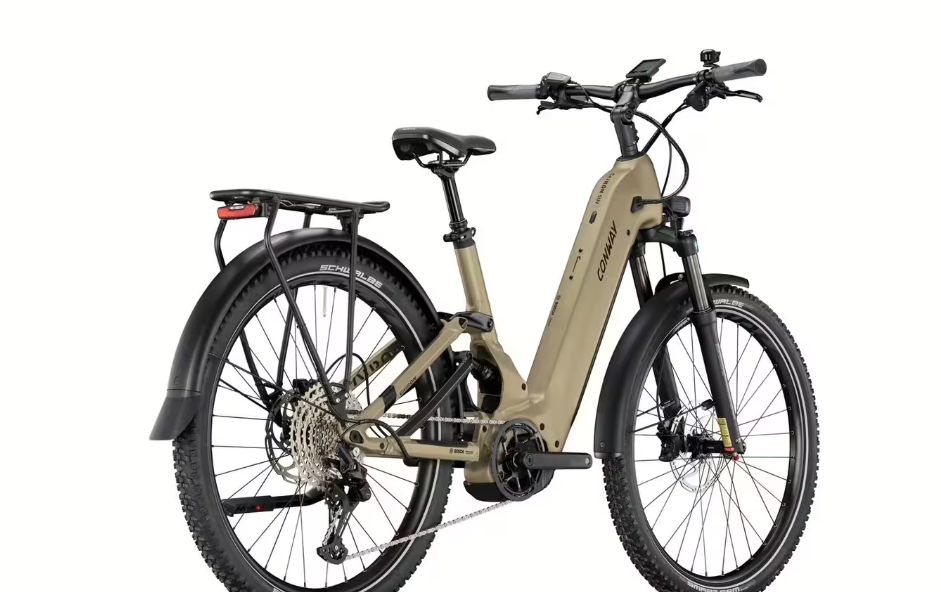

2025 Conway Cairon SUV FS 4.0 Wave – E-SUV Bike
Specifications
|
Specification |
Details |
|
Model |
Cairon SUV FS 4.0 Wave |
|
Vehicle Category |
E-SUV Bike |
|
Application |
Trail riding, touring, commuting |
|
Starting Price (2025) |
€4,599.95 |
|
Color Options |
Lightblue |
|
Sizes |
S (42 cm), M (46 cm), L (50 cm), XL (54 cm) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Intube Bosch, Gen. 4, BES3, Aluminium, Wave, Full Suspension |
|
Fork |
FOX "Float AWL", 120 mm, Tapered, 15 x 110 mm Thru Axle, 44 mm offset |
|
Rear Shock |
FOX "Float DPS", 165 mm x 38 mm |
|
Crank |
MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black, 36T MIRANDA |
|
Chain |
SHIMANO "Deore CN-M6100" |
|
Bottom Bracket |
BOSCH |
|
Shifters |
SHIMANO "Deore SL-M6100" |
|
Rear Derailleur |
SHIMANO "Deore RD-M6100", long cage |
Components & Features
|
Specification |
Details |
|
Seating |
SELLE ROYAL "Vivo", ladies, Athletic, black |
|
Fuel Type |
Electric (Lithium-Ion Battery) |
|
Cargo Capacity |
ATRANVELO "Maxi", Aluminium, AVS- und AVS+ System, inkl. Federklappe, F-Fix, black |
|
Wheels/Tyres |
27" SCHWALBE "Smart Sam" Active Line (front, 60-584, SBC, 50 TPI, Reflex), SCHWALBE "Smart Sam" Active Line (rear, 60-584, SBC, 50 TPI, Reflex), RODI "Tryp 30" Rims, MACH 1 "PRO" Spokes, SHIMANO "Deore CS-M6100" 10-51T |
|
Wheel Size |
27" |
|
Brakes |
Hydraulic Disc Brakes, TEKTRO "HD-M530" (203 mm front, 180 mm rear, 4/2-piston, 6-hole/Center Lock) |
|
Brake Levers |
TEKTRO "HD-M530" |
|
Handlebar |
LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°, black |
|
Stem |
LEVELNINE "Adjustable", 1 1/8", 31.8 mm handlebar clamp, 65 mm long, black |
|
Grips |
CONTEC "MERGE Mountain Comfort", 140 mm, G-Link, black/gray |
|
Headset |
ACROS ZS56/28.6/OD62 / ZS56/40, 150° blocklock |
|
Saddle |
SELLE ROYAL "Vivo", ladies, Athletic, black |
|
Seatpost |
LIMOTEC "D1", Ø 31.6 mm, 265 mm long, 75 mm adjustment range, black sandblasted |
|
Front Hub |
SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle |
|
Rear Hub |
SHIMANO "FH-TC500", 12 x 142 mm, Center Lock, 12-speed Micro Spline, 32 hole, Thru Axle, black |
|
Rims |
RODI "Tryp 30", 32 hole, eyeleted, Tubeless Ready |
|
Spokes |
MACH 1 "PRO" |
|
Pedals |
VP COMPONENTS "VPE-527" |
|
Exterior Features |
CONWAY Dropout for WME Carbon, BOSCH "LED Remote", BOSCH "Intuvia 100" Display, AXA "New Lock" for PowerTube, BES3, CURANA "Apollo 75" Mud Guards, ATRANVELO "Maxi" Carrier, HERRMANS "Nordic MR9" Front Light, AXA "Juno E-Bike" Tail Light with brake light, URSUS "R90 - Mooi Plus" Kickstand |
|
Weight |
28.60 kg |
