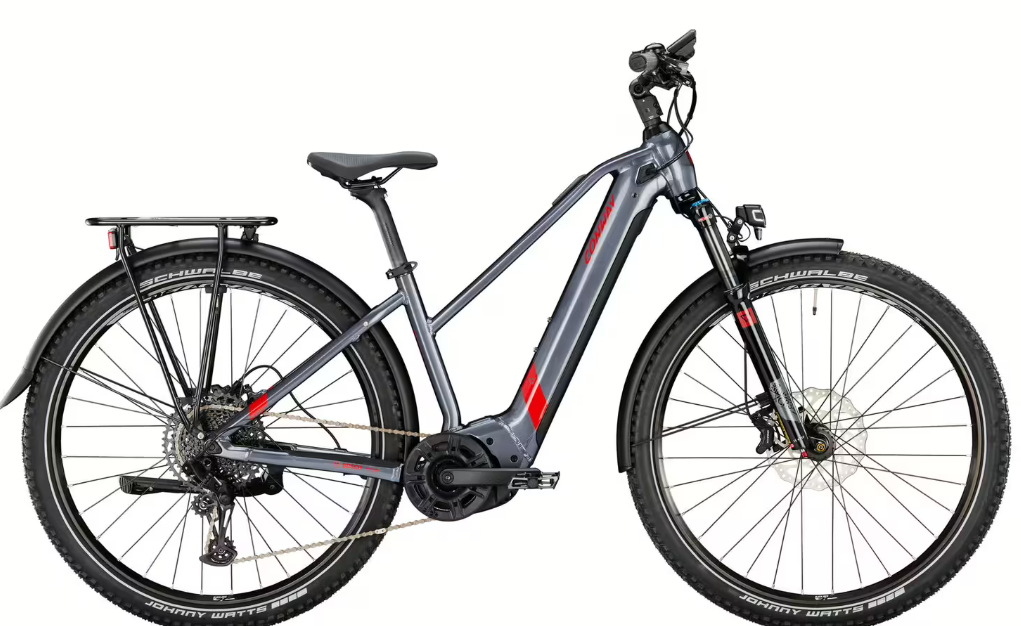

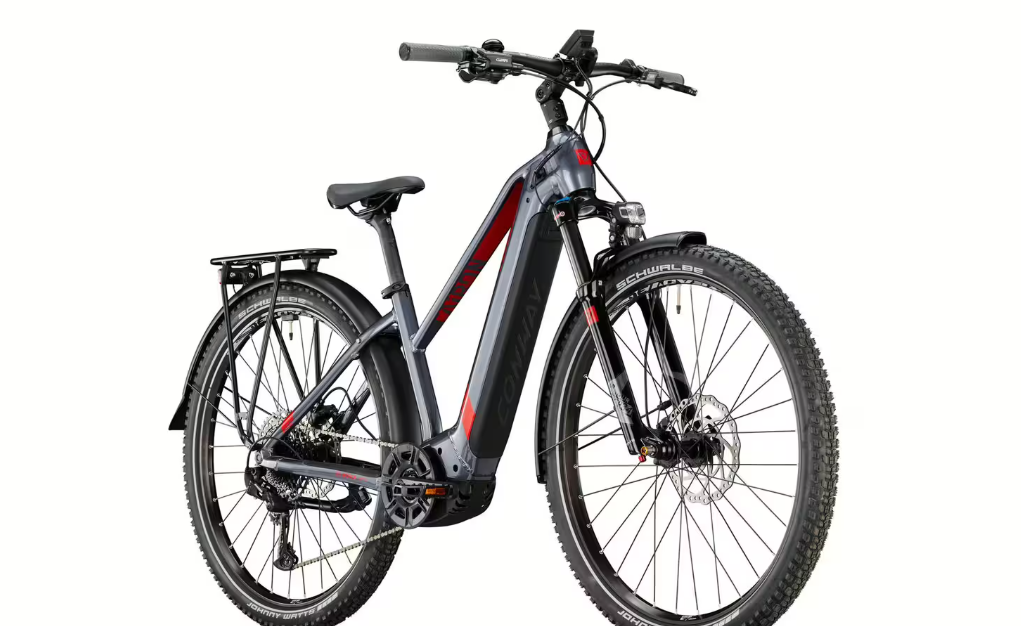

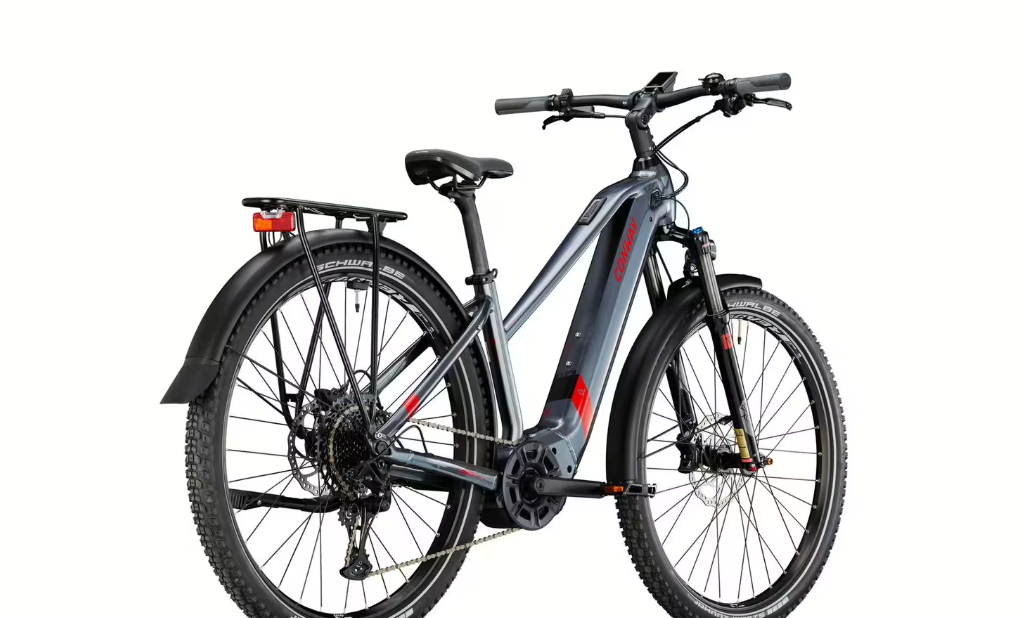

2023 Conway Cairon SUV 5.0 Trapeze – E-SUV Bike
Specifications
|
Specification |
Details |
|
Model |
Cairon SUV 5.0 Trapeze |
|
Vehicle Category |
E-SUV Bike |
|
Application |
Touring, commuting, trail riding |
|
Starting Price (2025) |
€4,199.95 |
|
Color Options |
Shadowgrey Metallic / Red Metallic |
|
Sizes |
S (41 cm), M (45 cm), L (49 cm), XL (53 cm) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Intube Bosch, Gen. 4, BES3, Aluminium, Trapeze |
|
Fork |
SR SUNTOUR "SF19-XCM34-BOOST LOR", 120 mm, Tapered, 15 x 110 mm Thru Axle |
|
Crank |
MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black, 36T SRAM "X-Sync 2 Eagle" |
|
Chain |
SRAM "SX Eagle" |
|
Shifters |
SRAM "SX Eagle" |
|

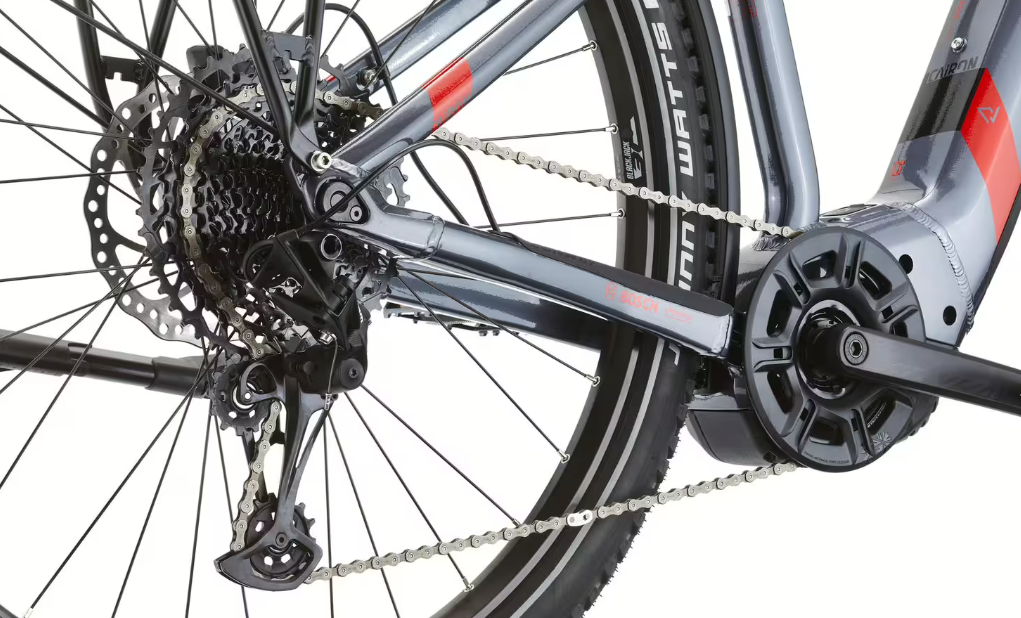

Rear Derailleur |
SRAM "SX Eagle" |
Components & Features
|
Specification |
Details |
|
Seating |
SELLE ROYAL "Vivo", ladies, Athletic, black |
|
Fuel Type |
Electric (Lithium-Ion Battery) |
|
Cargo Capacity |
ATRANVELO "Commute Pro", AVS system, F-Fix, black |
|
Wheels/Tyres |
29" SCHWALBE "Johnny Watts" Performance Line (front, 60-622, DD, Race Guard, Addix, foldable, 67 TPI, E-50, reflex), SCHWALBE "Johnny Watts" Performance Line (rear, 60-622, DD, Race Guard, Addix, foldable, 67 TPI, E-50, reflex), RODI "Ready 30" Rims, Niro Spokes, SRAM "PG-1210" 11-50T |
|
Wheel Size |
29" |
|
Brakes |
Hydraulic Disc Brakes, TEKTRO "HD-M530" (203 mm front, 180 mm rear, 2-piston, 6-hole) |
|

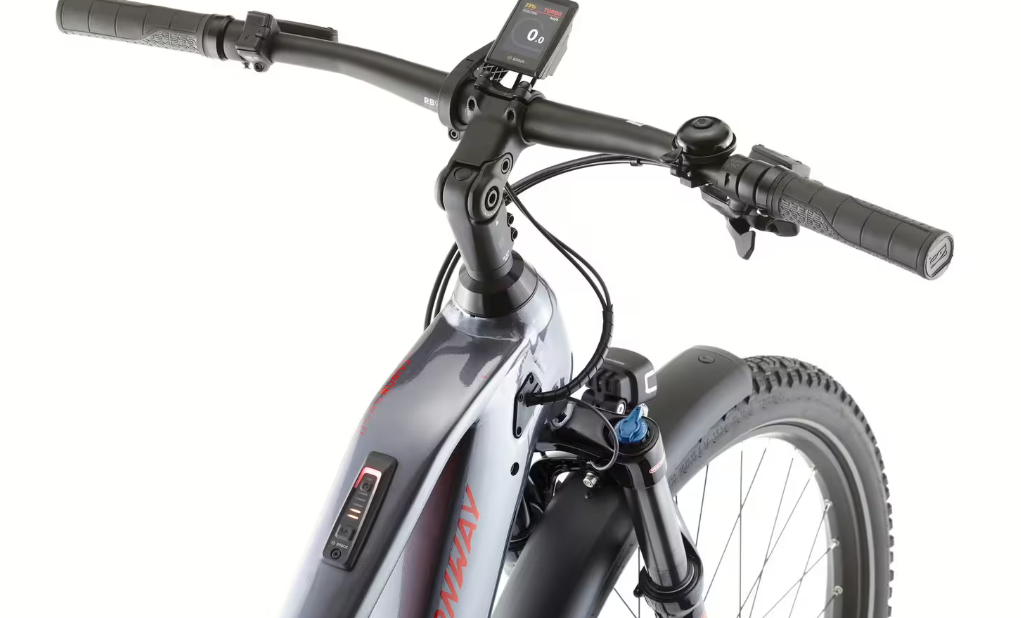

Handlebar |
LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°, black |
|
Stem |
LEVELNINE "Adjustable", 1 1/8", 31.8 mm handlebar clamp, 65 mm long, black |
|
Grips |
CONTEC "MERGE Mountain Straight", 140 mm, G-Link, black/gray |
|
Headset |
GLORY WHEEL "SIT3 Strummer", ZS56/28.6 / ZS56/40 |
|
Saddle |
SELLE ROYAL "Vivo", ladies, Athletic, black |
|
Seatpost |
CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset, black |
|
Front Hub |
FORMULA "DC 511", 15 x 110 mm, 6-hole, 32 holes, thru axle, black |
|
Rear Hub |
FORMULA "EHL-148S", 12 x 148 mm, 6-hole, 11-speed HG, 32 holes, thru axle, black |
|
Rims |
RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black |
|
Spokes |
Niro, black |
|
Pedals |
VP COMPONENTS "VPE-506" |
|
Exterior Features |
CONWAY Dropout for WME Carbon, BOSCH "Mini Remote", BOSCH "Kiox 300" Display, AXA "New Lock" for PowerTube, BES3, CURANA "Apollo 75" Mud Guards, ATRANVELO "Commute Pro" Carrier, CONTEC "DLUX 80 E+" Front Light, CONTEC "TL-335 E-Stop" Tail Light with stop light function, URSUS "R81 - Wave Rear" Kickstand |
|
Weight |
28.40 kg |
