Model

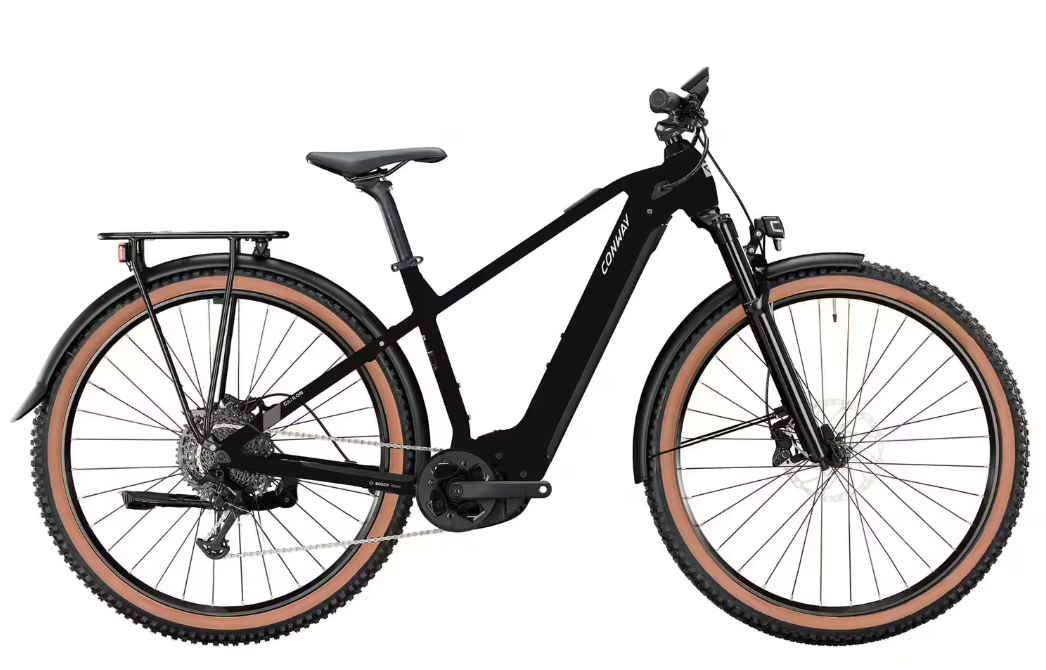

Cairon SUV 4.0 Diamond

Vehicle Category

E-SUV

Application

Versatile off-road adventures

Starting Price (2025)

€3,999.95

Color Options

Black Matt/Silver Matt

Sizes

S (41 cm), M (45 cm), L (49 cm), XL (53 cm), XXL (57 cm)

Frame

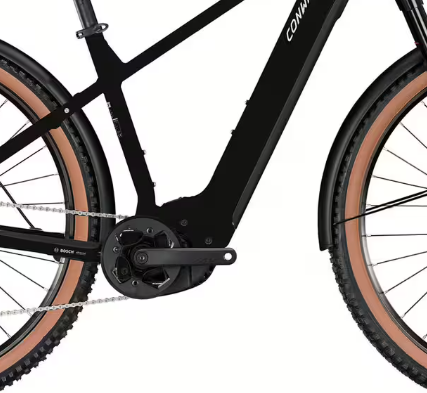

Intube Bosch, Gen. 4, BES3, Aluminium, diamond, 41 cm (S), 45 cm (M), 49 cm (L), 53 cm (XL), 57 cm (XXL)

Fork

SR Suntour SF25-XCR34X-BOOST-AIR-2CR-DS-15LH-11 YS728, 120 mm

Crank

Miranda, 36T

Chain

Shimano CN-LG500

Bottom Bracket

Bosch

Shifters

Shimano Deore SL-M5130

Rear Derailleur

Shimano Deore RD-M5130-GS, 10-speed

Seating

SELLE ROYAL Vivo, men's, Athletic, black

Fuel Type

Electric

Wheels/Tyres

Schwalbe Johnny Watts Performance Line, 65-622, DD, Race Guard, Addix, foldable, 67 TPI, E-50, reflex (front); Schwalbe Johnny Watts Performance Line, 65-622, DD, Race Guard, Addix, foldable, 67 TPI, E-50, reflex (rear)

Wheel Size

29"

Brakes

Hydraulic disc brakes

Brake Levers

Magura MT Trail

Handlebar

LEVELNINE Low Riser, 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°, black

Stem

LEVELNINE Adjustable, 1 1/8", 31.8 mm handlebar clamp, 65 mm, black

Headset

GLORY WHEEL SIT3 Strummer, ZS56/28.6 / ZS56/40

Saddle

SELLE ROYAL Vivo, men's, Athletic, black

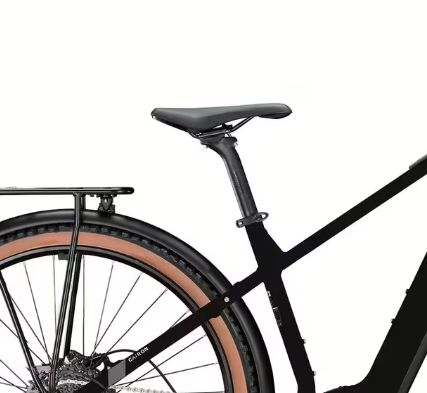

Seatpost

LIMOTEC Variosattelstütze D1, Ø 31.6 mm, 395 mm, 125 mm adjustment range, black sandblasted

Grips

SQLAB 70X, size S, 135 mm, black

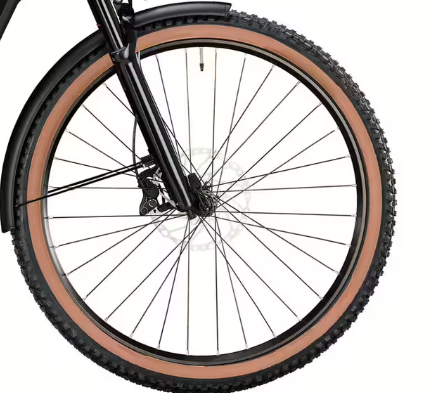

Front Hub

SHIMANO Altus HB-MT400-B, 15 x 110 mm

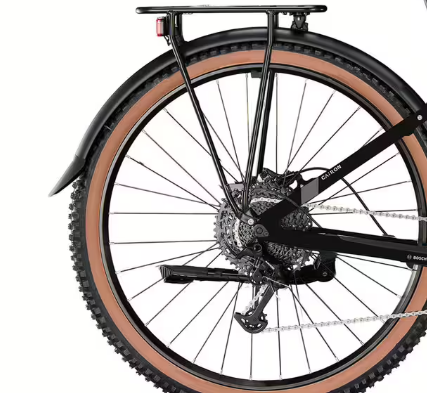

Rear Hub

SHIMANO Alivio FH-MT400-B, 12 x 148 mm

Rims

RODI Tryp 30, 32 holes, tubeless ready

Spokes

Niro

Pedals

VP COMPONENTS VPE-527

Exterior Features

Bluetooth System Controller embedded in top tube, AXA New Lock for PowerTube, BIS approved 10 pcs reflectors, CURANA Apollo 75 mud guards, ATRANVELO Commute Pro carrier, LUPINE SL Nano F front light, CONTEC TL-335 E-Stop tail light, URSUS R81 Wave Rear kickstand
