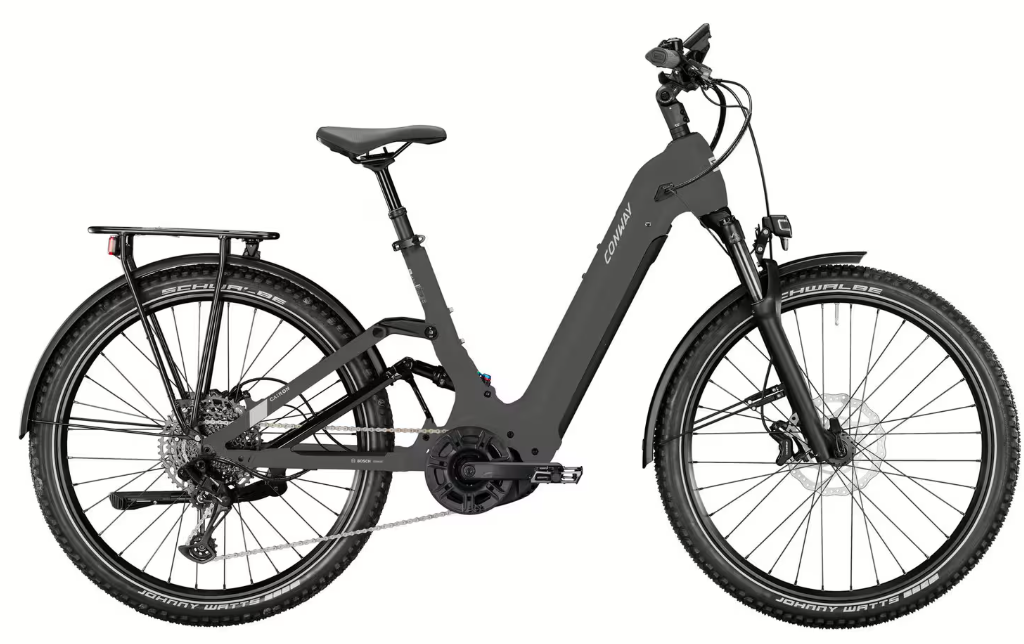

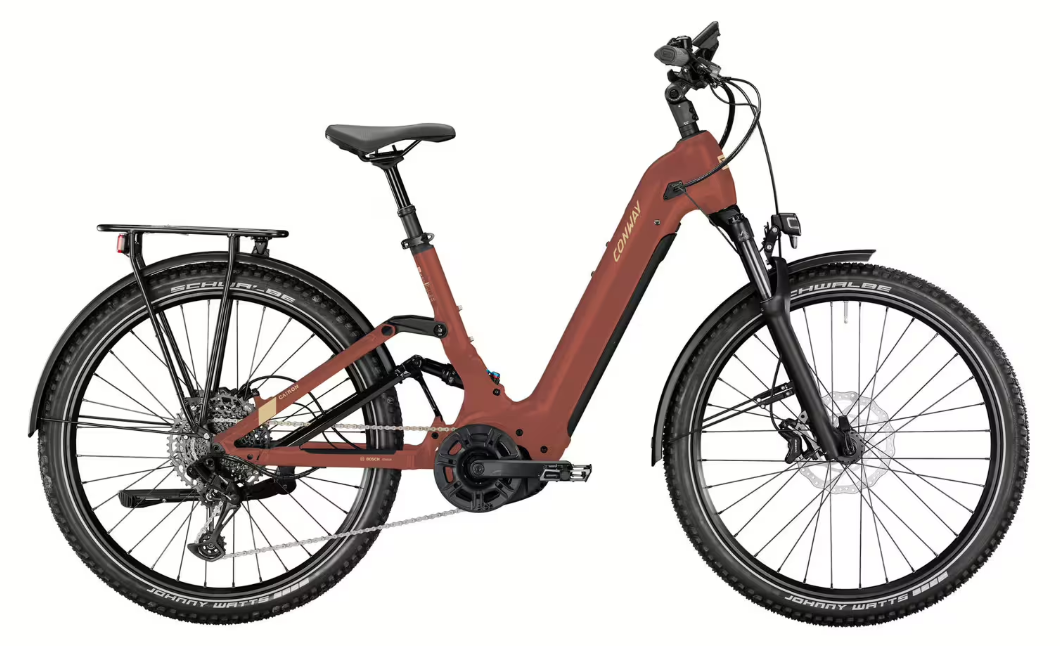

2025 Conway Cairon C FS 2.0 Wave – E-SUV Bike
Specifications
|
Specification |
Details |
|
Model |
Cairon C FS 2.0 Wave |
|
Vehicle Category |
E-SUV Bike |
|
Application |
Trail riding, touring, commuting |
|
Starting Price (2025) |
€4,199.95 |
|
Color Options |
Graphit Grey Matt |
|
Sizes |
S (42 cm), M (46 cm), L (50 cm), XL (54 cm) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Intube Bosch, Gen. 4, BES3, Aluminium, Wave, Full Suspension |
|
Fork |
SR SUNTOUR "SF19-XCM34-BOOST LOR DS", 120 mm, Tapered, 15 x 110 mm Thru Axle |
|
Rear Shock |
FOX "Float DPS", 165 mm x 38 mm |
|
Crank |
MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black, 36T MIRANDA |
|
Chain |
SHIMANO "CN-LG500" |
|
Bottom Bracket |
BOSCH |
|
Shifters |
SHIMANO "Cues SL-U4010" |
|
Rear Derailleur |
SHIMANO "Cues RD-U4000" |
Components & Features
|
Specification |
Details |
|
Seating |
SELLE ROYAL "Vivo", ladies, Athletic, black |
|
Fuel Type |
Electric (Lithium-Ion Battery) |
|
Cargo Capacity |
ATRANVELO "Maxi", Aluminium, AVS- und AVS+ System, inkl. Federklappe, F-Fix, black |
|
Wheels/Tyres |
27" SCHWALBE "Smart Sam" Active Line (front, 60-584, SBC, 50 TPI, Reflex), SCHWALBE "Smart Sam" Active Line (rear, 60-584, SBC, 50 TPI, Reflex), RODI "Tryp 30" Rims, MACH 1 "PRO" Spokes, SHIMANO "Cues CS-LG300" LINKGLIDE 11-46T |
|
Wheel Size |
27" |
|
Brakes |
Hydraulic Disc Brakes, SHIMANO "BR-MT200" (180 mm, front and rear, Center Lock) |
|
Brake Levers |
SHIMANO "BL-MT200" |
|
Handlebar |
LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°, black |
|
Stem |
LEVELNINE "Adjustable", 1 1/8", 31.8 mm handlebar clamp, 65 mm long, black |
|
Grips |
CONTEC "MERGE Mountain Comfort", 140 mm, G-Link, black/gray |
|
Headset |
ACROS ZS56/28.6/OD62 / ZS56/40, 150° blocklock |
|
Saddle |
SELLE ROYAL "Vivo", ladies, Athletic, black |
|
Seatpost |
LIMOTEC "DL1", Ø 30.9 mm, 295 mm long, 75 mm adjustment range, black sandblasted |
|
Front Hub |
SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle |
|
Rear Hub |
SHIMANO "FH-TC500-HM", 12 x 142 mm, Center Lock, 8/9/10/11-speed HG, 32 hole, Thru Axle, black |
|
Rims |
RODI "Tryp 30", 32 hole, eyeleted, Tubeless Ready |
|
Spokes |
MACH 1 "PRO" |
|
Pedals |
VP COMPONENTS "VPE-527" |
|
Exterior Features |
CONWAY Dropout for WME Carbon, BOSCH "LED Remote", BOSCH "Intuvia 100" Display, AXA "New Lock" for PowerTube, BES3, CURANA "Apollo 75" Mud Guards, ATRANVELO "Maxi" Carrier, HERRMANS "Nordic MR5" Front Light, AXA "Juno E-Bike" Tail Light with brake light, URSUS "R90 - Mooi Plus" Kickstand |
|
Weight |
28.90 kg |
