Specification

Details

Model

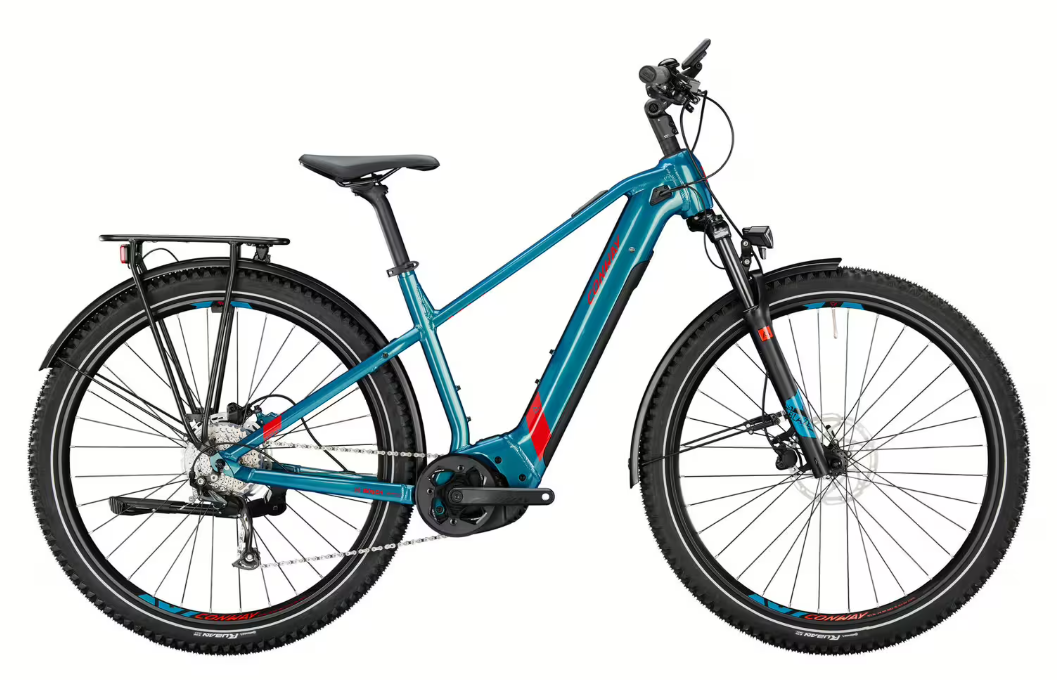

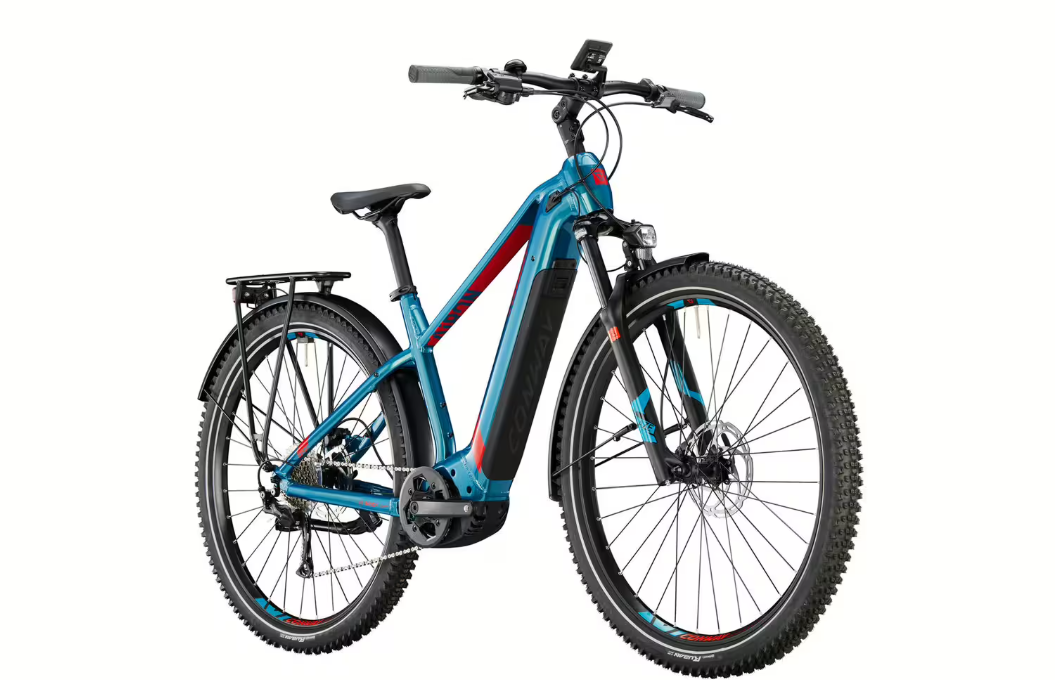

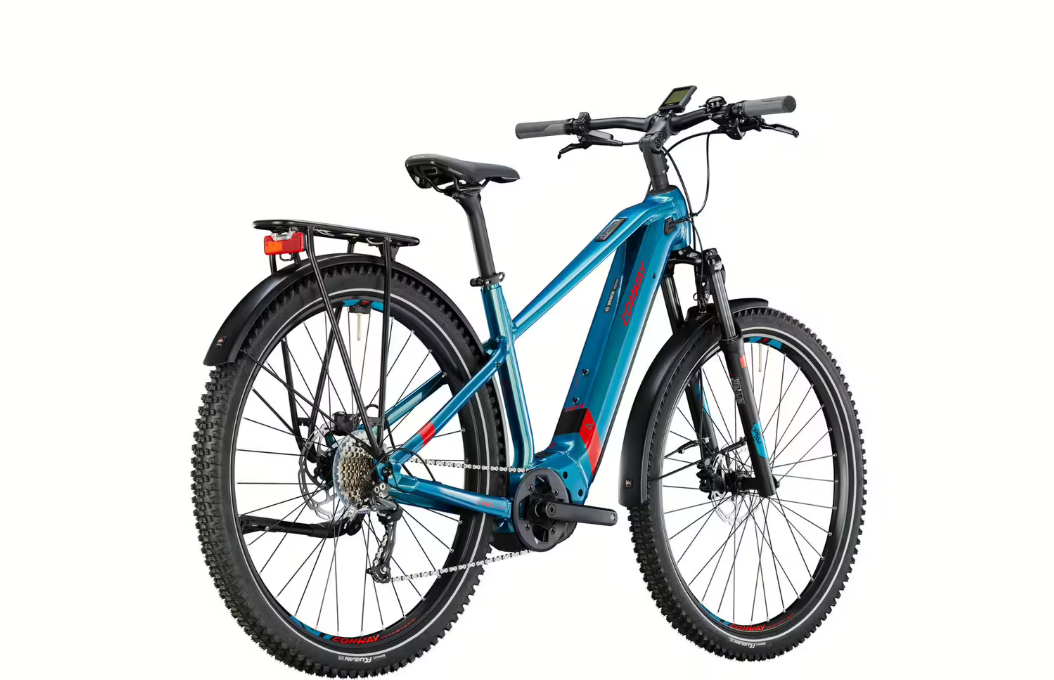

Cairon C 2.0 500 Diamond

Vehicle Category

E-SUV Bike

Application

Touring, commuting, trail riding

Starting Price (2025)

€3,299.95

Color Options

Darkpetrol Metallic / Red

Sizes

S (41 cm, 27.5"), M (45 cm, 29"), L (49 cm, 29"), XL (53 cm, 29"), XXL (57 cm, 29")

Specification

Details

Frame

Intube Bosch, Gen. 4, BES3, Aluminium, Diamond

Fork

RST "Blaze ML", 120 mm, Tapered

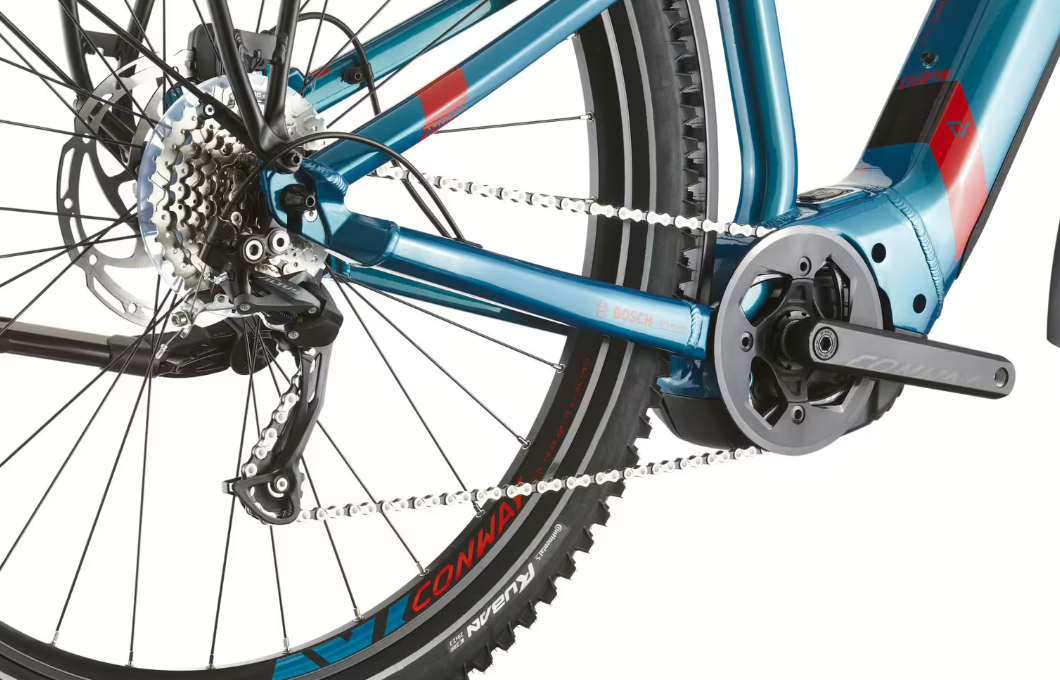

Crank

MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black, 36T MIRANDA

Chain

SHIMANO "CN-HG53"

Bottom Bracket

BOSCH

Shifters

TEKTRO "SL-M350R"

Rear Derailleur

TEKTRO "RD-M350"

Specification

Details

Seating

SELLE ROYAL "Vivo", men's, Athletic, black

Fuel Type

Electric (Lithium-Ion Battery)

Cargo Capacity

ATRANVELO "Commute Pro", AVS system, F-Fix, black

Wheels/Tyres

27.5" (S), 29" (M, L, XL, XXL) CONTINENTAL "Ruban" (front, 58-584, reflex), CONTINENTAL "Ruban" (rear, 58-584, reflex), RODI "Ready 30" Rims, Niro Spokes, TEKTRO "CS-M350-9" 11-46T

Wheel Size

27.5" (S), 29" (M, L, XL, XXL)

Brakes

Hydraulic Disc Brakes, TEKTRO "HD-M280" (front and rear, 180 mm, 2-piston)

Brake Levers

TEKTRO "HD-M280"

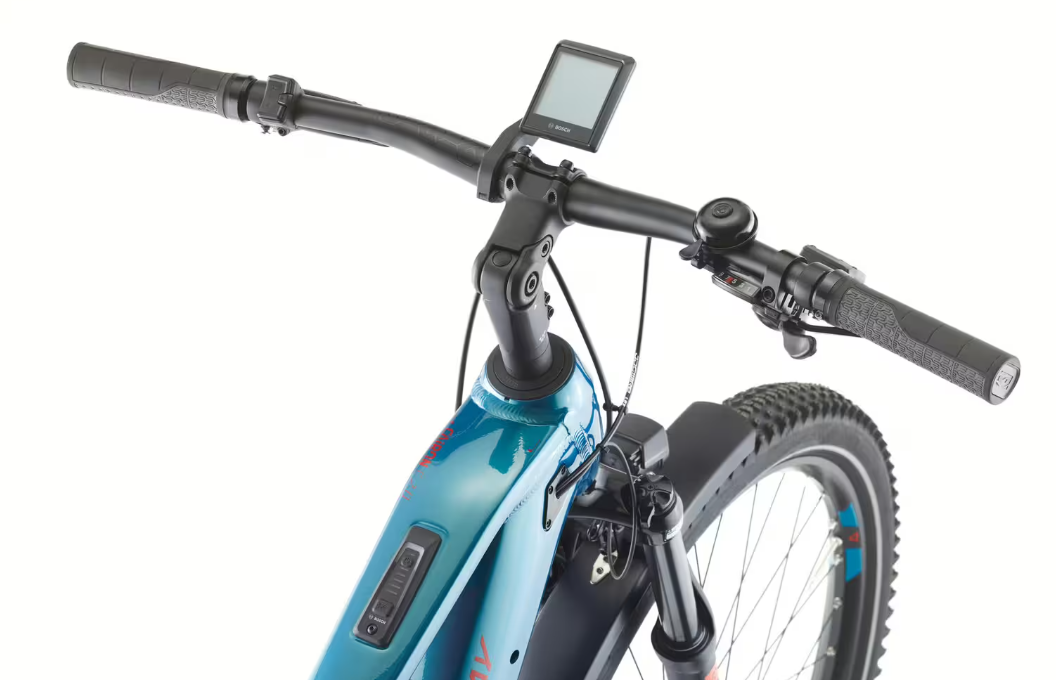

Handlebar

LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°, black

Stem

LEVELNINE "Adjustable", 1 1/8", 31.8 mm handlebar clamp, 65 mm long, black

Grips

CONTEC "MERGE Mountain Straight", 140 mm, G-Link, black/gray

Headset

GLORY WHEEL "SIT3 Strummer", ZS56/28.6 / ZS56/40

Saddle

SELLE ROYAL "Vivo", men's, Athletic, black

Seatpost

CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset, black

Front Hub

SHIMANO "Tourney TX HB-TX505", 100 mm, QR

Rear Hub

SHIMANO "Tourney TX FH-TX505", Center Lock, 8-/9-/10-speed HG, 32 holes, QR, black

Rims

RODI "Ready 30", 30-584, 32 holes, disc brake, easy eyelets, black

Spokes

Niro, black

Pedals

VP COMPONENTS "VPE-506"

Exterior Features

CONWAY "V2" Dropout for Cairon QR, BOSCH "Mini Remote", BOSCH "Intuvia 100" Display, AXA "New Lock" for PowerTube, BES3, SKS "A 65 R" Mud Guards, ATRANVELO "Commute Pro" Carrier, CONTEC "DLUX 50 E+" Front Light, CONTEC "TL-335 E" Tail Light

Weight

25.90 kg
