Specification

Details

Model

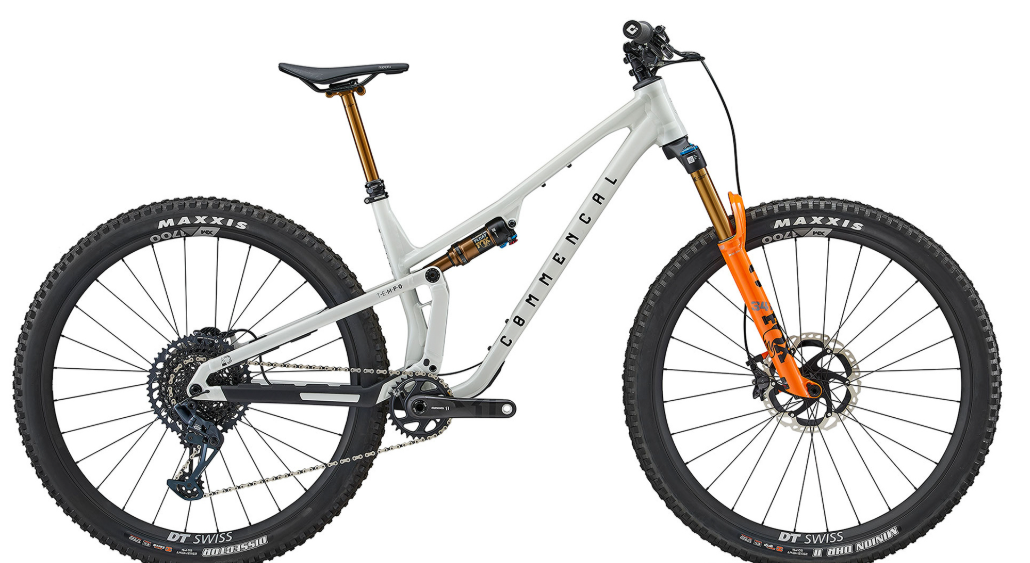

T.E.M.P.O. Signature Clear Silver

Vehicle Category

Trail Bike

Application

Trail riding, training

Starting Price (2025)

$4,500.00

Color Options

Clear Silver

Sizes

M (5'6" - 5'11"), L (5'10" - 6'3")

Specification

Details

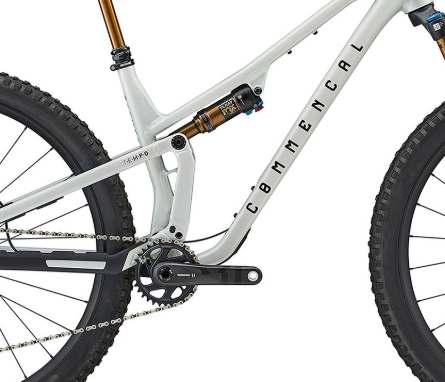

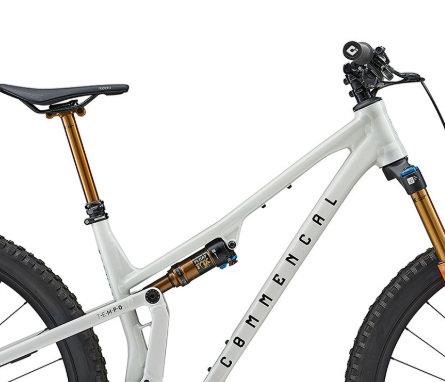

Frame

T.E.M.P.O., 125 mm travel, 29'', Alloy 6069, triple butted tubes, T4, T6, Enduro bearings

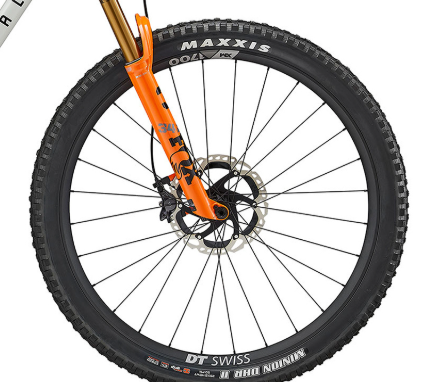

Fork

FOX 34 Factory, 140 mm, 29", Float, Grip 2 damper, HSR/LSR, HSC/LSC, Boost (15 x 110 mm), 51 mm offset, 1 spacer

Rear Shock

FOX FLOAT FACTORY, 210 x 50 mm, DPS damper, rebound, 3 positions compression, Evol LV, 0.2 spacer

Crank

SRAM X1 Carbon Eagle, 170 mm, DUB, crank boots

Chain

SRAM GX Eagle, 12s

Bottom Bracket

SRAM DUB Wide, Pressfit

Shifters

SRAM GX Eagle, 12s

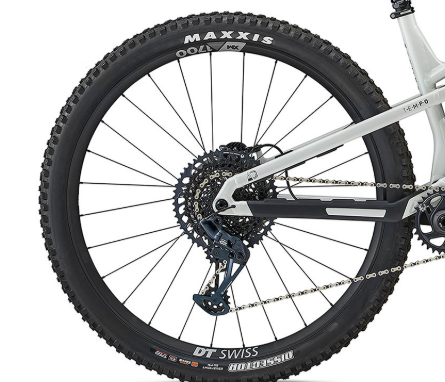

Rear Derailleur

SRAM GX Eagle, 12s

Specification

Details

Seating

FIZIK Terra Ridon X5, 145 mm width, S-alloy rails

Wheels/Tyres

29" MAXXIS Dissector (rear, 29x2.40 WT, 3C MaxxTerra, EXO, Tubeless Ready), MAXXIS DHR II (front, 29x2.40 WT, 3C MaxxGrip, EXO, Tubeless Ready), DT SWISS XM 1700 Rims, SRAM XG 1275 Eagle 10-52t

Wheel Size

29"

Brakes

Hydraulic Disc Brakes, SHIMANO XT 2-piston (203 mm front, 180 mm rear)

Brake Levers

SHIMANO XT, I-Spec EV

Handlebar

RENTHAL Fatbar Lite 760 on S/M, RENTHAL Fatbar 800 on L/XL, 31.8 mm, 30 mm rise, Alloy 6061

Stem

RENTHAL Apex, 40 mm extension, 31.8 mm

Grips

ODI Longneck, Soft compound, single clamp, black

Headset

ACROS ZS56 / ZS56, Alloy cups, sealed bearings, Integrated cable routing

Saddle

FIZIK Terra Ridon X5, 145 mm width, S-alloy rails

Seatpost

FOX Transfer Factory, 31.6 mm, travel: 150 mm on S, 175 mm on M, 200 mm on L/XL

Front Hub

DT SWISS 350, 28h, sealed bearings

Rear Hub

DT SWISS 350, 28h, sealed bearings, Ratchet System 36t, Sram XD freehub body

Rims

DT SWISS XM 1700, 29'', 30 mm inner width

Spokes

DT SWISS Competition, Straightpull, 2.0-1.8-2.0 mm, double butted, stainless, with ProLock, black

Exterior Features

Down tube protector, chainstay protector, seatstay protector

Weight

14 kg (S)
