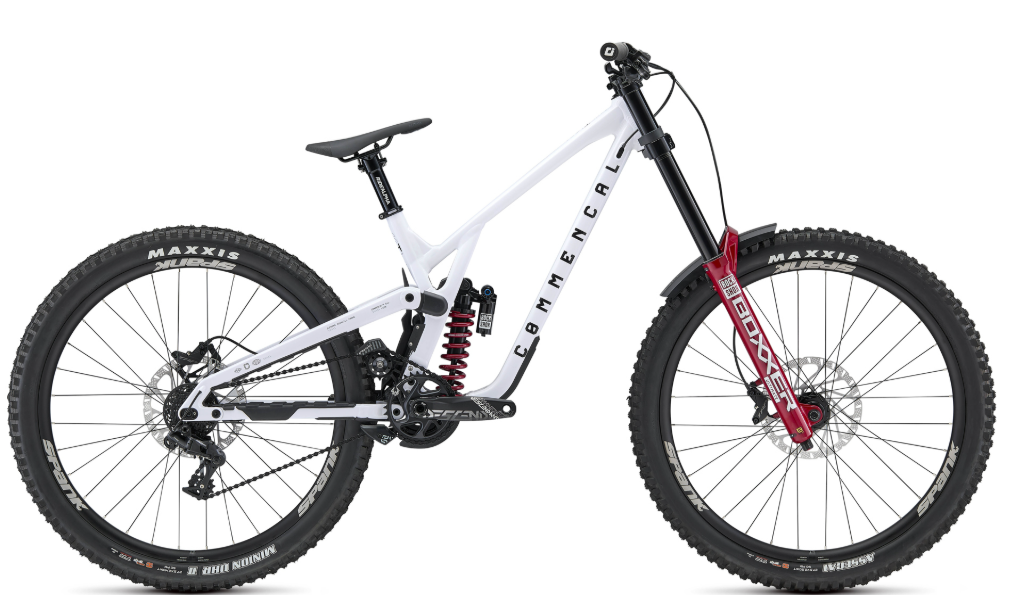

2026 Commencal Supreme DH V5 XS Pure White – Kids & Youth Bike
Specifications
|
Specification |
Details |
|
Model |
Supreme DH V5 XS Pure White |
|
Vehicle Category |
Kids & Youth Bike |
|
Application |
Youth downhill racing |
|
Starting Price (2025) |
$7,800.00 |
|
Color Options |
Pure White |
|
Sizes |
XS (4'10" - 5'3") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
2025 Supreme DH V5 XS, 220 mm travel, 27.5", Alloy 6066, triple butted tubes, T4, T6, Bolu bearings |
|
Fork |
ROCKSHOX Boxxer Ultimate, 200 mm, 27.5", Charger 3 RC2 damper, DebonAir+, rebound, Boost (20 x 110 mm), 48 mm offset, 0 Token |
|
Rear Shock |
ROCKSHOX Vivid coil ultimate DH, 250 x 75 mm, rebound, DebonAir, 0 token, Spring rate: 350 lbs on XS |
|
Crank |
TRUVATIV Descendant DH, 165 mm, DUB |
|
Chain |
KMC X11EL, Black |
|
Bottom Bracket |
SRAM DUB, 107 Pressfit |
|
Shifters |
SRAM GX DH, 7s |
|
Rear Derailleur |
SRAM GX DH, 7s |
Components & Features
|
Specification |
Details |
|
Seating |
FIZIK Gravita Alpaca X5, S-Alloy rails, Wing Flex |
|
Wheels/Tyres |
27.5" MAXXIS DHR II (rear, 27.5x2.40WT 3C MaxxGrip / Double Down / TR), MAXXIS Assegai (front, 27.5x2.50WT 3C MaxxGrip / Double Down / TR), SPANK Spike Race 33 Rims, SAPIM D-Light Spokes, SRAM GX DH 11-25T |
|
Wheel Size |
27.5" |
|
Brakes |
Hydraulic Disc Brakes, TRP DH-R EVO PRO 4-piston (203 mm, front and rear) |
|
Brake Levers |
TRP DH-R EVO PRO |
|
Handlebar |
RIDE ALPHA R20, 31.8 mm, 740 mm width, 20 mm rise, Alloy 6061 |
|
Stem |
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm |
|
Grips |
ODI Elite Motion, Soft pro compound, single clamp, black |
|
Headset |
ACROS ZS56/ZS56, Alloy cups, sealed bearings |
|
Saddle |
FIZIK Gravita Alpaca X5, S-Alloy rails, Wing Flex |
|
Seatpost |
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075 |
|
Front Hub |
FORMULA DHL-93, 32h, sealed bearings, 20 x 110 mm Boost, black |
|
Rear Hub |
FORMULA DHG-157, 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide |
|
Rims |
SPANK Spike Race 33, 27.5", 28 mm inner width, tubeless ready |
|
Spokes |
SAPIM D-Light, J-Bend, 2.0-1.65-2.0 mm, double butted, stainless, with Nylok, black |
|
Exterior Features |
Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, fork fender |
|
Weight |
16.8 kg (XS) |
