Specification

Details

Model

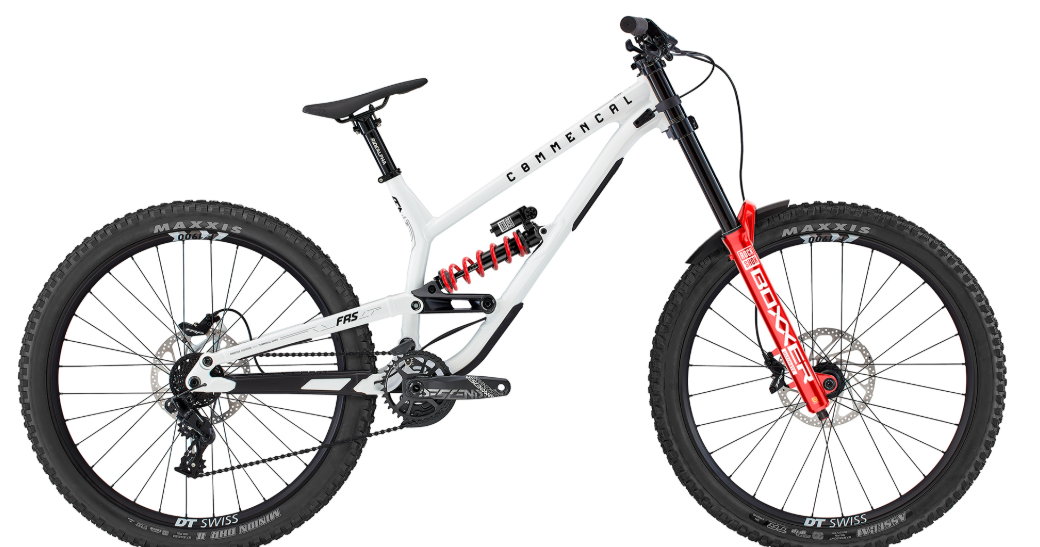

Supreme DH V5 RockShox Pure White

Vehicle Category

Downhill Bike

Application

Downhill racing

Starting Price (2025)

$7,800.00

Color Options

Pure White

Sizes

S (5'2" - 5'7"), M (5'6" - 5'11"), L (5'10" - 6'3"), XL (6'2" - 6'11")

Specification

Details

Frame

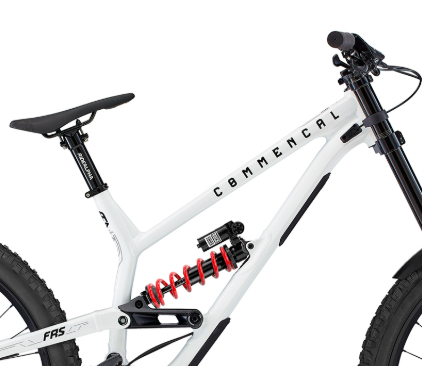

SUPREME DH V5, 220 mm travel, 29/27.5'', Alloy 6066, triple butted tubes, T4, T6

Fork

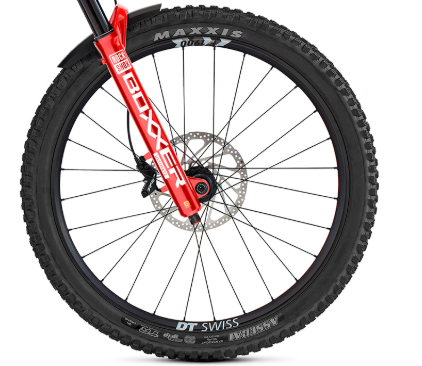

ROCKSHOX Boxxer Ultimate, 200 mm, 29'', Charger 3 damper, HSC, LSC, HSR, LSR, Boost (20 x 110 mm), 52 mm offset

Rear Shock

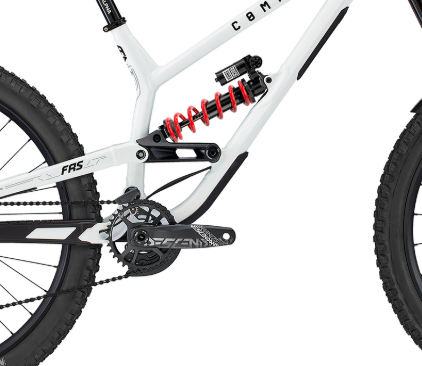

ROCKSHOX Vivid Coil Ultimate DH, 250 x 75 mm, HSC, LSC, LSR, rebound, Spring rates: 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XL

Crank

SRAM Descendant DH, 165 mm, DUB

Chain

SRAM PC-1130, 11s

Bottom Bracket

SRAM DUB, Pressfit

Shifters

SRAM GX DH, 7s

Rear Derailleur

SRAM GX Eagle, 7s

Specification

Details

Seating

FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails, Team edition

Wheels/Tyres

Rear: 27.5'' SCHWALBE Tacky Chan 27.5x2.40 Super DH, Addix Ultra Soft, Tubeless Easy; Front: 29'' SCHWALBE Magic Mary 29x2.40 Super DH, Addix Ultra Soft, Tubeless Easy; DT SWISS F1900 Classic Rims; SRAM PG-720 DH 11-25T

Wheel Size

29'' / 27.5''

Brakes

Hydraulic Disc Brakes, SRAM Maven Bronze 4-piston (220 mm, front and rear)

Brake Levers

SRAM Maven Bronze

Handlebar

RIDE ALPHA, 31.8 mm, 780 mm on S/M/L, 800 mm on XL, rise 27

Stem

RIDE ALPHA DH, 40 mm extension, 31.8 mm

Grips

RIDE ALPHA Mushroom, 132 mm, single clamp, black

Headset

ACROS ZS56/ZS56, Alloy cups, sealed bearings

Saddle

FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails, Team edition

Seatpost

RIDE ALPHA, 31.6 mm, 250 mm

Front Hub

Included with wheelset

Rear Hub

Included with wheelset

Rims

DT SWISS F1900 Classic, Rear: 27.5'', 30 mm inner width; Front: 29'', 30 mm inner width

Spokes

Included with wheelset

Exterior Features

Chainstay protector, seatstay protector, fork bumpers, downtube protector, FOX 40 fender

Weight

18.7 kg (S)
