Specification

Details

Model

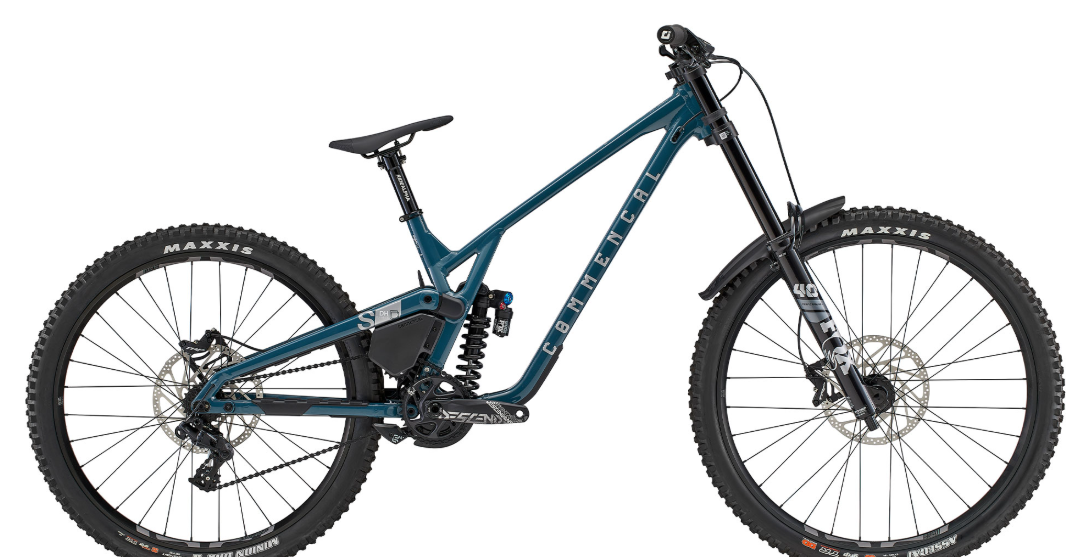

Supreme DH V5 Essential Aqua Blue

Vehicle Category

Downhill Bike

Application

Downhill racing

Starting Price (2025)

$6,300.00

Color Options

Aqua Blue

Sizes

M (5'6" - 5'11")

Specification

Details

Frame

SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL, 27/29'', Alloy 6066, triple butted tubes, T4, T6

Fork

FOX 40 Performance, 203 mm, 29", Grip damper, LSC, Float Evol, Boost (20 x 110 mm), 52 mm offset, 2 spacers

Rear Shock

FOX DHX 2 Performance Elite, 250 x 75 mm, LSC, LSR, Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 500 lbs on XL

Crank

TRUVATIV Descendant DH, 165 mm, DUB

Chain

KMC X11EL, Black

Bottom Bracket

SRAM DUB, Pressfit

Shifters

SRAM GX DH, 7 sp

Rear Derailleur

SRAM GX DH, 7 sp

Specification

Details

Seating

FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails

Wheels/Tyres

Rear: 27.5" MAXXIS DHR II 27.5x2.40 WT, 3C MaxxGrip, DH casing, Tubeless Ready; Front: 29" MAXXIS Assegai 29x2.50 WT, 3C MaxxGrip, DH casing, Tubeless Ready; E13 Grappler Core Alloy DH Rims; E13 DH 7 Speed Integrated Cassette 9-21t

Wheel Size

29" / 27.5"

Brakes

Hydraulic Disc Brakes, TRP DH-R Evo 4-piston (223 mm, front and rear)

Brake Levers

TRP DH-R Evo

Handlebar

RIDE ALPHA R27, 31.8 mm, 780 mm width on S/M/L, 800 mm on XL, 27 mm rise, Alloy 6061

Stem

RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm

Grips

ODI Longneck, Soft pro compound, single clamp, black

Headset

ACROS ZS56 / ZS56, Alloy cups, sealed bearings

Saddle

FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails

Seatpost

RIDE ALPHA Super Light, 31.6 mm, 250 mm length

Front Hub

E13 LG1 PLUS DH

Rear Hub

E13 LG1 PLUS DH

Rims

Rear: E13 Grappler Core Alloy DH, 27.5'', 30 mm inner width; Front: E13 Grappler Core Alloy DH, 29'', 30 mm inner width

Exterior Features

Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, FOX 40 fork fender

Weight

17.5 kg (S)
