Specification

Details

Model

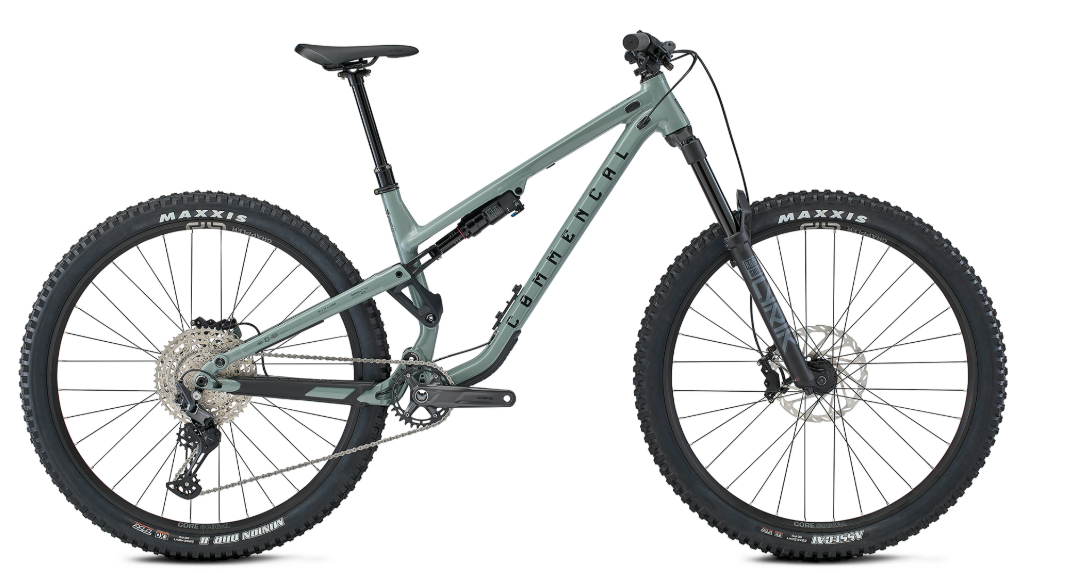

Meta TR V4 Ride Pyrite Grey

Vehicle Category

Trail Bike

Application

Trail riding, climbing, descending

Starting Price (2025)

$2,800.00

Color Options

Pyrite Grey

Sizes

M (5'6" - 5'11")

Specification

Details

Frame

2025 META TR V4, 140 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6, Enduro bearings

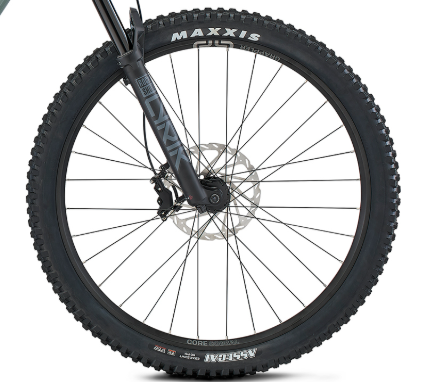

Fork

SRAM Lyrik Base, 160 mm, 29", RC damper, LSR, 15 x 110 mm, 44 mm offset

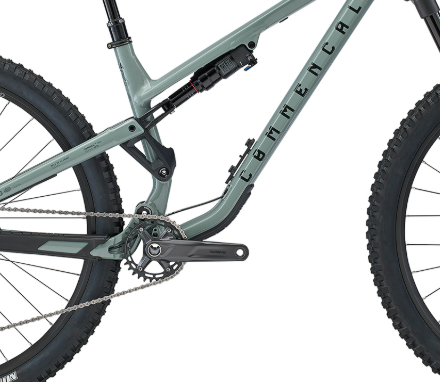

Rear Shock

SRAM Deluxe Select +, 210 x 55 mm, 3-position adjustment, rebound

Crank

SHIMANO MT512, 170 mm

Chain

SHIMANO Deore, 12s

Bottom Bracket

SHIMANO SM-BB-71, Pressfit

Shifters

SHIMANO Deore, 12s

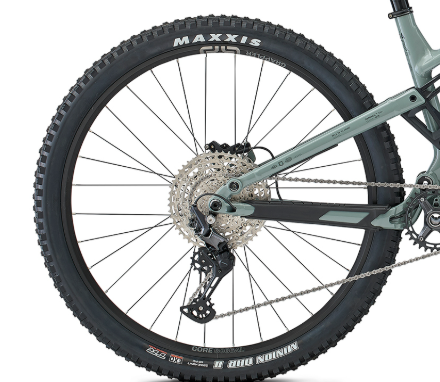

Rear Derailleur

SHIMANO Deore, 12s

Specification

Details

Seating

FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails

Wheels/Tyres

29" MAXXIS DHR II (rear, 29x2.40, EXO, Tubeless Ready), MAXXIS Assegai (front, 29x2.50, EXO, Tubeless Ready), E13 Grappler Core Rims, SHIMANO Deore 10-51t

Wheel Size

29"

Brakes

Hydraulic Disc Brakes, SRAM DB6 4-piston (200 mm, front and rear)

Brake Levers

SRAM DB6, resind pads

Handlebar

RIDE ALPHA R20 760 on S, RIDE ALPHA R27 780 on M/L, RIDE ALPHA R27 800 on XL, 31.8 mm, 20 mm rise on S, 27 mm rise on M/L/XL, Alloy 6061

Stem

RIDE ALPHA Enduro 40, 40 mm extension, 31.8 mm

Grips

RIDE ALPHA Mushroom, 132 mm, single clamp, black

Headset

ACROS ZS44 / ZS56, Alloy cups, sealed bearings

Saddle

FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails

Seatpost

KINDSHOCK 900i, 34.9 mm, travel: 125 mm on S, 170 mm on M, 190 mm on L/XL

Front Hub

FORMULA DC-711, 32h, sealed bearings, 15 x 110 mm, black

Rear Hub

FORMULA MSL-148A, 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline

Rims

E13 Grappler Core, 29'', 30 mm inner width

Spokes

SAPIM Race, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

Exterior Features

Down tube protector, chainstay protector, seatstay protector, FIDLOCK base

Weight

16 kg (S)
