Specification

Details

Model

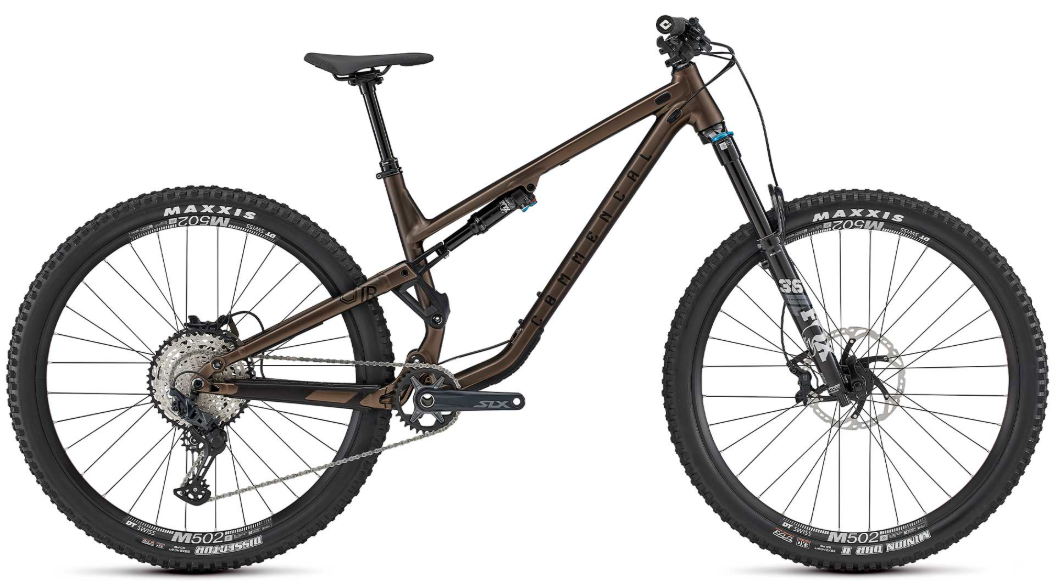

Meta TR V4 Essential Frozen Brown

Vehicle Category

Trail Bike

Application

Trail riding, climbing, descending

Starting Price (2025)

$3,200.00

Color Options

Frozen Brown

Sizes

M (5'6" - 5'11")

Specification

Details

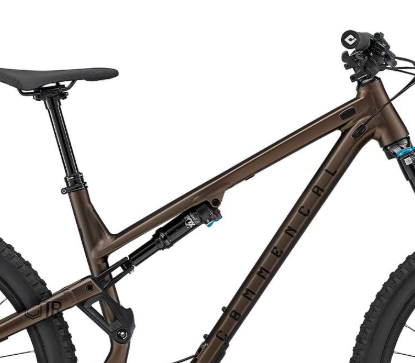

Frame

META TR V4, 140 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6, Enduro bearings

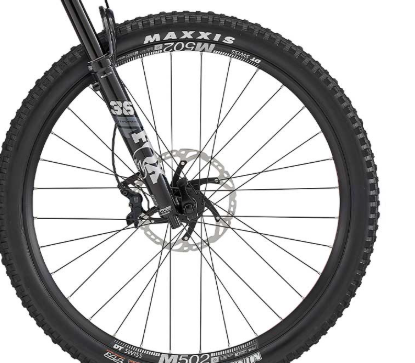

Fork

FOX 36 Performance, 150 mm, 29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 Tokens

Rear Shock

FOX Float DPS Performance, 210 x 55 mm, rebound, 3 position adjustment

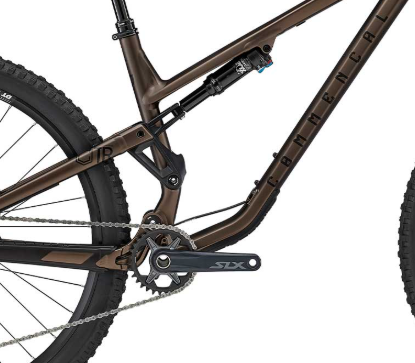

Crank

SHIMANO SLX, 170 mm, Boost

Chain

SHIMANO SLX, 12s

Bottom Bracket

SHIMANO BB71-41A, Pressfit

Shifters

SHIMANO SLX, 12s

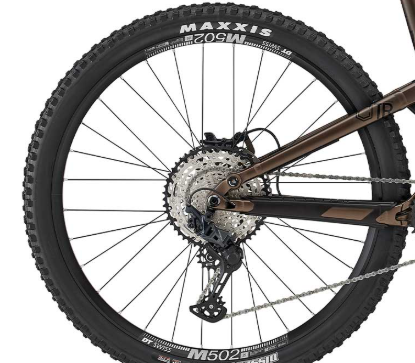

Rear Derailleur

SHIMANO SLX, 12s

Specification

Details

Seating

FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails

Wheels/Tyres

29" MAXXIS Dissector (rear, 29x2.40 WT, EXO, dual compound, Tubeless Ready), MAXXIS DHR II (front, 29x2.40 WT, EXO, dual compound, Tubeless Ready), DT SWISS M 502 Rims, SHIMANO SLX 10-51t

Wheel Size

29"

Brakes

Hydraulic Disc Brakes, SHIMANO SLX 4-piston (203 mm, front and rear)

Brake Levers

SHIMANO SLX, I-Spec EV compatible

Handlebar

RIDE ALPHA R20 760 on S, RIDE ALPHA R27 780 on M/L, RIDE ALPHA R27 800 on XL, 31.8 mm, 20 mm rise on S, 27 mm rise on M/L/XL, Alloy 6061

Stem

RIDE ALPHA Freeride 40, 40 mm extension, 31.8 mm

Grips

ODI Elite Motion, Soft pro compound, single clamp, black

Headset

ACROS ZS44 / ZS56, Alloy cups, sealed bearings

Saddle

FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails

Seatpost

KS Rage-I, 34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

Front Hub

FORMULA DC-711, 32h, 15 x 110 mm, sealed bearings

Rear Hub

FORMULA MSL-148A, 32h, 12 x 148 mm, sealed bearings, Micro Spline

Rims

DT SWISS M 502, 29'', 30 mm inner width

Spokes

SAPIM Race, J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

Exterior Features

Down tube protector, chainstay protector, seatstay protector

Weight

15 kg (S)
