Model

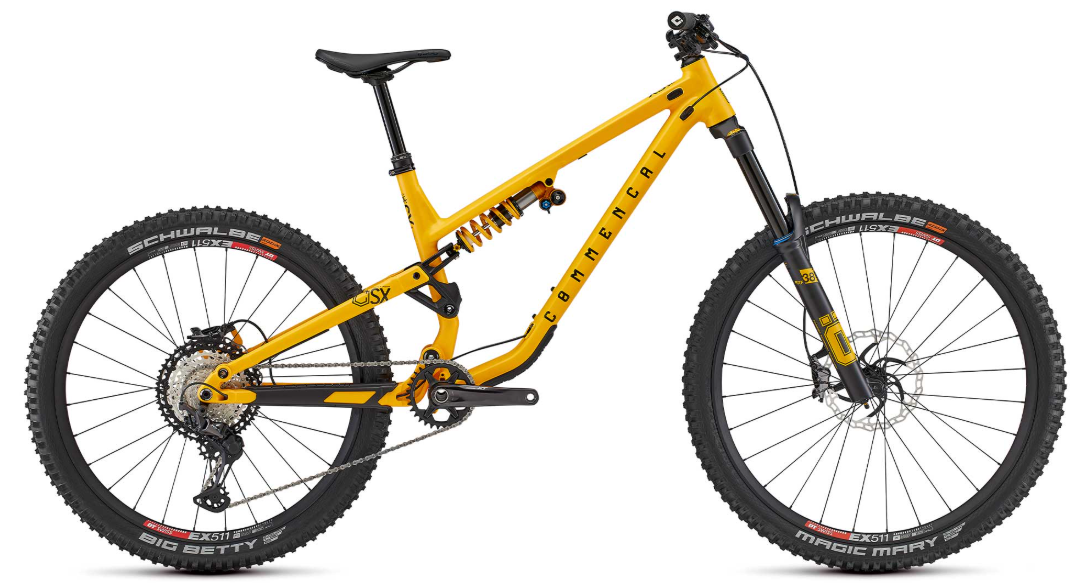

Meta SX V4 Ohlins Edition Yellow

Vehicle Category

Enduro Bike

Application

Enduro

Starting Price (2025)

$4,200.00

Color Options

ÖHLINS Yellow (Matte Finish)

Sizes

S, M, L, XL

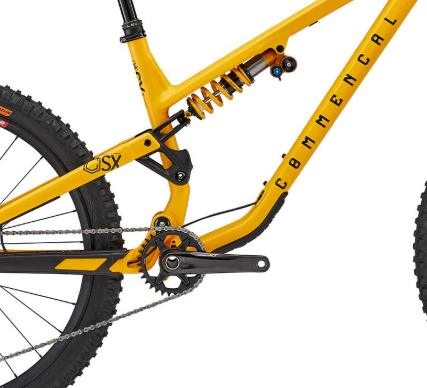

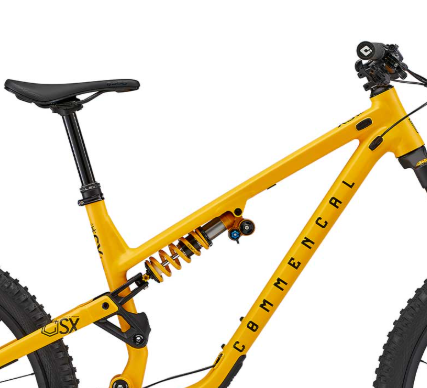

Frame

META SX V4, 160 mm travel, Alloy 6066, triple butted tubes, T4/T6, Enduro bearings

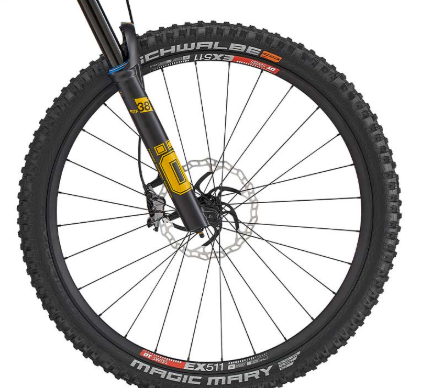

Fork

OHLINS RXF38 m.2 Air, 170 mm, TTX 18 damper, Ramp Up chamber, LSC/HSC/rebound, Boost 15 x 110 mm, 44 mm offset

Rear Shock

OHLINS TTX22 M.2 Coil, 230 x 62.5 mm, HSC/LSC/rebound, climb mode, Spring rates: 343lbs (S), 388lbs (M), 434lbs (L), 480lbs (XL)

Crank

SHIMANO XT, 170 mm, Boost, 32T

Chain

SHIMANO XT

Bottom Bracket

SHIMANO BBMT800, Pressfit

Shifters

SHIMANO XT, 12-speed

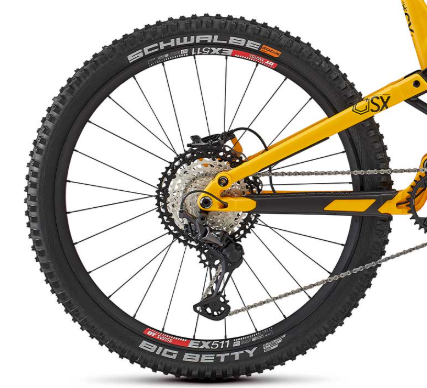

Rear Derailleur

SHIMANO XT, 12-speed

Seating

SDG Bel Air V3 Atmos, 140 mm, Lux-Alloy Rails

Wheels/Tyres

SCHWALBE Magic Mary 29" x 2.4" Super Trail Addix Soft TE (front); SCHWALBE Big Betty 27.5" x 2.4" Super Trail Addix Soft TE (rear)

Wheel Size

29" (front), 27.5" (rear)

Brakes

Hydraulic disc brakes

Brake Levers

SHIMANO XT, 4 pistons

Handlebar

RIDE ALPHA R20 760 mm (S), R27 780 mm (M/L), R27 800 mm (XL), 20–27 mm rise, 31.8 mm

Stem

RIDE ALPHA  40, 40 mm, 31.8 mm

Headset

ACROS ZS44/ZS56, alloy cups

Saddle

SDG Bel Air V3 Atmos, 140 mm, Lux-Alloy Rails

Seatpost

KS Lev Integra, 34.9 mm, 125 mm (S), 150 mm (M), 175 mm (L), 200 mm (XL), SouthPaw alloy remote

Grips

ODI Elite Motion, soft pro compound, single clamp, black

Front Hub

DT SWISS 350, 15 x 110 mm

Rear Hub

DT SWISS 350, 12 x 148 mm, MicroSpline, 36t ratchet

Rims

DT SWISS EX511, 30 mm inner width

Spokes

DT SWISS Competition, straightpull, double butted

Exterior Features

Down tube protector, chainstay protector, seatstay protector

Weight

15.9 kg (S size, without pedals)
