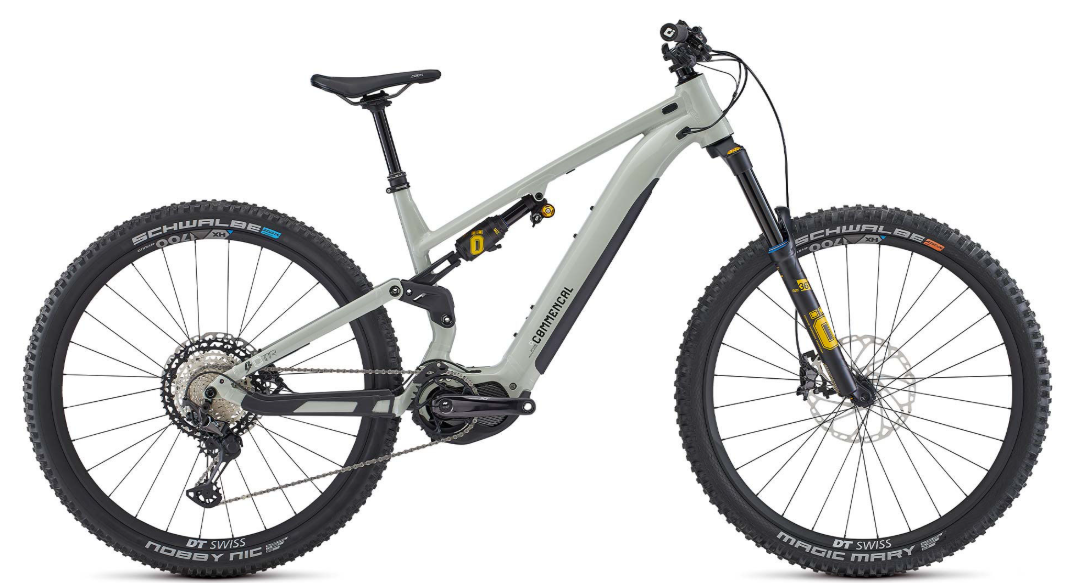

2025 Commencal Meta Power TR Shimano Ohlins Edition Ash Grey – E-Trail Bike
Specifications
|
Specification |
Details |
|
Model |
Meta Power TR Shimano Ohlins Edition Ash Grey |
|
Vehicle Category |
E-Trail Bike |
|
Application |
trail, climbing, descending |
|
Starting Price (2025) |
$5,600.00 |
|
Color Options |
Ash Grey |
|
Sizes |
L (5'11" - 6'3") |
Frame & Drivetrain
|
Specification |
Details |
|

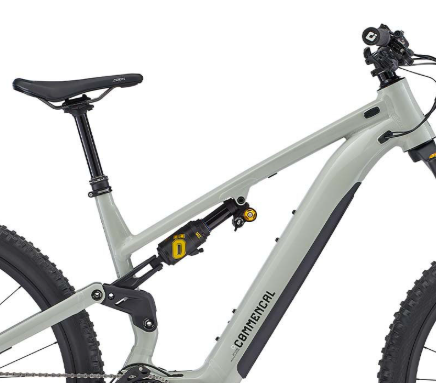

Frame |
META POWER TR V4, 140 mm, 29", Alloy 6066, triple butted tubes, T4, T6, Enduro bearings |
|

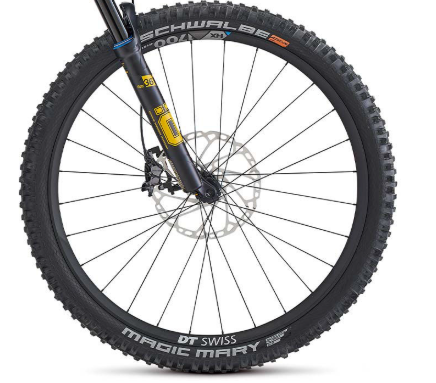

Fork |
OHLINS RXF36 m.2 Air, 150 mm, 29", TTX 18 damper, LSC, HSC, rebound, climb mode, Boost (15 x 110 mm), 44 mm offset |
|
Rear Shock |
OHLINS TTX2 Air, 210 x 55 mm, LSC, 3 positions HSC, rebound, climb mode |
|

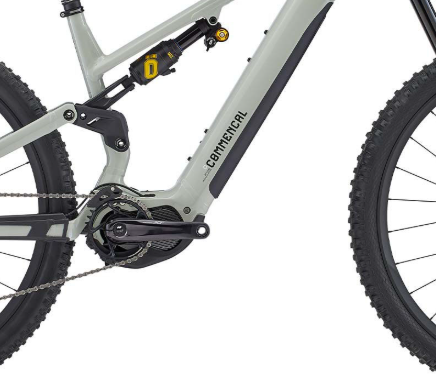

Motor |
SHIMANO DU-EP800, 85 N.m, 250 W |
|
Battery |
SHIMANO BT-E8036, 630 Wh, internal |
|
Crank |
SHIMANO Deore XT, 160 mm |
|
Chain |
SHIMANO Deore XT, 12s |
|
Shifters |
SHIMANO Deore XT, 12s |
|
Rear Derailleur |
SHIMANO Deore XT, 12s |
Components & Features
|
Specification |
Details |
|
Seating |
FIZIK Terra Aidon X3, 145 mm, Kium Mobius rails |
|
Fuel Type |
Electric (SHIMANO 630 Wh) |
|
Wheels/Tyres |
29" SCHWALBE Magic Mary (front, 29x2.40 Super Trail, Addix Soft, Tubeless Easy), 29" SCHWALBE Nobby Nic (rear, 29x2.40 Super Trail, Addix SpeedGrip, Tubeless Easy), DT SWISS HX1700 Spline Rims, SHIMANO Deore XT 10-51t |
|
Wheel Size |
29" |
|
Brakes |
Hydraulic Disc Brakes, SHIMANO XT 4-piston (220 mm front and rear) |
|
Brake Levers |
SHIMANO XT, resin pads |
|
Handlebar |
RIDE ALPHA R20 POWER 760 on S, RIDE ALPHA R27 POWER 780 on M/L, RIDE ALPHA R27 POWER 800 on XL, 31.8 mm, 20 mm rise on S, 27 mm rise on M/L/XL, Alloy 6061 |
|
Stem |
RIDE ALPHA Freeride 40, 40 mm extension, 31.8 mm |
|
Grips |
ODI Elite Motion, Soft pro compound, single clamp, black |
|
Headset |
ACROS ZS56 / ZS66, Alloy cups, sealed bearings |
|
Saddle |
FIZIK Terra Aidon X3, 145 mm, Kium Mobius rails |
|
Seatpost |
KS Lev Integra, 31.6 mm, 125 mm on S, 175 mm on M/L, 200 mm on XL, SouthPaw alloy remote |
|
Front Hub |
DT SWISS 350, 28h, 15 x 110 mm, sealed bearings |
|

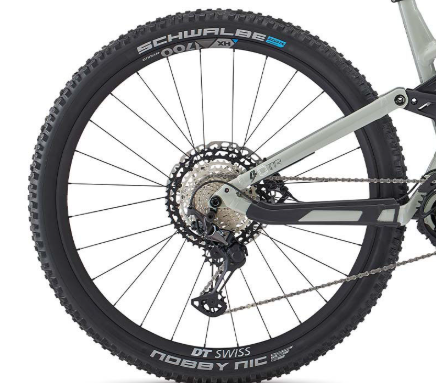

Rear Hub |
DT SWISS 350, 28h, 12 x 148 mm, sealed bearings, 24t, Sram XD, e-bike specific |
|
Rims |
DT SWISS HX1700 Spline, 29'', 28h, 30 mm inner width |
|
Spokes |
DT SWISS Hybrid 1, Straightpull, 2.34/2.0 mm, double butted, stainless, ProLock, black |
|
Pedals |
RIDE ALPHA CNC |
|
Exterior Features |
Motor protector, chainstay protector, seatstay protector |
|
Weight |
24.8 kg (S) |
