Specification

Details

Model

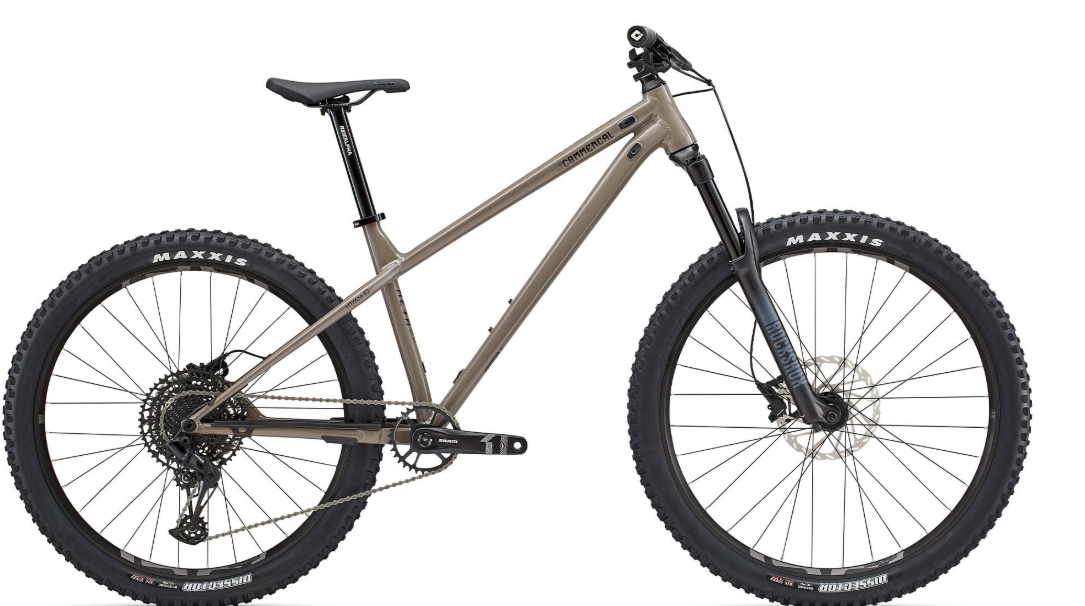

Meta HT AM Ride Dirt

Vehicle Category

Hardtail Trail Bike

Application

trail riding, pedaling efficiency

Starting Price (2025)

$1,450.00

Color Options

Dirt

Sizes

M (5'6" - 5'11"), L (5'10" - 6'3")

Specification

Details

Frame

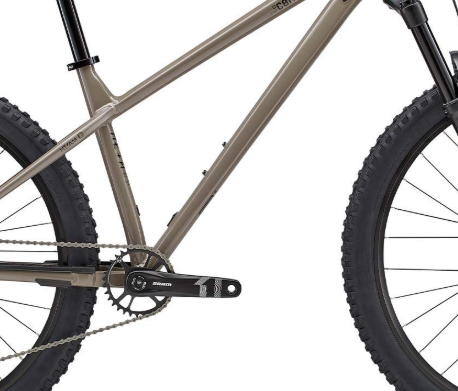

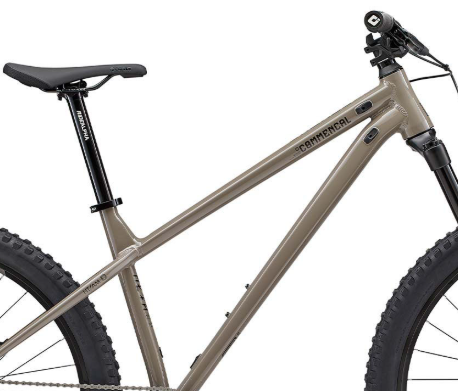

Meta HT AM - 29''/27'' on S/M & 29''/29'' on L/XL, Alloy 6061, triple butted tubes, T4, T6

Fork

ROCKSHOX 35 Gold RL, 150 mm, 29", Motion Control Damper, DebonAir, rebound, LSC to lock, Boost (15 x 110 mm), 44 mm offset, 0 Token

Crank

SRAM X1 1000 Eagle, 170 mm, DUB, Boost

Chain

SRAM NX Eagle, 12s

Bottom Bracket

SRAM BSA, Threaded

Shifters

SRAM SX Eagle, 12s

Rear Derailleur

SRAM SX Eagle, 12s

Specification

Details

Seating

SDG Bel Air V3, 140 mm width, Steel rails

Wheels/Tyres

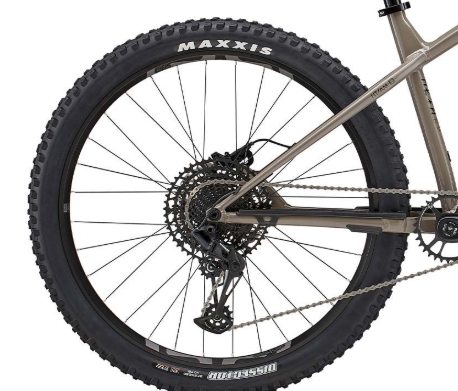

27.5" MAXXIS Dissector (rear on S/M, 27.5x2.60 dual compound, EXO, Tubeless Ready), 29" MAXXIS Dissector (front on S/M/L/XL, 29x2.60 dual compound, EXO, Tubeless Ready), E13 LG1 EN Base Rims, SRAM PG-1210 11-50t

Wheel Size

29"/27.5" (S/M), 29"/29" (L/XL)

Brakes

Hydraulic Disc Brakes, SRAM Level 2-piston (200 mm front, 180 mm rear)

Brake Levers

SRAM Level, Hydraulic disc brake

Handlebar

RIDE ALPHA R20 on S, RIDE ALPHA R27 on M/L/XL, 31.8 mm, 760 mm on S, 780 mm on M/L, 800 mm on XL, 20 mm rise on S, 27 mm rise on M/L/XL, Alloy 6061

Stem

RIDE ALPHA Freeride 40, 40 mm extension, 31.8 mm

Grips

ODI Elite Motion, Soft pro compound, single clamp, black

Headset

ACROS ZS44 / ZS56, Alloy cups, sealed bearings

Saddle

SDG Bel Air V3, 140 mm width, Steel rails

Seatpost

RIDE ALPHA, 31.6 mm, 400 mm on S/M, 450 mm on L/X

Front Hub

FORMULA DC-711, 32h, sealed bearings, 15 x 110 mm

Rear Hub

FORMULA DC-348A, 32h, sealed bearings, 12 x 148 mm, SHIMANO Hyperglide

Rims

E13 LG1 EN Base, Rear: 27.5'' on S/M, 29'' on L/XL, 30 mm inner width; Front: 29'' on S/M/L/XL, 30 mm inner width

Spokes

SAPIM Leader, J-Bend 2.0 mm, stainless, with Nylok, black

Exterior Features

Chainstay protector, seatstay protector

Weight

14.2 kg (S)
