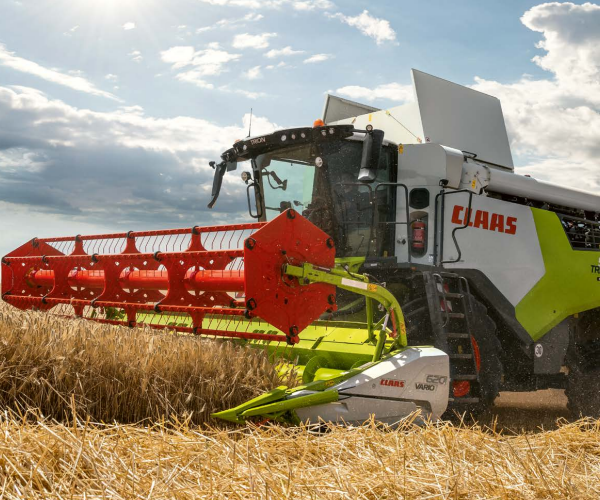

CLAAS TRION 520 – 258 HP Combine Harvester with APS WALKER
Specifications
|
Specification |
Details |
|
Model |
CLAAS TRION 520 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, rice, peas, rapeseed, sunflowers, grass, maize harvesting |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Cummins B6.7, 6 cylinders, 6.7 L, Stage V, DYNAMIC POWER |
|
Gross Horsepower |
258 HP (190 kW) max (ECE R 120) |
|
Transmission Type |
2-speed hydrostatic ground drive, 30 km/h max, hydraulically actuated dry clutch, optional POWER TRAC 4WD, differential lock, mechanical or electric gear shift |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Instant cutterbar brake |
Wheels & Tyres
|
Specification |
Details |
|
Drive Axle Tyres |
900/60 R32 (1.95 m, 3.61 m), IF 800/70 R32 (1.95 m, 3.47 m), 800/70 R32 (1.95 m, 3.48 m), 800/65 R32 (1.85 m, 3.47 m), 710/75 R34 (1.95 m, 3.30 m), 680/85 R32 (1.95 m, 3.21 m), 650/75 R32 (1.80 m, 3.21 m) |
|
Steering Axle Tyres |
VF 620/70 R26 (1.50 m, 3.50 m), 620/55 R26 (1.35 m, 3.48 m), 600/65 R28 (1.50 m, 3.50 m), 500/85 R24 (1.50 m, 3.27 m), 500/70 R24 (1.35 m, 3.27 m), 16.5/85-24 (1.30 m, 3.22 m) |
Components & Features
|
Specification |
Details |
|
Threshing Unit |
APS WALKER, 600 mm threshing drum, 1420 mm width, 550–1050 rpm, 142° concave wrap, 1.06 m² main concave area, hydraulic concave adjustment, overload protection, optional rice threshing unit |
|
Secondary Separation |
5 straw walkers, MULTIFINGER SEPARATION SYSTEM (MSS), 4400 mm straw walker length, 6.25 m² total secondary separation area |
|
Cleaning System |
JET STREAM, hydraulic fan adjustment, dual ventilated step, 3D cleaning system (optional), 5.1 m² total sieve area, GRAINMETER, AUTO SLOPE, AUTO CLEANING |
|
Grain Tank |
8000 L, 110/90 L/s unloading rate, 105° swivel angle, pivoting spout, QUANTIMETER, GRAIN QUALITY CAMERA, grain moisture sensor |
|
Straw Management |
Deflector spreader with STANDARD CUT (52 knives) or SPECIAL CUT (72 knives), chaff spreader, automatic discharge direction adjustment |
|
Front Attachments |
VARIO 930/770/680/620/560/500, CERIO 930/770/680/620/560, CONVIO FLEX 930/770, CONVIO 930/770, MAXFLEX 930/770/680/620/560, CORIO maize picker (8/6 rows), SUNSPEED 16/12/8 rows, SWATH UP 450, Folding C 540/450, AUTO CONTOUR, instant cutterbar brake, rapeseed equipment (for standard and VARIO cutterbars), rice cutterbars (VARIO/CERIO HD with rice accessory pack) |
|
Cab |
Comfort cab, CEBIS touchscreen, CEMIS 1200, CMOTION multifunction lever, air conditioning, 30 L cool box, up to 26 LED work lights, camera systems |
|
Technology |
CEMOS AUTOMATIC (AUTO THRESHING, AUTO CLEANING, AUTO CROP FLOW, CRUISE PILOT, AUTO SLOPE, CEMOS DIALOG), GPS PILOT, LASER PILOT, AUTO PILOT, FIELD SCANNER, TELEMATICS, Remote Service, job/yield mapping |
|
Fuel Tank Capacity |
600/800 L diesel, 80 L urea (AdBlue) |
|
Width |
3.21–3.61 m (depending on tyre configuration) |
|
Track Width |
3.21–3.61 m (drive axle tyres) |
|
Weight |
14400 kg (wheeled) |
|
Sound Pressure Level |
76–79 dB(A) |
|
Vibration Level (Upper Limbs) |
≤ 2.5 m/s² (standard EN 1032:2003) |
|
Vibration Level (Whole Body) |
≤ 0.5 m/s² (standard EN 1032:2003) |
