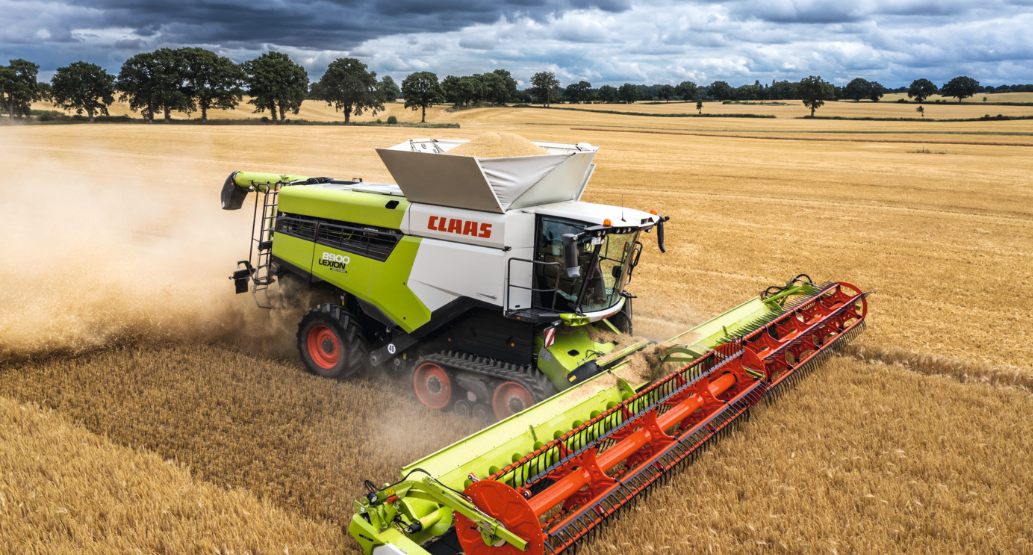

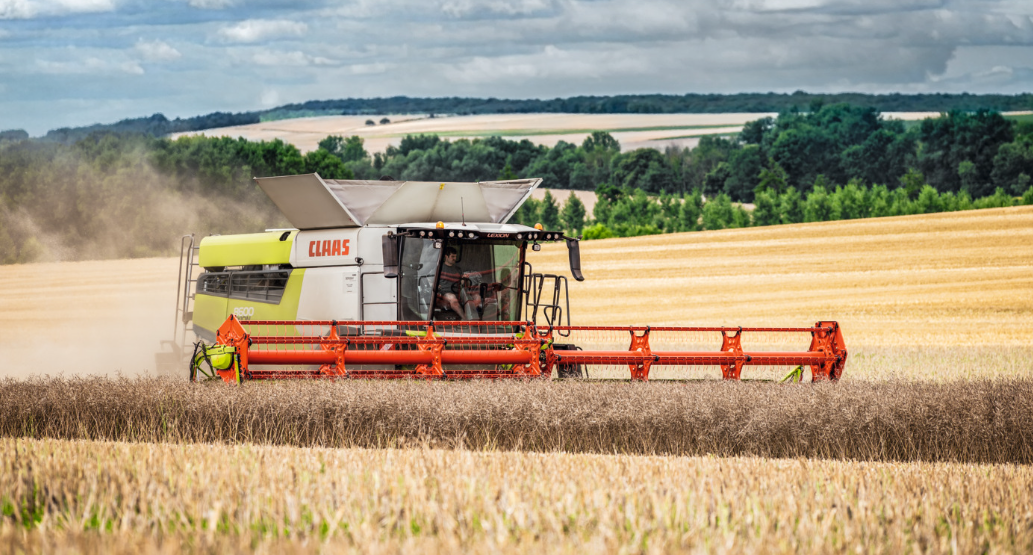

CLAAS LEXION 7700 – 549 HP Combine Harvester with APS SYNFLOW HYBRID
Specifications
|
Specification |
Details |
|
Model |
CLAAS LEXION 7700 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, rice, peas, rapeseed, sunflowers, grass, maize harvesting |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
MAN D26, 6 cylinders, 12.4 L, Stage V, DYNAMIC POWER, DYNAMIC COOLING |
|
Gross Horsepower |
549 HP (404 kW) max (ECE R 120) |
|
Transmission Type |
2-speed hydrostatic ground drive, 40 km/h max, hydraulically actuated dry clutch, automatic parking brake, optional POWER TRAC 4WD, differential lock (not available for MONTANA) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Optional TERRA TRAC with hydropneumatic suspension, MONTANA with 18% side slope and 6% longitudinal compensation (MONTANA variant only) |
|
Brakes |
Automatic parking brake, instant cutterbar brake |
Wheels & Tyres
|
Specification |
Details |
|
Drive Axle Tyres |
VF 900/60 R38 (2.05 m), 900/60 R38, IF 800/70 R38, 800/70 R38, 680/80 R38, 900/60 R32, IF 800/70 R32, 800/70 R32, 710/75 R34, IF 680/85 R32, 680/85 R32 |
|
Steering Axle Tyres |
710/60 R30 (1.65 m), VF 620/70 R30, 620/70 R30, VF 520/85 R30, 500/85 R30, VF 620/70 R26, 600/65 R28, 500/85 R24 |
|
TERRA TRAC |
635 mm, 735 mm, 890 mm (standard or rice-specific spoke design) |
Components & Features
|
Specification |
Details |
|
Threshing Unit |
APS SYNFLOW HYBRID, 755 mm threshing drum, 1420 mm width, 330–930 rpm (170–460 rpm with reduction gear), 132° concave wrap, 1.30 m² main concave area, hydraulic concave adjustment, overload protection |
|
Secondary Separation |
ROTO PLUS, 2 rotors, 445 mm diameter, 4200 mm length, 5 concaves, 370–1050 rpm, hydraulic rotor flaps |
|
Cleaning System |
JET STREAM, 6-way turbine fan, hydraulic fan adjustment, dual ventilated step, 4D cleaning system (optional), 5.10 m² total sieve area, GRAINMETER, AUTO SLOPE, AUTO CLEANING |
|
Grain Tank |
11000/12500/13500 L (11000 L for MONTANA), 130/180 L/s unloading rate, 105° swivel angle, pivoting spout, QUANTIMETER, GRAIN QUALITY CAMERA |
|
Straw Management |
SPECIAL CUT (72 knives) or STANDARD CUT (52 knives) chopper, power spreader, chaff fan, hydraulic adjustment, automatic discharge direction adjustment, CEMOS AUTO CHOPPING |
|
Front Attachments |
VARIO 1380/1230/1080/930/770/680, CERIO 930/770/680, CONVIO FLEX 1380/1230/1080/930/770, CONVIO 1380/1230/1080/930/770, MAXFLEX 930/770, SUNSPEED 16/12/8 rows, ROVIO maize picker (12/8/6 rows), SWATH UP 450, AUTO CONTOUR, instant cutterbar brake |
|
Cab |
Comfort cab, CEBIS touchscreen, CEMIS 1200, CMOTION multifunction lever, air conditioning, 30 L cool box, up to 26 LED work lights, camera systems |
|
Technology |
CEMOS AUTOMATIC (AUTO THRESHING, AUTO SEPARATION, AUTO CLEANING, AUTO HEADER, AUTO CHOPPING, AUTO CROP FLOW, CRUISE PILOT, AUTO SLOPE, CEMOS DIALOG), GPS PILOT, LASER PILOT, AUTO PILOT, FIELD SCANNER, Machine Connect (5-year licence), job/yield mapping |
|
Fuel Tank Capacity |
1150 L diesel, 110 L urea (AdBlue) |
|
Width |
3.20–3.79 m (depending on tyre/TERRA TRAC configuration) |
|
Track Width |
3.20–3.79 m (drive axle tyres: 3.20–3.62 m; TERRA TRAC: 3.29–3.79 m) |
|
Weight |
18700 kg (wheeled), 21400 kg (TERRA TRAC) |
