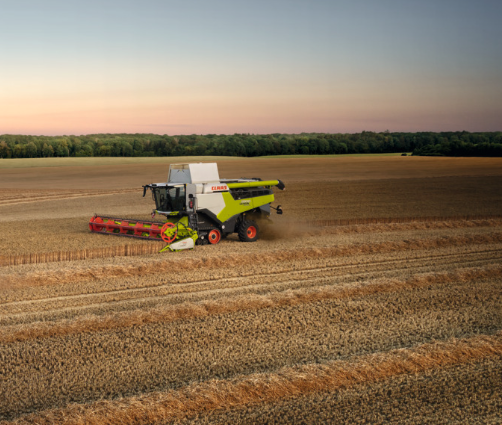

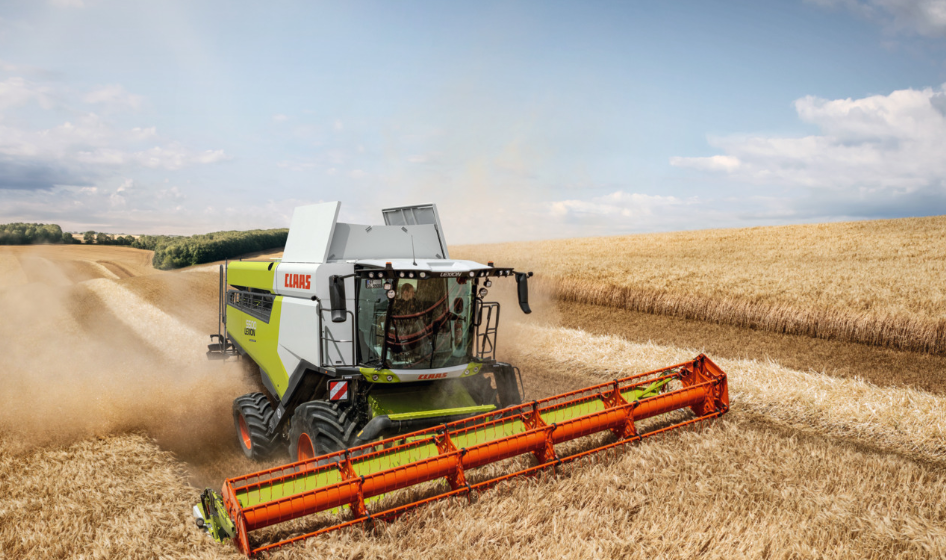

CLAAS LEXION 6600 – 354 HP Combine Harvester with APS SYNFLOW WALKER
Specifications
|
Specification |
Details |
|
Model |
CLAAS LEXION 6600 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, rice, peas, rapeseed, sunflowers, grass, maize harvesting |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM 936 LA, 6 cylinders, 7.7 L, Stage V, DYNAMIC POWER, DYNAMIC COOLING |
|
Gross Horsepower |
354 HP (260 kW) max (ECE R 120) |
|
Transmission Type |
2-speed hydrostatic ground drive, 40 km/h max, hydraulically actuated dry clutch, automatic parking brake, optional POWER TRAC 4WD, differential lock |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Automatic parking brake, instant cutterbar brake |
Wheels & Tyres
|
Specification |
Details |
|
Drive Axle Tyres |
VF 900/60 R38 (2.05 m, 3.90 m), 900/60 R38 (2.05 m, 3.90 m), IF 800/70 R38 (2.05 m, 3.76 m), 800/70 R38 (2.05 m, 3.76 m), 680/80 R38 (2.05 m, 3.49 m), 900/60 R32 (1.95 m, 3.90 m), IF 800/70 R32 (1.95 m, 3.76 m), 800/70 R32 (1.95 m, 3.76 m), 710/75 R34 (1.95 m, 3.65 m), IF 680/85 R32 (1.95 m, 3.49 m), 680/85 R32 (1.95 m, 3.49 m) |
|
Steering Axle Tyres |
VF 620/70 R26 (1.50 m, 3.69 m), 600/65 R28 (1.50 m, 3.69 m), 500/85 R24 (1.50 m, 3.48 m) |
Components & Features
|
Specification |
Details |
|
Threshing Unit |
APS SYNFLOW WALKER, 755 mm threshing drum, 1700 mm width, 330–930 rpm (170–460 rpm with reduction gear), 132° concave wrap, 1.55 m² main concave area, hydraulic concave adjustment, overload protection |
|
Secondary Separation |
6 straw walkers, 600 mm separator drum, 1.16 m² separator concave area, 116° contact angle, 3800 mm straw walker length, 7.62 m² total secondary separation area |
|
Cleaning System |
JET STREAM, 8-way turbine fan, hydraulic fan adjustment, dual ventilated step, 3D cleaning system (optional), 6.20 m² total sieve area, GRAINMETER, AUTO SLOPE, AUTO CLEANING |
|
Grain Tank |
9000/11000 L, 110/130 L/s unloading rate, 105° swivel angle, pivoting spout, QUANTIMETER, GRAIN QUALITY CAMERA |
|
Straw Management |
SPECIAL CUT (88 knives) or STANDARD CUT (64 knives) chopper, power spreader, chaff fan, hydraulic adjustment, automatic discharge direction adjustment, CEMOS AUTO CHOPPING |
|
Front Attachments |
VARIO 1230/1080/930/770/680/620/560/500, CERIO 930/770/680/620/560, CONVIO FLEX 1230/1080/930/770, CONVIO 1230/1080/930/770, MAXFLEX 930/770/680/620/560, SUNSPEED 16/12/8 rows, ROVIO maize picker (12/8/6 rows), SWATH UP 450, Folding C 540/450, AUTO CONTOUR, instant cutterbar brake, rapeseed equipment |
|
Cab |
Comfort cab, CEBIS touchscreen, CEMIS 1200, CMOTION multifunction lever, air conditioning, 30 L cool box, up to 26 LED work lights, camera systems |
|
Technology |
CEMOS AUTOMATIC (AUTO THRESHING, AUTO CLEANING, AUTO CHOPPING, AUTO HEADER, AUTO CROP FLOW, CRUISE PILOT, AUTO SLOPE, CEMOS DIALOG), GPS PILOT, LASER PILOT, AUTO PILOT, FIELD SCANNER, Machine Connect (5-year licence), job/yield mapping |
|
Fuel Tank Capacity |
950 L diesel, 110 L urea (AdBlue) |
|
Width |
3.49–3.90 m (depending on tyre configuration) |
|
Track Width |
3.49–3.90 m (drive axle tyres) |
|
Weight |
16650 kg (wheeled) |
