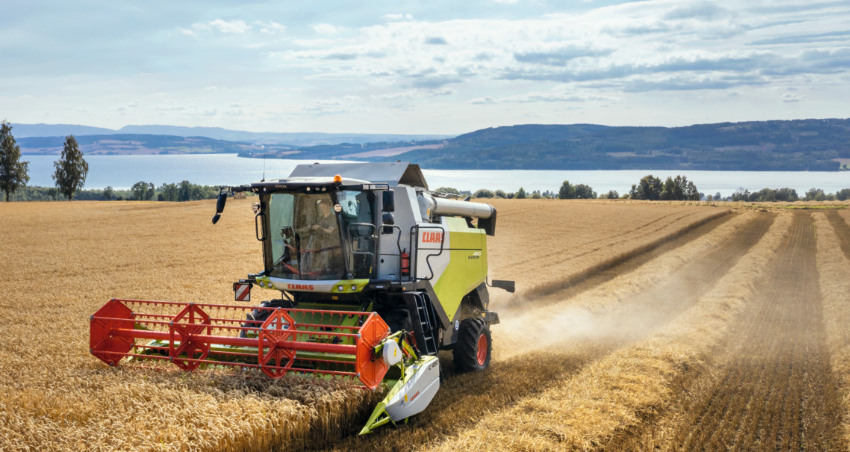

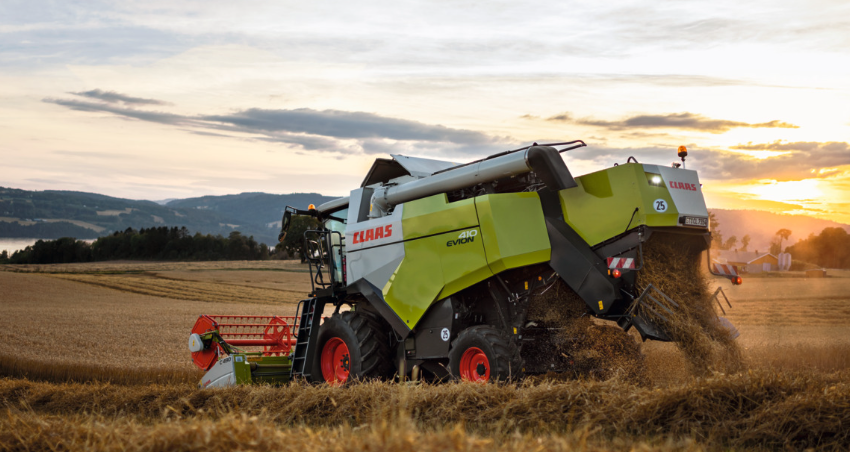

CLAAS EVION 430 – 231 HP Combine Harvester with MULTICROP
Specifications
|
Specification |
Details |
|
Model |
CLAAS EVION 430 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, rice, peas, rapeseed, sunflowers, grass, maize harvesting |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Cummins B6.7 (Stage V) or QSB6.7 (Tier 3), 6 cylinders, 6.7 L, DYNAMIC POWER |
|
Gross Horsepower |
231 HP (170 kW) max (ECE R 120) |
|
Transmission Type |
3-speed hydrostatic ground drive, 30 km/h max, electrohydraulic clutch, optional differential lock |
Wheels & Tyres
|
Specification |
Details |
|
Drive Axle Tyres |
650/75 R32 (1.85 m, 3.22 m), 650/75 R32 Michelin (1.85 m, 3.22 m), 800/65 R32 (1.85 m, 3.58 m), 800/65 R32 (1.85 m, 3.47 m), 800/65 R32 Michelin (1.85 m, 3.56 m) |
|
Steering Axle Tyres |
16.5/85-24 14PR IMP (1.35 m, 3.22 m), 500/70 R24 (1.35 m, 3.27 m), 500/70 R24 (1.35 m, 3.27 m), 500/85 R24 (1.50 m, 3.27 m) |
Components & Features
|
Specification |
Details |
|
Threshing Unit |
Conventional threshing system, 600 mm threshing drum, 1420 mm width, 480–1150 rpm (220–630/415–1150 rpm with reduction gear, 420–1080 rpm as retrofit), 121° concave wrap, 0.95 m² main concave area, hydraulic concave adjustment, MULTICROP (MAXI) or Universal Grain (CLASSIC) |
|
Secondary Separation |
5 straw walkers, 4400 mm straw walker length, 6.25 m² total secondary separation area |
|
Cleaning System |
Radial fan, hydraulic fan adjustment, 3D cleaning system (optional), 4.80 m² total sieve area, electric sieve adjustment, AUTO SLOPE, AUTO CROP FLOW |
|
Grain Tank |
6500 L, 90 L/s unloading rate, 105° swivel angle, pivoting unloading tube spout (optional), QUANTIMETER yield and moisture measurement |
|
Straw Management |
STANDARD CUT (52 knives) or SPECIAL CUT (72 knives) chopper, chaff spreader |
|
Front Attachments |
VARIO 680/620/560/500, CERIO 680/620/560, Standard C 490/430/370, Folding C 540/450, MAXFLEX 680/620/560, CORIO maize picker (6/5 rows), SUNSPEED 12/8 rows, SWATH UP 450, AUTO CONTOUR (BUSINESS), CONTOUR (TREND), rapeseed equipment (for VARIO cutterbars) |
|
Cab |
Comfort cab, CEMIS 700, CMOTION multifunction lever, automatic climate control, air-suspended operator’s seat, instructor’s seat with refrigerator box (BUSINESS) or storage compartment (TREND), LED work lights |
|
Technology |
AUTO SLOPE, AUTO CROP FLOW, GPS PILOT CEMIS 1200 (optional), AUTO PILOT (optional), TELEMATICS (optional), job management, yield mapping, MAXI CARE connect, CEMOS Advisor |
|
Fuel Tank Capacity |
500 L diesel, 80 L urea (Stage V) |
|
Width |
3.22–3.58 m (depending on tyre configuration) |
|
Track Width |
3.22–3.58 m (drive axle tyres) |
|
Weight |
11500 kg (without front attachment, straw chopper, chaff spreader, full fuel and urea tank) |
