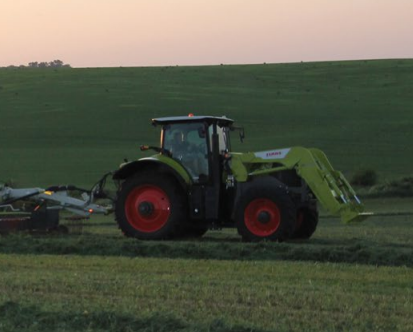

CLAAS AXION 860 – 250 HP Tractor with CMATIC Transmission
Specifications
|
Specification |
Details |
|
Model |
CLAAS AXION 860 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Field work, transport, PTO-driven implements, seed and chemical applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF 6, 6 cylinders, 6.7 L, Tier 4F, common rail 4-valve, variable geometry turbo, SCR and cooled EGR emissions technology, Visctronic fan control |
|
Gross Horsepower |
250 HP (184 kW) rated, 264 HP (194 kW) max at 1950 rpm |
|
Transmission Type |

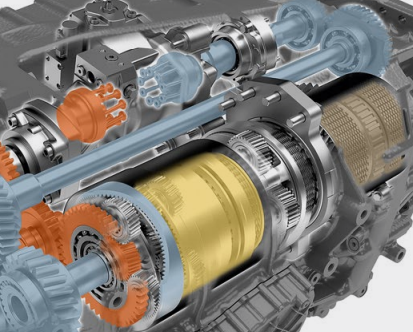

CMATIC continuously variable (ZF Terramatic), 0.03–31 mph (0.05–50 km/h), 1550 rpm at max speed, accelerator pedal, drive lever, or manual mode |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
4-point cab suspension, PROACTIV front axle suspension (3.5 in spring travel, automatic load adjustment), vibration damping on front/rear linkage |
|
Brakes |
Park lock |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
Up to 900/60 R38, max diameter 6.725 ft (2.05 m) |
Components & Features
|
Specification |
Details |
|
PTO |
540 ECO (1595 rpm), 1000 (1930 rpm), 1000 ECO (1524 rpm), 223 HP rated (SAE/OECD-2), 244 HP at rated speed, 1⅜" (6/21 splines) or 1¾" (20 splines) shafts, automatic engagement/disengagement, external controls |
|
Hydraulics |
Load-sensing, 54 gpm, 2900 psi, 5–7 electronic spool valves (4 via ELECTROPILOT), 10 rear pressure-free couplings, flow rate control, optional front linkage (10361/13007 lbs capacity, 1000 rpm PTO, position control, 2 spool valves, free-flow return, external controls) |
|
Rear Linkage |
22487 lbs max lift capacity, 13669 lbs continuous at 24 in, wheel slip control via radar, hydraulic top link, external controls, draft/position control, lifting height limiter, lowering speed adjustment |
|
Cab |
4-pillar cab, CEBIS 12" touchscreen, CMOTION multifunction lever, multifunction armrest, air-suspended cloth seat (optional heated/ventilated leather), automatic climate control, cool box, up to 20 LED work lights, 4 LED road lights, Bluetooth hands-free, optional tinted rear window, optional front-opening roof hatch |
|
Technology |
CEMOS self-learning assistance (ballasting, tire pressure, engine/transmission settings), CSM headland management (4 sequences per implement, up to 20 implements), GPS PILOT CEMIS 1200 (SATCOR 15/3/3 FAST, RTK, ISOBUS TC-GEO, VRA), TELEMATICS, Remote Service (5-year free), ISOBUS implement control, 2 camera displays |
|
Fuel Tank Capacity |
120 gal (454 L diesel), 11 gal (41.6 L DEF) |
|
Width |
9.84 ft (3.0 m) with quick-release axle |
|
Track Width |
9.84 ft (3.0 m) with quick-release axle |
|
Length |
213.70 in (5.43 m) with front linkage folded |
|
Max Height |
126.50 in (3.21 m) |
|
Wheelbase |
117.32 in (2.98 m) |
|
Weight |
19180–20834 lbs (8699–9451 kg) |
