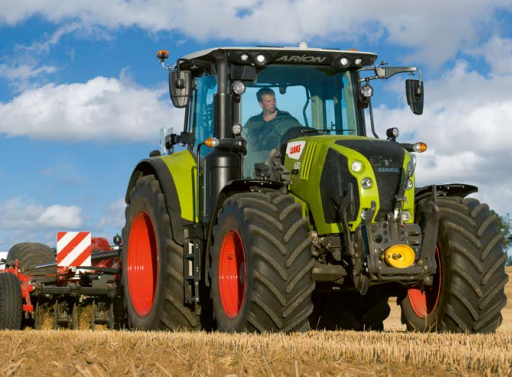

CLAAS ARION 610 – 135 HP Tractor with CMATIC or HEXASHIFT Transmission
Specifications
|
Specification |
Details |
|
Model |
CLAAS ARION 610 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Field work, transport, PTO-driven implements, front loader work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
DPS Powertech, 6 cylinders, 6.8 L, Stage V, common rail injection (1800 bar), variable geometry turbo, EGR, DOC, DPF, SCR, Visctronic fan control, 650/800 rpm idle speeds |
|
Gross Horsepower |
135 HP (99 kW) rated, 145 HP (107 kW) max at 2000 rpm (ECE R 120) |
|
Transmission Type |
CMATIC continuously variable (EQ 200) or HEXASHIFT powershift (24/24 ratios, 6 powershift speeds, 4 ranges, 1.73–40/50 km/h, min 0.43 km/h with creep gear at 2200 rpm), REVERSHIFT clutchless reverser, SMART STOP, cruise control, engine droop settings (Eco/Power) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
4-point cab suspension (adjustable torsion strut, 3 hardness levels), optional PROACTIV front axle suspension (100 mm travel, load compensation), vibration damping on front/rear linkage |
|
Brakes |
Optional park lock, air brakes with drier, disc brakes on front/rear axles (50 km/h version), automatic anti-jackknife brake |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
Up to 650/65 R38, max diameter 1.85 m, MICHELIN XeoBib or Nokian industrial tyres available |
Components & Features
|
Specification |
Details |
|
PTO |
540/1000 (standard), optional 540/540 ECO (1530 rpm)/1000/1000 ECO (1570 rpm), ground speed PTO, wet multi-disc clutch, 1⅜" (6/8/21 splines), automatic engagement/disengagement, external controls |
|
Hydraulics |
Load-sensing, 110/150 l/min, 200 bar, 2–4 mechanical (CIS) or 3–4 electronic spool valves (CEBIS/CIS+), up to 2 central via ELECTROPILOT, 8 rear pressure-free couplings, Power Beyond, flow control, optional front linkage (4 t, 1000 rpm PTO, position control, 1 spool valve, free-flow return) |
|
Rear Linkage |
7500 kg max lift capacity, 5100 kg continuous at 610 mm, manual/automatic lower link stabilisers, wheel slip control, hydraulic top link, external controls, draft/position control, lift height limiter, lowering speed adjustment |
|
Cab |
4/5-pillar cab, CEBIS (12" touchscreen)/CIS+/CIS, CMOTION (CEBIS) or DRIVESTICK (CIS+/CIS), air-suspended seat (optional ventilated/heated leather), automatic climate control, cool box, up to 14 LED work lights, 4 LED road lights, Bluetooth hands-free, optional tinted rear window, front/rear-opening roof hatch |
|
Technology |
CEMOS (ballasting, tire pressure, engine/transmission), CSM headland management (4 sequences, up to 20 implements in CEBIS), GPS PILOT CEMIS 1200 (SATCOR 15/3/3 FAST, RTK), TELEMATICS, Remote Service (5-year free), ISOBUS (CEBIS), 2 camera displays (CEBIS) |
|
Front Loader |
FL 150, FL 140/140 C, FL 120/120 C, lift height 4.15–4.60 m, PCH hydraulic/PCM mechanical self-levelling, FITLOCK, MACH, FASTLOCK, SPEEDLINK, SHOCK ELIMINATOR |
|
Fuel Tank Capacity |
367 L diesel, AdBlue tank included |
|
Length |
4759 mm (from front weight carrier to rear lower links) |
|
Max Height |
3050 mm |
|
Wheelbase |
2820 mm |
|
Weight |
6530–7470 kg |
