Specification

Details

Model

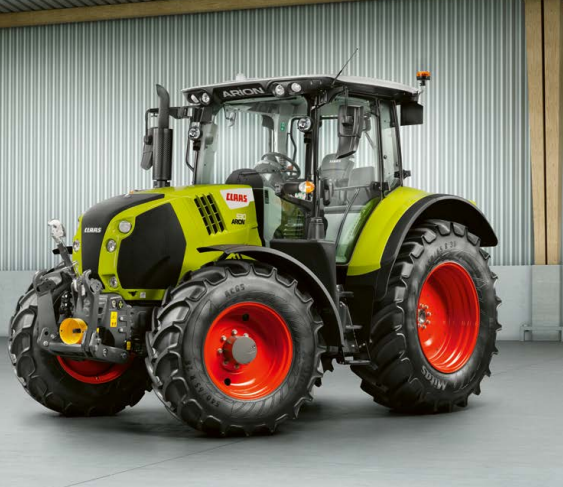

CLAAS ARION 510

Vehicle Category

Tractor

Fuel Type

Diesel

Application

Field work, transport, PTO-driven implements, front loader work

Specification

Details

Engine

DPS Powertech, 4 cylinders, 4.5 L, Stage V, common rail injection (1800 bar), compound turbo (small turbo and wastegate turbo), EGR, DOC, DPF, SCR, Visctronic fan control

Gross Horsepower

115 HP (85 kW) rated, 125 HP (92 kW) max at 2000 rpm (ECE R 120)

Transmission Type

CMATIC continuously variable (EQ 200) or HEXASHIFT powershift (24/24 ratios, 6 powershift speeds, 4 ranges, 1.68–40/50 km/h, min 0.42 km/h with creep gear at 2200 rpm), REVERSHIFT clutchless reverser, SMART STOP, cruise control, engine droop settings (Eco/Power)

Specification

Details

Suspension

4-point cab suspension (adjustable torsion strut, 3 hardness levels), optional PROACTIV front axle suspension (100 mm travel, load compensation), vibration damping on front/rear linkage

Brakes

Optional park lock, air brakes with drier, disc brakes on front/rear axles (50 km/h version), automatic anti-jackknife brake

Specification

Details

Rear Tyres

Up to 650/60 R38, max diameter 1.75 m, MICHELIN XeoBib or Nokian industrial tyres available

Specification

Details

PTO

540/1000 (standard), optional 540/540 ECO (1530 rpm)/1000/1000 ECO (1570 rpm), ground speed PTO, wet multi-disc clutch, 1⅜" (6/8/21 splines), automatic engagement/disengagement, external controls

Hydraulics

Load-sensing, 110/150 l/min, 200 bar, 2–4 mechanical (CIS) or 3–4 electronic spool valves (CEBIS/CIS+), up to 2 central via ELECTROPILOT, 8 rear pressure-free couplings, Power Beyond, flow control, optional front linkage (4 t, 1000 rpm PTO, position control, 1 spool valve, free-flow return)

Rear Linkage

7500 kg max lift capacity, 5100 kg continuous at 610 mm, manual/automatic lower link stabilisers, wheel slip control, hydraulic top link, external controls, draft/position control, lift height limiter, lowering speed adjustment

Cab

4/5-pillar cab, CEBIS (12" touchscreen)/CIS+/CIS, CMOTION (CEBIS) or DRIVESTICK (CIS+/CIS), air-suspended seat (optional ventilated/heated leather), automatic climate control, cool box, up to 14 LED work lights, 4 LED road lights, Bluetooth hands-free, optional tinted rear window, front/rear-opening roof hatch

Technology

CEMOS (ballasting, tire pressure, engine/transmission), CSM headland management (4 sequences, up to 20 implements in CEBIS), GPS PILOT CEMIS 1200 (SATCOR 15/3/3 FAST, RTK), TELEMATICS, Remote Service (5-year free), ISOBUS (CEBIS), 2 camera displays (CEBIS)

Front Loader

FL 120/120 C, FL 100/100 C, lift height 4.00–4.15 m, PCH hydraulic/PCM mechanical self-levelling, FITLOCK, MACH, FASTLOCK, SPEEDLINK, SHOCK ELIMINATOR

Fuel Tank Capacity

242 L diesel, AdBlue tank included

Length

4443 mm (from front weight carrier to rear lower links)

Max Height

3000 mm

Wheelbase

2564 mm

Weight

5950–6890 kg
