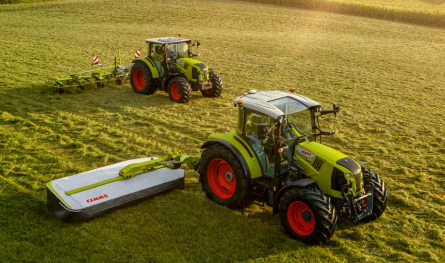

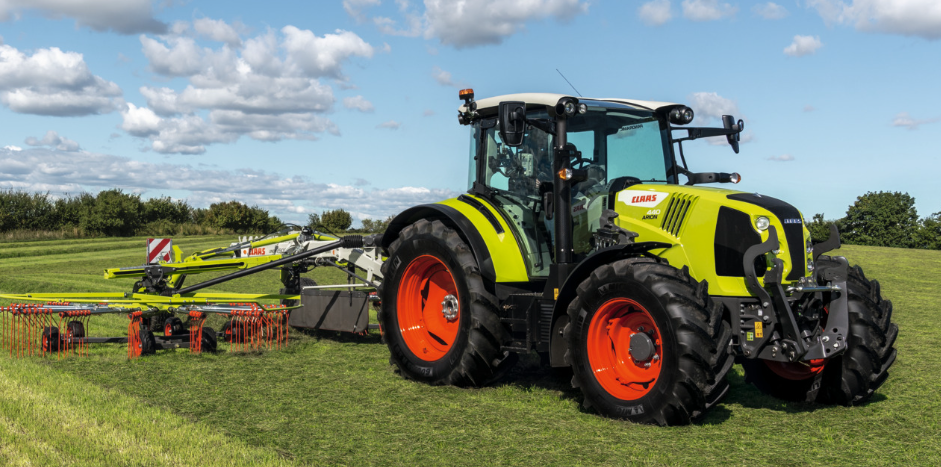

CLAAS ARION 410 – 85 HP Tractor with QUADRISHIFT Transmission
Specifications
|
Specification |
Details |
|
Model |
CLAAS ARION 410 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Field work, transport, PTO-driven implements, front loader work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT, 4 cylinders, 4.5 L, Stage V, common rail injection (1600 bar), turbocharger, SCRoF, DOC, intercooler, 2 engine speed memories |
|
Gross Horsepower |
85 HP (63 kW) rated, 90 HP (67 kW) max at 2000 rpm (ECE R 120) |
|
Transmission Type |
QUADRISHIFT powershift (16/16 ratios, 4 powershift speeds, 4 ranges, 1.85–40 km/h, min 0.14 km/h with creep gear at 2200 rpm), REVERSHIFT clutchless reverser, QUADRACTIV auto-shift, SMART STOP, cruise control |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Optional 2-point mechanical cab suspension, optional PROACTIV front axle suspension (90 mm travel, load compensation), vibration damping on front/rear linkage |
|
Brakes |
High-pressure service brake, disc brakes on front/rear axles, speed/steering angle-dependent automatic 4WD |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyres |
Up to 1.70 m diameter, industrial tread available |
Components & Features
|
Specification |
Details |
|
PTO |
540/540 ECO (1530 rpm)/1000, optional ground speed PTO, wet multi-disc clutch, 1⅜" (6/21 splines), automatic engagement/disengagement, external controls |
|
Hydraulics |
Open-centre (60/100 l/min, 195 bar) or load-sensing (110/150 l/min, 200 bar), 2–3 mechanical or 2–4 electronic spool valves (CIS+), FLEXPILOT/ELECTROPILOT, Power Beyond, optional front linkage (2.8 t, 1000 rpm PTO, 1 spool valve) |
|
Rear Linkage |
4500 kg max lift capacity, 3200 kg continuous at 610 mm, manual/automatic lower link stabilisers, external controls, depth control |
|
Cab |
6-pillar high-profile (2.66 m)/low-profile (2.496 m)/PANORAMIC, Standard/CIS/CIS+, multipad or multifunction control lever, air-suspended seat (optional pivoting), automatic climate control, cool box, up to 8 LED work lights |
|
Technology |
CSM headland management (CIS+, 4 sequences), GPS PILOT CEMIS 1200 (SATCOR 15/3/3 FAST, RTK, ISOBUS), TELEMATICS, Remote Service (5-year free), dynamic steering |
|
Front Loader |
FL 100/80, FL C/FL E 100, PCH hydraulic/mechanical self-levelling, FITLOCK, MACH, FASTLOCK, SPEEDLINK, SHOCK ELIMINATOR |
|
Fuel Tank Capacity |
140 L diesel, 17 L urea (AdBlue) |
|
Length |
4372 mm (without front ballast, without front linkage) |
|
Max Height |
2660 mm (high-profile cab), 2496 mm (low-profile cab) |
|
Wheelbase |
2489 mm |
|
Weight |
4800 kg |
