Specification

Details

Bus Model

LP 812/52

Wheelbase

5200 mm

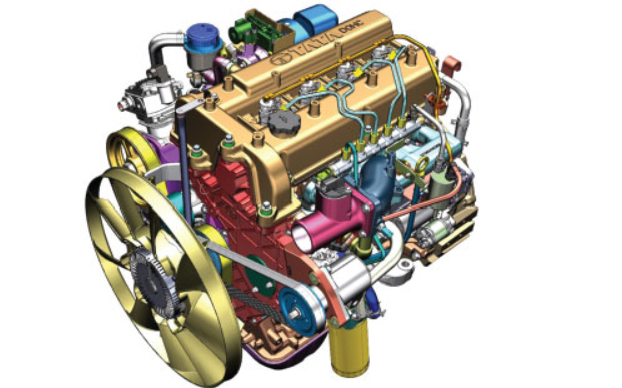

Engine

TATA 4SP CR

Power

92 kW @ 2800 r/min

Torque

350 Nm @ 1400-2400 r/min

Clutch Diameter

310 mm

Transmission

GB400 - Cable Shift

Brakes

Air Brakes

Suspension

Parabolic Suspension

Steering

Power-Steering, Tilt-Telescope

Battery

12 V, 100 Ah

Alternator

75 A

Tyres

225/75R17.5 / 7.50 R 16

Fuel Tank Capacity

120/90 litres

Fuel Tank Material

Plastic

DEF Tank Capacity

18 litres

Max. GVW

8500 kg

Seating Capacity

SKL: 42 / 50 & 59, STD: 40; 40-68

Length

9750 mm

Rear Overhang

3120 mm

Front Overhang

1430 mm

Overall Height

2910 mm

Max. Width

2340/2200 mm

TCD

18 m

Ground Clearance

180 mm

AC / Non-AC Option

Non-AC

Fuel Type

Diesel

Application

School Buses

Specification

Details

Warranty Feature

5 Years/5 Lakh kms Warranty

Bus Body Warranty Feature

3 Years/3 Lakh kms Bus Body Warranty

Body Width Feature

Multiple Body Width Option 2340 MM / 2550 MM

Engine Feature

Fuel Efficient 3.3 Ltr Engine with Balanced Power & Torque

Cooling Feature

E-Viscous Fan

Tyre Feature

Low CRR Radial Tubeless & Tubetype Tyre

Telematics Feature

4G Telematic Solution with FOTA

Steering Feature

Modular Steering Wheel with Cruise Control

Fuel System Feature

Plastic Fuel Tank with Fuel Monitoring system

Safety Feature

Fire Detection and Separation System; Exceeds CMVR, AIS 052, AIS 063, AIS 153 standards; Advanced braking systems; Impact-resistant materials; Strategic emergency exits

Efficiency Feature

Multi-Mode Fuel Economy Switch

Stability Feature

Electronic Stability Control with Hill Start Assist

Driver Comfort Feature

Driver Suspended Seats

Transmission Feature

Torque Based Gear Shift Advisor

Seating Feature

Wider seats, armrests, mobile chargers, added leg space, reclining seats
