Specification

Details

Bus Model

LP 812/52

Wheelbase

5200 mm

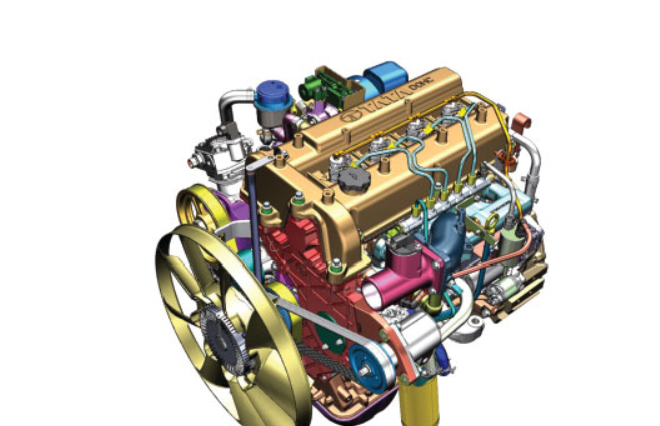

Engine

TATA 4SP CR

Engine Power

92 kW @ 2800 r/min

Engine Torque

350 Nm @ 1400-2400 r/min

Clutch Diameter

310 mm

Gearbox

GB400 - Cable Shift

Brakes

Air Brakes

Suspension

Parabolic Suspension

Steering

Power-Steering, Tilt-Telescope

Battery

12 V, 100 Ah

Alternator

75 A

Tyres

225/75R17.5 / 7.50 R 16

Fuel Tank Capacity

120/90 litres

Fuel Tank Material

Plastic

DEF Tank Capacity

18 litres

Max. GVW

8500 kg

Seating Capacity

SKL: 42 / 50 & 59, STD: 40; 40-68

Length

9750 mm

Rear Overhang

3120 mm

Front Overhang

1430 mm

Overall Height

2910 mm

Max. Width

2340/2200 mm

TCD

18 m

Ground Clearance

180 mm

AC / Non-AC Option

Non-AC

Fuel Type

Diesel

Application

School Buses

Specification

Details

Feature: Warranty

5 Years/5 Lakh kms

Feature: Bus Body Warranty

3 Years/3 Lakh kms

Feature: Multiple Body Width Options

2340 MM / 2550 MM

Feature: Engine Efficiency

Fuel Efficient 3.3 Ltr Engine with Balanced Power & Torque

Feature: Cooling System

E-Viscous Fan

Feature: Tyre Type

Low CRR Radial Tubeless & Tubetype Tyre

Feature: Telematics

4G Telematic Solution with FOTA

Feature: Steering Wheel

Modular Steering Wheel with Cruise Control

Feature: Fuel System

Plastic Fuel Tank with Fuel Monitoring System

Feature: Safety System

Fire Detection and Separation System; Exceeds CMVR, AIS 052, AIS 063, AIS 153 standards; Advanced braking systems; Impact-resistant materials; Strategic emergency exits

Feature: Fuel Economy Switch

Multi-Mode Fuel Economy Switch

Feature: Stability Control

Electronic Stability Control with Hill Start Assist

Feature: Driver Comfort

Driver Suspended Seats

Feature: Gear Shift Advisor

Torque Based Gear Shift Advisor

Feature: Seating Comfort

Wider seats, armrests, mobile chargers, added leg space, reclining seats

Feature: Suspension

Improved suspension

Feature: Noise Reduction

Reduced Noise, Vibration & Harshness (NVH)

Feature: Bus Body Design

Superior bus body design in collaboration with ACGL, prioritizing structural integrity and aesthetics

Feature: Service Interval

Service interval of 40,000 km

Benefit: Safety

Sturdy build quality for passenger & driver safety

Benefit: Performance

More reliable, better performance, more profits to customers

Benefit: Seating Comfort

Increased number of seats and seat width for seating comfort

Benefit: Fuel Economy

More trips with highest fuel economy

Benefit: Aesthetics

Refreshed look, end customer preference

Benefit: Passenger Comfort

Increased comfort and convenience to passengers

Benefit: Resale Value

Better resale value

Benefit: Noise Reduction

Low noise, vibration & harshness

Benefit: Maintenance

Low maintenance with value-added service options

Benefit: Customer Support

24x7 customer care and roadside assistance

Benefit: Spare Parts

Spare part availability across the country
