CFMOTO ZFORCE Z10-4 2025 – High-Performance 4-Seat Sport Side-by-Side
Specifications
|
Specification |
Details |
|
Engine Type |
3-cylinder, 4-stroke, liquid-cooled, DOHC, turbocharged |
|
Displacement |
998 cc (60.9 cu in) |
|
Compression Ratio |
9:1 |
|
Max Power |
143 hp @ 7750 rpm |
|
Max Torque |
100 lb-ft (135.6 Nm) @ 7000 rpm |
|
Fuel System |
Bosch electronic fuel injection (EFI) |
|
Transmission |
OmniDrive CVT, P/R/N/H/L, dual-air inlets/outlets |
|
Drivetrain |
Switchable 2WD/4WD with front differential lock |
|
Dry Weight |
955 kg (2105 lbs) |
|
Fuel Capacity |
37.5 liters (9.9 gallons) |
|
Towing Capacity |
400 kg (882 lbs) |
|
Cargo Bed Capacity |
113 kg (250 lbs) |
|
Ground Clearance |
356 mm (14 inches) |
|
Warranty |
12 months, limited; 5 years (Canada) |
|
Price (US, 2025) |
$22,999 (~€21,540) (Year-2025) |
|
Price (UK, 2025) |
Not specified (~£18,000 estimated) (Year-2025) |
|
Price (EU, 2025) |
Not specified (~€21,000 estimated) (Year-2025) |
Frame & Chassis
|
Specification |
Details |
|
Frame |
High-strength steel, fully robotic welded, double shear suspension mounts |
|
Dimensions (L x W x H) |
Not specified (~3700 x 1625 x 1740 mm estimated) |
|
Wheelbase |
3251 mm (128 in) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |

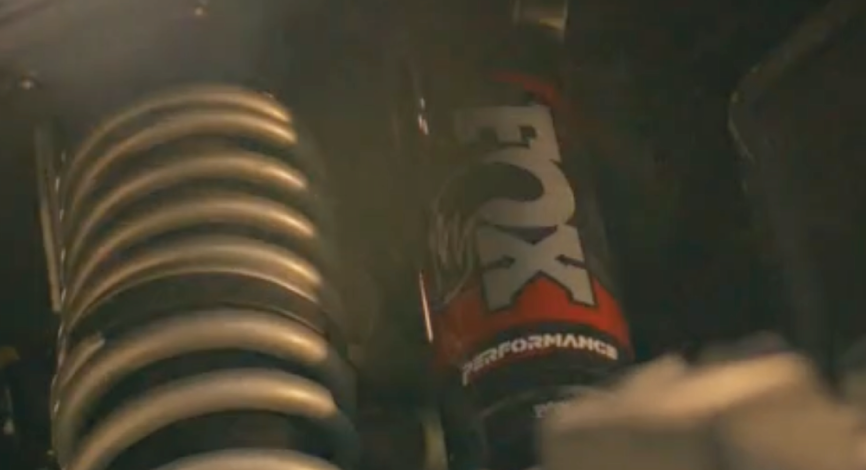

Independent double A-arm with sway bar, FOX 2.5 Live Valve piggyback shocks, Eibach springs, 432 mm (17 in) travel |
|
Rear Suspension |
Independent trailing arm with sway bar, FOX 2.5 Live Valve piggyback shocks, Eibach springs, 508 mm (20 in) travel |
|
Brakes |
Hydraulic aluminum disc brakes, front and rear, 356 mm (14 in) rotors, ABS |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
14-inch aluminum, 5-lug |
|
Tyres |
Pulse XT 30 x 10-14, front and rear, 6-ply |
Components & Features
|
Specification |
Details |
|
Lighting |
CFMOTO LED headlights, taillights, accent lights |
|
Instrument Cluster |
12.3-inch RideSync MMI touchscreen with Apple CarPlay, navigation, rear camera; 7-inch LCD secondary display |
|
Seating |
Four bucket seats (2 rows), vinyl, suspension base, heated, 4/5-point harness cutouts, adjustable driver seat, grab rails |
|
Features |
Multi-function steering wheel (start/stop, suspension/audio/drive mode controls), Electronic Power Steering (EPS, 3 modes: Sport/Trail/Comfort), 3 suspension modes (Soft/Medium/Firm), 4500 lb winch with synthetic rope, half doors, full skid plate, front bumper, tow hooks, AUX control panel, USB port, 12V outlet, rear camera, NFC key, pre-wired for accessories, Euro 5 compliant (where applicable) |
Available Colors
|
Specification |
Details |
|
Colors (2025) |
Lava Orange, Black |
