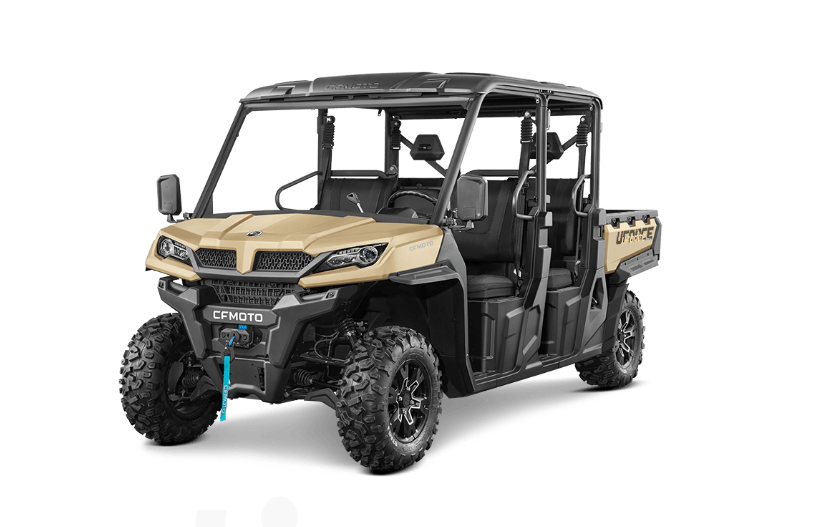

CFMOTO UFORCE 1000 XL 2025 – 6-Seater Utility Side-by-Side UTV
Specifications
|
Specification |
Details |
|
Engine Type |
V-Twin, 4-stroke, liquid-cooled, SOHC, 8-valve |
|
Displacement |
963 cc |
|
Power |
71 hp @ 7000 rpm |
|
Torque |
73.2 Nm (54 lb-ft) @ 6500 rpm |
|
Fuel System |
Electronic fuel injection (EFI), Bosch |
|
Fuel Capacity |
40.1 liters (10.6 gallons) |
|
Transmission |
CVTech Automatic P/R/N/H/L, CVTech IBC clutch |
|
Brakes |
Front: 230 mm hydraulic disc; Rear: Hydraulic disc |
|
Suspension |
Front/Rear: Double wishbone independent, 9.0 in. front travel, 10.0 in. rear travel |
|
Wheel Size |
Front/Rear: 14-inch |
|
Tyres |
Front: 27 x 9-14; Rear: 27 x 11-14 (CST) |
|
Weight |
820 kg (1808 lbs, curb) |
|
Dimensions (LxWxH) |
3759 x 1613 x 1849 mm (148.0 x 63.5 x 72.8 in.) |
|
Wheelbase |
2845 mm (112.0 in.) |
|
Ground Clearance |
290 mm (11.4 in.) |
|
Towing Capacity |
1134 kg (2500 lbs) |
|
Cargo Box Capacity |
454 kg (1000 lbs) |
|
Price |
$15,499 (US, MSRP) (Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Steel frame |
|
Engine Type |
V-Twin, 4-stroke, liquid-cooled, SOHC, 8-valve |
|
Drivetrain |
Selectable 2WD/4WD, locking front differential, limited-slip rear differential, CVTech CVT |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Double wishbone independent, 228.6 mm (9.0 in.) travel, stiffer springs |
|
Rear Suspension |
Double wishbone independent, 254 mm (10.0 in.) travel, variable pitch hydraulic shocks |
|
Front Brake |
Hydraulic disc, 230 mm |
|
Rear Brake |
Hydraulic disc |
|
Steering |
Electronic power steering (EPS), 41-degree adjustable tilt |
Wheels & Tyres
|
Specification |
Details |
|

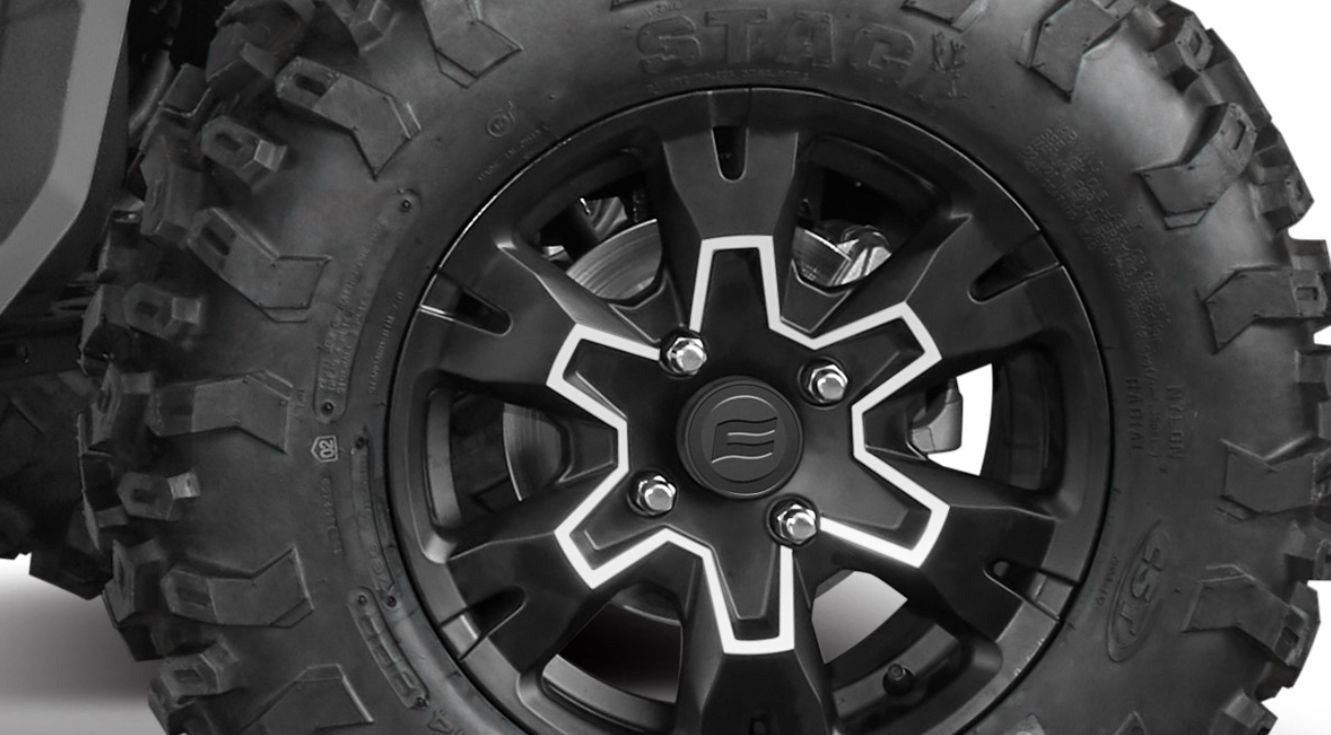

Wheels |
14-inch aluminum rims |
|
Tyres |
Front: 27 x 9-14; Rear: 27 x 11-14 (CST) |
|
Wheel Size |
Front/Rear: 14-inch |
Components & Features
|
Specification |
Details |
|
Seat |

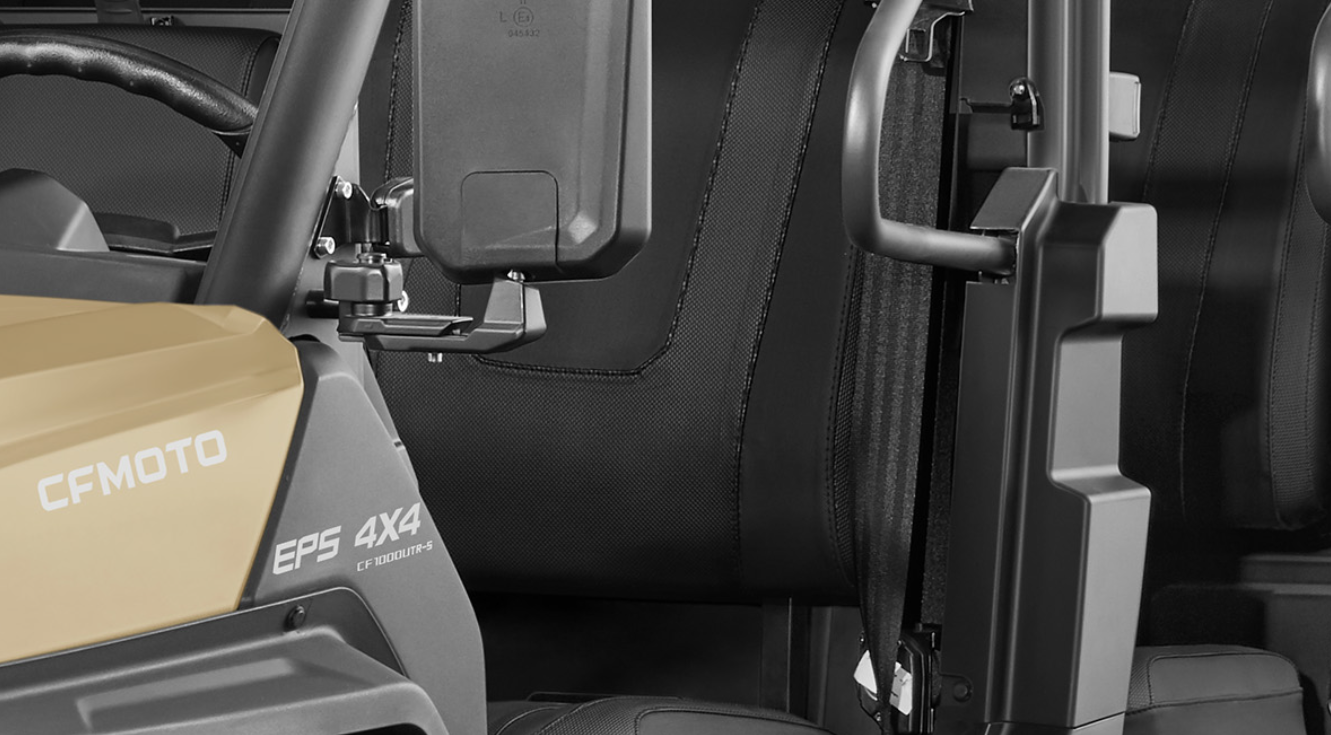

Two 3-person bench seats, foldable center consoles, 4.25 in. front seat travel, under-seat storage |
|
Instrument Cluster |
TFT color display, Bluetooth call indicator, RideSync app integration |
|
Features |

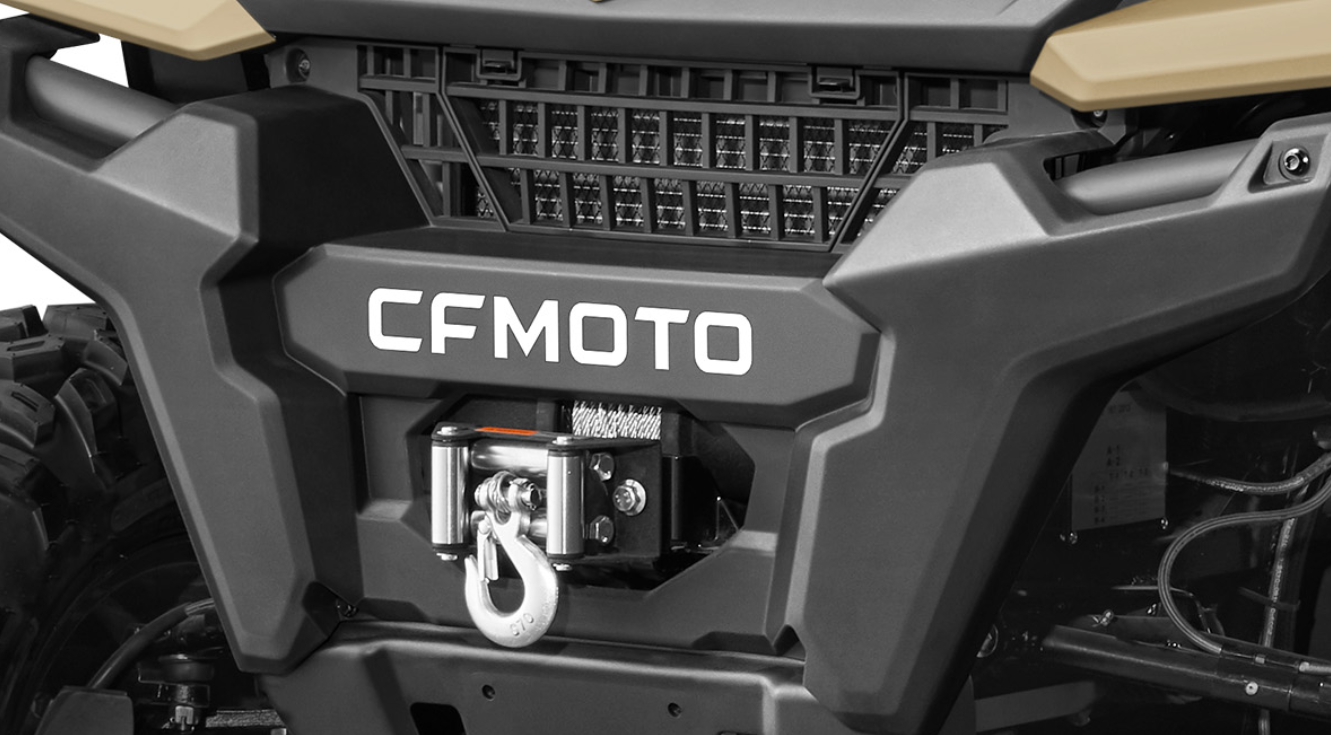

Ridevision LED headlights with DRL, LED taillights, 4500 lb winch, nitrogen gas-assisted dump box, hard rooftop, USB/12V outlets, cupholders, pull-out toolbox |
|
Safety Features |

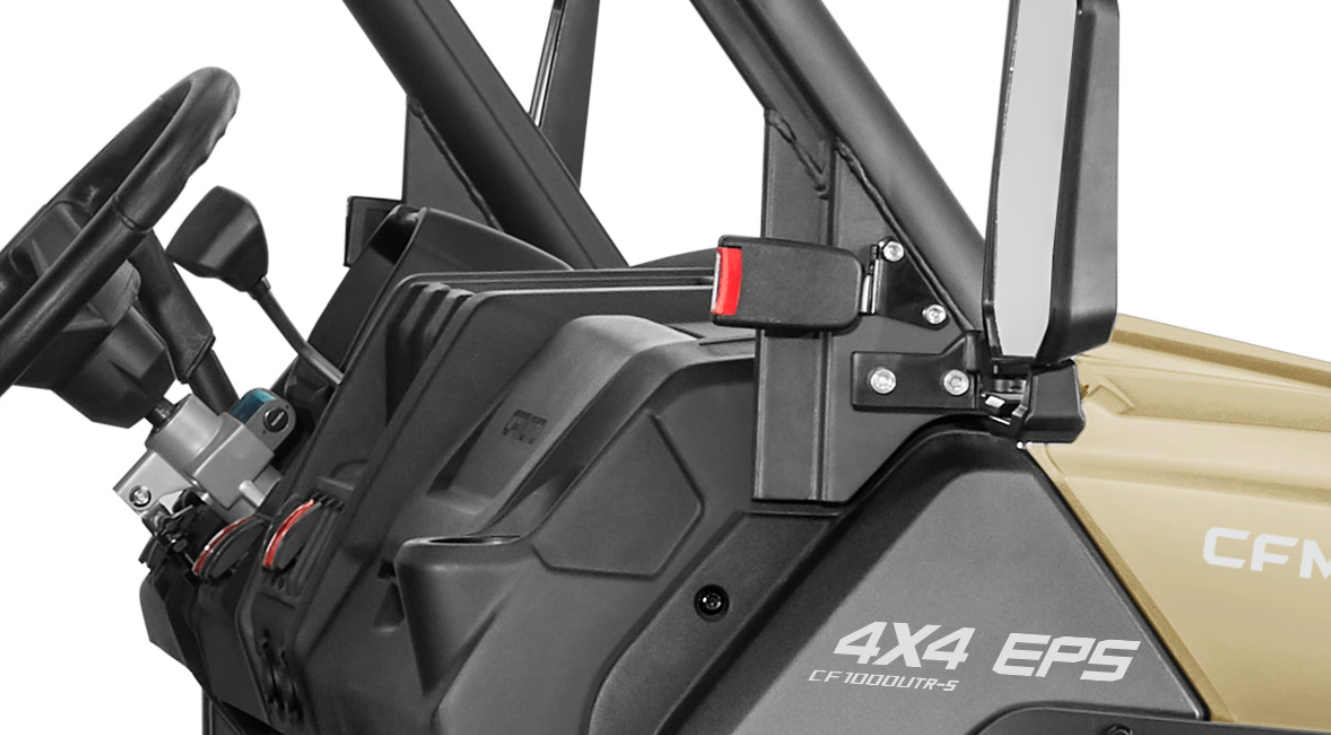

Seat belts, sideview mirrors, limited-slip rear differential, full-length skid plates |
Available Colors
|
Specification |
Details |
|
Colors |
Twilight Blue, Desert Tan, Camo |
