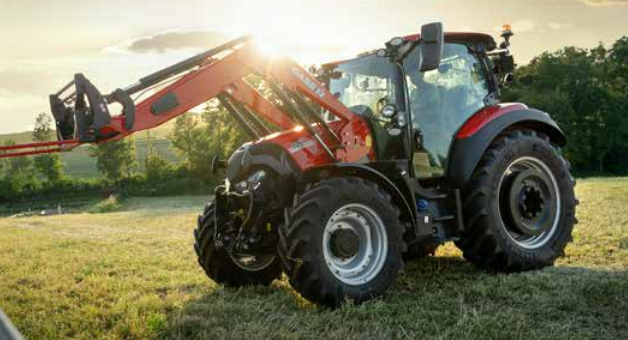

Case IH Vestrum 100 – 4WD Row Crop Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Vestrum 100 |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mixed Farming, Arable Farming, Grassland, Loader Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF, 4 Cylinders, 4,485 cm³, Common Rail Diesel, Turbocharger, HI-eSCR2, EU Stage V |
|
Rated Horsepower |
74 kW / 100 HP @ 2,200 RPM (ECE R120) |
|
Maximum Horsepower |
81 kW / 110 HP @ 1,700-1,900 RPM (ECE R120) |
|
Maximum Torque |
520 Nm @ 1,300 RPM |
|
Torque Rise |
48% |
|
Transmission Type |
CVXDrive Continuously Variable (40 kph ECO) or ActiveDrive 8 24x24 Semi-Powershift (40 kph ECO, Optional 48x48 with Creeper), Powershuttle |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Standard Frame, Loader-Ready Option |
|
Suspension |
Five-Setting Adjustable Cab Suspension, Optional Class 1.75 Front Axle Suspension |
|
Braking System |
Hydraulically Operated Multiple Wet Disc Brake, Self-Adjusting, Optional Front Axle Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
440/65 R28 / 540/65 R38 |
|
Track Setting (Front/Rear) |
1,446-2,154 mm / 1,530-2,154 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Shiftable, Progressive Electrohydraulic Engagement, 540/540E/1,000 (1,969/1,546/1,893 RPM) or Optional 540E/1,000/1,000E (1,546/1,893/1,621 RPM) or 540/1,000 (1,938/1,926 RPM), 1 3/8” 21 Splines (Optional 6 Splines), Optional Auto PTO, Optional Ground Drive |
|
Hydraulic System |
Variable Displacement, Pressure Flow Compensated, 80 l/min (Selection Package) or 110 l/min (Advanced/Professional Packages) @ 200 bar, Up to 4 Electrohydraulic Rear Remote Valves (2 Mechanical Standard), Up to 3 Electrical Mid-Mount Valves, Power Beyond Optional |
|
Rear Lift |
Electronic Hitch Control (EHC), Cushion Ride Control, Cat II/III N, Max Lift Capacity 5,600 kg, OECD Lift Capacity 4,200 kg @ 610 mm |
|
Front Lift |
Optional, Max Lift Capacity 2,300 kg, Optional Front PTO 1,000 RPM @ 1,920 RPM |
|
Cab Options |

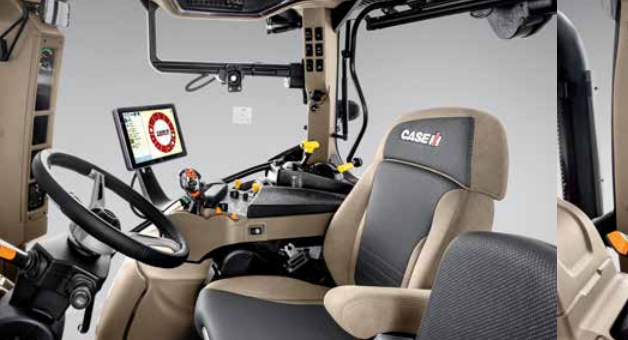

High Roof (2,835 mm), Low Roof (2,690 mm), or Low Roof with Panoramic Window (2,715 mm), 5.9 m² Glass Area, 69 dB(A) Noise Level, Air Conditioning (Manual or Automatic), Optional Heated/Ventilated Red Leather Seat, Passenger Seat, Multicontroller Armrest, AFS Pro 700 Plus 12” Touchscreen (Standard in Advanced/Professional Packages), DAB+ Radio with Hands-Free, Up to 18 LED Work Lights, Chilled Compartment, Monitor Rail with USB Sockets |
|
Fuel Tank Capacity |
180 L (Diesel), 19 L (Urea) |
|
Weight |
Approx. 5,500 kg, Permissible Total Weight 8,800 kg |
|
Wheelbase |
2,490 mm |
|
Length |
4,784 mm (with Front and Rear Lower Links Down) |
|
Height |
2,835 mm (Standard Roof), 2,690 mm (Low Roof), 2,715 mm (Low Roof with Panoramic Window) |
|
Width |
2,228 mm (Across Rear Fenders with Extension) |
|
Loader Compatibility |
T Range (L3917T, L3920T, L4020T, L4023T, L4223T), U Range (L3915U, L3916U, L3920U, L4015U, L4018U, L4022U, S4522U), A Range (L4017A) |
