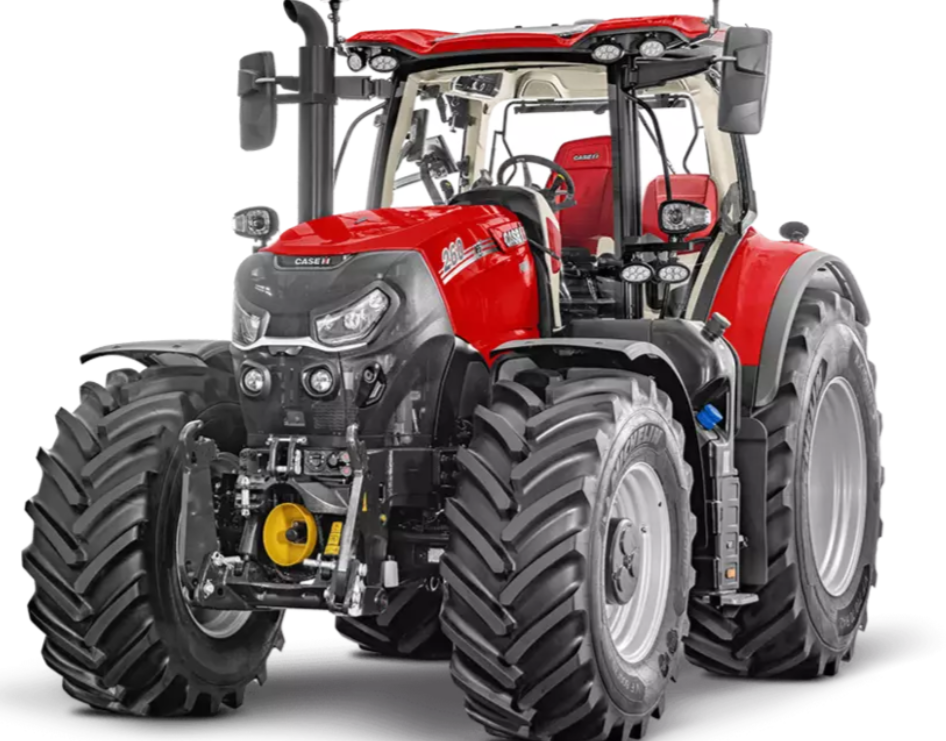

Case IH Puma 260 CVXDrive – 4WD Row Crop Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Puma 260 CVXDrive |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Row Crop Operations, General Farming, Heavy-Duty Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF 67, 6 Cylinders, 6.7 Litre, Turbocharged with Variable Geometry, Stage V |
|
Rated Horsepower |
260 HP (191 kW) @ 2200 RPM (ECE R120) |
|
Maximum Horsepower |
281 HP (207 kW) @ 1800-1900 RPM (ECE R120) |
|
Maximum Horsepower with Power Management |
302 HP (225 kW) @ 1800-1900 RPM (ECE R120, Hydraulic/Mobile PTO/Haulage Applications) |
|
Maximum Torque |
1208.2 Nm @ 1243 RPM (with Power Management), 1089.5 Nm @ 1243 RPM (Standard) |
|
Torque Rise |
28.6% |
|
Transmission Type |
CVXDrive Continuously Variable Transmission, 50 kph @ 1550 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Heavy-Duty Front and Rear Axles |
|
Suspension |
Optional Advanced Vehicle Suspension (AVS) with Synchronized Semi-Active Cab, Rear Hitch, and Front Axle Suspension, Optional Hydraulic Cab Suspension |
|
Braking System |
Hydraulically Operated, Patented Advanced Trailer Brake System for Automatic Stabilization |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Rear) |
Optional 710/70 R42 (2.05 m Diameter, +18% Footprint) |
Components & Features
|
Specification |
Details |
|
Hydraulic System |
150 l/min (Standard), 170 l/min (Optional) @ 205 bar, Colour-Coded Couplings with Release Levers, 30% Fewer Connections |
|
Rear Lift |
Max Lift Capacity 10,463 kg |
|
Front Lift |
Max Lift Capacity 5,622 lb (2,550 kg) for Compatible Loaders |
|
Cab Options |
AFS Connect Cab, 66 dBA, +8% Volume, +11% Glass Area, Semi-Active Hydro-Pneumatic Suspension, AFS Pro 1200 Touchscreen, MultiControl Armrest, Keyless Entry, Premium Sound with Subwoofer, Coolbox, Increased Storage |
|
Fuel Tank Capacity |
460 L (124 gal) Diesel, 54 L AdBlue, +15% Capacity |
|
Weight |
Gross Vehicle Weight 14,500 kg, Measured 11,340 kg (Full Tank, 250 kg Rear Wheel Weights), 41% Front/59% Rear Distribution, Payload 3,160 kg |
|
Wheelbase |
2,884 mm |
|
Telematics |
AFS Connect with 5-Year Subscription, MyCaseIH Portal, FieldOps Mobile App, Real-Time Data Monitoring, Remote Support, Tractor Implement Management (TIM), AFS Vector Pro Receiver, Vision Pro Operating System |
|
Safety Features |
Advanced Trailer Brake System, Up to 24 LED Lights, Advanced Vehicle Suspension (AVS), Wider Steps, Grab Handles, 240° Windscreen Wiper, Hand-Wash Reservoir |
