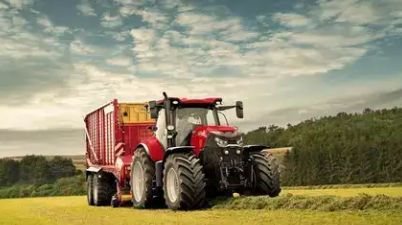

Case IH Puma 200 CVXDrive – 4WD Row Crop Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Puma 200 CVXDrive |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mixed Farming, Arable Farming, Contracting |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

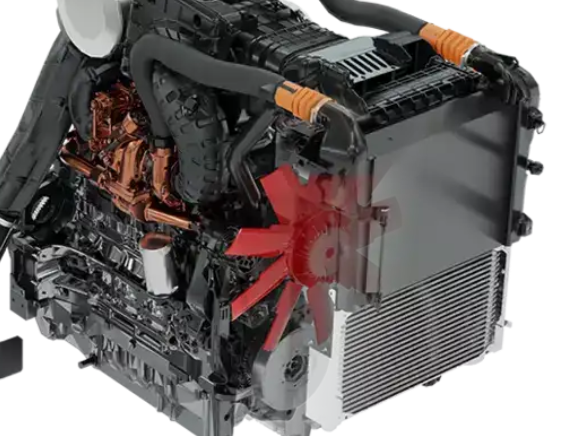

FPT, 6 Cylinders, 6700 cm³, Common Rail Diesel, Turbocharger with Intercooler and Wastegate, HI-eSCR2, Stage V |
|
Rated Horsepower |
200 HP (147 kW) @ 2200 RPM (ECE R120) |
|
Maximum Horsepower |
220 HP (162 kW) @ 1800 RPM (ECE R120) |
|
Maximum Horsepower with Power Management |
245 HP (180 kW) @ 1800-1900 RPM (ECE R120, Hydraulic/Mobile PTO/Haulage Applications) |
|
Maximum Torque |
1035 Nm (Power Management), 930 Nm (Standard) @ 1500 RPM |
|
Torque Rise |
46% (Standard), 44% (Power Management) |
|
Transmission Type |
CVXDrive Continuously Variable, 40 kph ECO or 50 kph @ 1550 RPM, Powershuttle, Active Hold Control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Optional Engine Block Side Frame |
|
Suspension |
Standard Cab Suspension, Active Front Axle Suspension (Class 4R, 105 mm Travel) |
|
Braking System |
Hydraulically Operated Multiple Wet Disc Brake, Self-Adjusting, Electronic Parking Brake, Optional Advanced Trailer Brake, Optional ABS |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
600/65 R28 / 650/65 R42 |
|
Track Setting (Front/Rear) |
1538-2260 mm / 1530-2230 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Shiftable, Electro-Hydraulic, 540/540E/1000/1000E (1931/1598/1912/1583 RPM), Optional 540E/1000 or 1000/1000E, Shaft: 1 3/8” 21 Splines (Optional 6 or 20 Splines), Optional Auto-PTO |
|
Hydraulic System |
Variable Displacement, Pressure Flow Compensated, 150 l/min (Standard) or 170 l/min (Optional) @ 210 bar, Up to 5 Electrical Rear Remote Valves, Up to 3 Electrical Mid-Mount Valves, Power Beyond Optional |
|
Rear Lift |
Electronic Hitch Control (EHC), Cushion Ride Control, Cat II-III Quick Adjust, Max Lift Capacity 10,463 kg, OECD Lift Capacity 7,280 kg @ 610 mm |
|
Front Lift |
Optional, Max Lift Capacity 5,129 kg, Optional Front PTO 1000 @ 1833 RPM |
|
Cab Options |
Standard Cab with Air Conditioning, Passenger Seat, Premium Leather Seat with Active Suspension (Optional), Multicontroller Armrest, AFS Pro 700 Touchscreen (Optional), HMC II, ISOBUS III (TIM), Low-Mounted Wiper (+60% Coverage), RAM Mountings, USB Sockets, Hand Wash Tank, Up to 20 LED Lights (40,000 Lumens), Integrated Cool Box |
|
Fuel Tank Capacity |
390 L (Diesel), 48 L (Urea) |
|
Weight |
Approx. 6,950 kg (Standard), 7,300 kg (Suspended Front Axle), Permissible Total Weight 14,000 kg |
|
Wheelbase |
2,884 mm |
|
Length |
5,467 mm |
|
Height |
3,068 mm |
|
Width |
2,060 mm (Narrow Fender), 2,476 mm (Wide Fender) |
