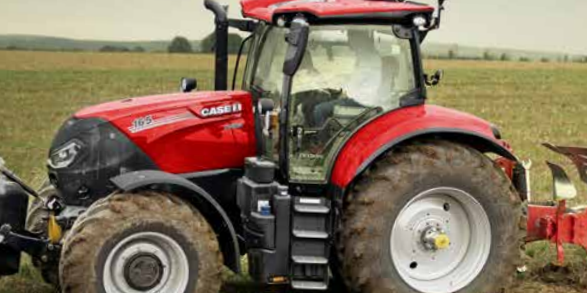

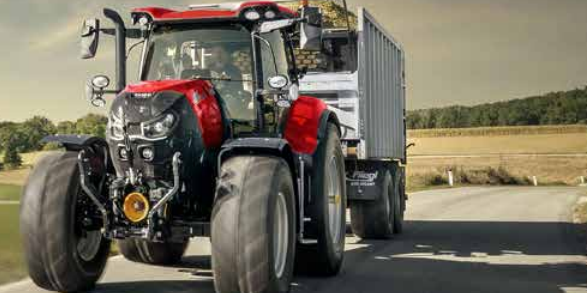

Case IH Puma 175 CVXDrive – 4WD Row Crop Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Puma 175 CVXDrive |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mixed Farming, Arable Farming, Contracting |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT, 6 Cylinders, 6700 cm³, Common Rail Diesel, Turbocharger with Intercooler and Wastegate, HI-eSCR2, Stage V |
|
Rated Horsepower |
180 HP (132 kW) @ 2200 RPM (ECE R120) |
|
Maximum Horsepower |
200 HP (147 kW) @ 1800 RPM (ECE R120) |
|
Maximum Horsepower with Power Management |
224 HP (165 kW) @ 1800-1900 RPM (ECE R120, Hydraulic/Mobile PTO/Haulage Applications) |
|
Maximum Torque |
940 Nm (Power Management), 840 Nm (Standard) @ 1500 RPM |
|
Torque Rise |
46% (Standard), 44% (Power Management) |
|
Transmission Type |
CVXDrive Continuously Variable, 40 kph ECO or 50 kph, Powershuttle, Active Hold Control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Optional Engine Block Side Frame |
|
Suspension |
Standard Cab Suspension, Standard Front Axle Suspension (Class 3.5, 105 mm Travel) |
|
Braking System |
Hydraulically Operated Multiple Wet Disc Brake, Self-Adjusting, Optional Advanced Trailer Brake, Optional Exhaust Brake, Electronic Parking Brake |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
540/65 R28 / 650/65 R38 |
|
Track Setting (Front/Rear) |
1325-2285 mm / 1430-2230 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Shiftable, Electro-Hydraulic, 540/540E/1000 (1969/1546/1893 RPM), Optional 540E/1000/1000E (1592/1893/1621 RPM), Shaft: 1 3/8” 21 Splines (Optional 6 or 20 Splines), Optional Auto-PTO, Optional Ground Drive |
|
Hydraulic System |
Variable Displacement, Pressure Flow Compensated, 140 l/min (Standard) or 160 l/min (Optional) @ 210 bar, Up to 5 Electrical Rear Remote Valves, Up to 3 Electrical Mid-Mount Valves, Power Beyond Optional |
|
Rear Lift |
Electronic Hitch Control (EHC), Cushion Ride Control, Cat II-III, Max Lift Capacity 8,257 kg, OECD Lift Capacity 6,616 kg @ 610 mm |
|
Front Lift |
Standard, Max Lift Capacity 3,568 kg, Optional Front PTO 1000 @ 1895 RPM |
|
Cab Options |
Standard Cab with Air Conditioning, Passenger Seat, Optional Low Roof (2,914 mm) or Standard Roof (3,026 mm), Premium Leather Seat with Active Suspension (Optional), Multicontroller Armrest, AFS Pro 700 Plus Touchscreen (Standard), HMC II, ISOBUS III (Optional), Low-Mounted Wiper (+60% Coverage), Monitor Rail, Up to 20 LED Lights (30,000 Lumens), Integrated Cool Box, Noise Level 69 dB(A) |
|
Fuel Tank Capacity |
330 L (Diesel), 48 L (Urea) |
|
Weight |
Approx. 7,528 kg, Permissible Total Weight 11,500 kg |
|
Wheelbase |
2,734 mm (Standard), 2,789 mm (Suspended Front Axle) |
|
Length |
5,240 mm (Standard), 5,316 mm (Suspended Front Axle) |
|
Height |
2,914 mm (Low Roof), 3,026 mm (Standard Cab) |
|
Width |
2,060 mm (Narrow Fender), 2,476 mm (Wide Fender) |
