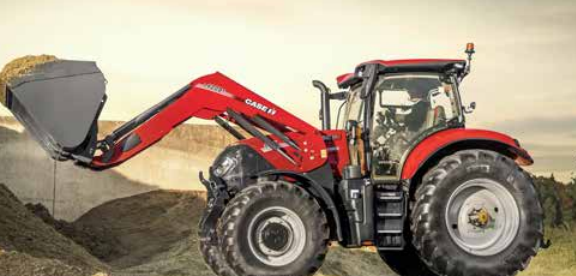

Case IH Puma 150 Multicontroller – 4WD Row Crop Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Puma 150 Multicontroller |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mixed Farming, Arable Farming |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT, 6 Cylinders, 6700 cm³, Common Rail Diesel, Turbocharger with Intercooler and Wastegate, HI-eSCR2, Stage V |
|
Rated Horsepower |
150 HP (110 kW) @ 2200 RPM (ECE R120) |
|
Maximum Horsepower |
165 HP (121 kW) @ 1800 RPM (ECE R120) |
|
Maximum Horsepower with Power Management |
190 HP (140 kW) @ 1800-1900 RPM (ECE R120, Hydraulic/Mobile PTO/Haulage Applications) |
|
Maximum Torque |
805 Nm (Power Management), 700 Nm (Standard) @ 1500 RPM |
|
Torque Rise |
46% (Standard), 44% (Power Management) |
|
Transmission Type |
ActiveDrive 6 Semi-Powershift or PowerDrive Full Powershift, 18x6 or 19x6, 40 kph or 40 kph ECO or 50 kph, Powershuttle, Optional Creeper (as low as 200 m/h) |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Optional Engine Block Side Frame |
|
Suspension |
Standard Cab Suspension, Standard Front Axle Suspension (Class 3.5, 105 mm Travel) |
|
Braking System |
Hydraulically Operated Multiple Wet Disc Brake, Self-Adjusting |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
540/65 R28 / 650/65 R38 |
|
Track Setting (Front/Rear) |
1325-2285 mm / 1430-2230 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Shiftable, Electro-Hydraulic, 540/540E/1000 (1969/1546/1893 RPM), Optional 540E/1000/1000E (1592/1893/1621 RPM), Shaft: 1 3/8” 21 Splines (Optional 6 or 20 Splines), Optional Auto-PTO, Optional Ground Drive |
|
Hydraulic System |
Variable Displacement, Pressure Flow Compensated, 110 l/min (Standard) or 150 l/min (Optional) @ 210 bar, Up to 4 Mechanical or 5 Electrical Rear Remote Valves, Up to 3 Electrical Mid-Mount Valves, Power Beyond Optional |
|
Rear Lift |
Electronic Hitch Control (EHC), Cushion Ride Control, Cat II-III, Max Lift Capacity 8,257 kg, OECD Lift Capacity 6,616 kg @ 610 mm |
|
Front Lift |
Optional, Max Lift Capacity 3,568 kg, Optional Front PTO 1000 @ 1895 RPM |
|
Cab Options |
Standard Cab with Air Conditioning, Passenger Seat, Optional Low Roof (2,914 mm) or Standard Roof (3,026 mm), Premium Leather Seat with Active Suspension (Optional), Multicontroller Armrest, AFS Pro 700 Plus Touchscreen (Standard), HMC II, ISOBUS II (Optional), Low-Mounted Wiper (+60% Coverage), Monitor Rail, Up to 20 LED Lights (30,000 Lumens), Integrated Cool Box, Noise Level 69 dB(A) |
|
Fuel Tank Capacity |
330 L (Diesel), 48 L (Urea) |
|
Weight |
Approx. 7,319 kg, Permissible Total Weight 10,500 kg |
|
Wheelbase |
2,734 mm (Standard), 2,789 mm (Suspended Front Axle) |
|
Length |
5,240 mm (Standard), 5,316 mm (Suspended Front Axle) |
|
Height |
2,914 mm (Low Roof), 3,026 mm (Standard Cab) |
|
Width |
2,060 mm (Narrow Fender), 2,476 mm (Wide Fender) |
