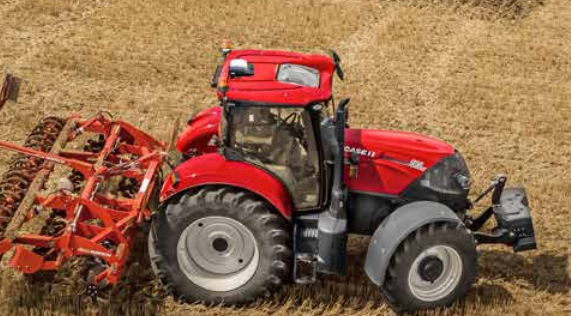

Case IH Puma 140 – 4WD Row Crop Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Puma 140 |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Livestock Farming, General Farming |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT, 6 Cylinders, 6700 cm³, Common Rail Diesel, Turbocharger with Intercooler and Wastegate, HI-eSCR2, Stage V |
|
Rated Horsepower |
140 HP (103 kW) @ 2200 RPM (ECE R120) |
|
Maximum Horsepower |
155 HP (114 kW) @ 1800 RPM (ECE R120) |
|
Maximum Horsepower with Power Management |
175 HP (129 kW) @ 1800-1900 RPM (ECE R120, Hydraulic/Mobile PTO/Haulage Applications) |
|
Maximum Torque |
750 Nm (Power Management), 655 Nm (Standard) @ 1500 RPM |
|
Torque Rise |
47% (Standard), 47% (Power Management) |
|
Transmission Type |
ActiveDrive 6 Semi-Powershift, 18x6 or 19x6, 40 kph or 40 kph ECO or 50 kph, Powershuttle, Optional Creeper (as low as 200 m/h) |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Optional Engine Block Side Frame |
|
Suspension |
Standard Cab Suspension, Optional Front Axle Suspension (Class 3.5, 105 mm Travel) |
|
Braking System |
Hydraulically Operated Multiple Wet Disc Brake, Self-Adjusting |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
540/65 R28 / 650/65 R38 |
|
Track Setting (Front/Rear) |
1325-2285 mm / 1430-2230 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Shiftable, Electro-Hydraulic, 540/540E/1000 (1969/1546/1893 RPM), Optional 540E/1000/1000E (1592/1893/1621 RPM), Shaft: 1 3/8” 21 Splines (Optional 6 or 20 Splines), Optional Auto-PTO, Optional Ground Drive |
|
Hydraulic System |
Variable Displacement, Pressure Flow Compensated, 110 l/min @ 210 bar, Up to 4 Mechanical Rear Remote Valves, Up to 3 Electrical Mid-Mount Valves, Power Beyond Optional |
|
Rear Lift |
Electronic Hitch Control (EHC), Cushion Ride Control, Cat II-III, Max Lift Capacity 8,257 kg, OECD Lift Capacity 6,616 kg @ 610 mm |
|
Front Lift |
Optional, Max Lift Capacity 3,568 kg, Optional Front PTO 1000 @ 1895 RPM |
|
Cab Options |
Standard Cab with Air Conditioning, Passenger Seat, Optional Low Roof (2,914 mm) or Standard Roof (3,026 mm), Optional Heated and Ventilated Red Leather Seat, AFS Pro 700 Plus Touchscreen (Optional), Low-Mounted Wiper (+60% Coverage), Monitor Rail for Smartphones/Tablets, Up to 20 LED Lights (30,000 Lumens), Integrated Cool Box, Noise Level 69 dB(A) |
|
Fuel Tank Capacity |
330 L (Diesel), 48 L (Urea) |
|
Weight |
Approx. 7,256 kg, Permissible Total Weight 10,500 kg |
|
Wheelbase |
2,734 mm (Standard), 2,789 mm (Suspended Front Axle) |
|
Length |
5,240 mm (Standard), 5,316 mm (Suspended Front Axle) |
|
Height |
2,914 mm (Low Roof), 3,026 mm (Standard Cab) |
|
Width |
2,060 mm (Narrow Fender), 2,476 mm (Wide Fender) |
