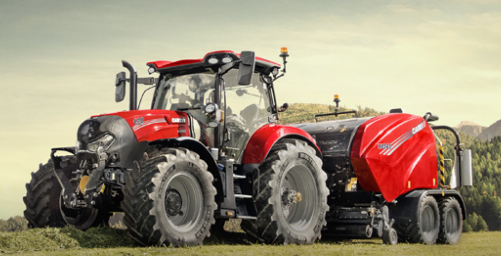

Case IH Maxxum 150 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Maxxum 150 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Loader Work, Field Operations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT, 6 Cylinders, 6728 cm³, Common Rail Diesel, Turbocharger, HI-eSCR2, Stage V |
|
Maximum Horsepower |
175 HP (129 kW) @ 1800-1900 RPM (Power Management) |
|
Rated Horsepower |
150 HP (110 kW) @ 2200 RPM |
|
Maximum Torque |
740 Nm (Power Management), 650 Nm (Standard) @ 1500 RPM |
|
Torque Rise |
40% (Standard), 40% (Power Management) |
|
Transmission Type |
ActiveDrive 4 (16F/16R or 17F/16R), ActiveDrive 8 (24F/24R or 48F/48R with Creeper), or CVXDrive Continuously Variable (40/50 kph ECO), Powershuttle |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Optional Engine Block Side Frame |
|
Suspension |
Optional Mechanical Cab Suspension, Optional (Standard on CVXDrive) Class 3.5 Front Axle Suspension (105 mm Travel) |
|
Braking System |
Hydraulically Operated Multiple Wet Disc Brake, Self-Adjusting, Optional Exhaust Brake, Optional Advanced Trailer Brake (CVXDrive), Optional Trailer Braking (Air or Hydraulic) |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
480/65 R28 / 600/65 R38 |
|
Track Setting (Front/Rear) |
1580-2256 mm / 1430-2134 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Shiftable, Electro-Hydraulic, 540/540E/1000 (1969/1546/1893 RPM), Optional 540E/1000/1000E (1592/1893/1621 RPM), Optional Ground Drive, Optional Front PTO 1000 @ 1895 RPM |
|
Hydraulic System |
Fixed (86 l/min) or Variable Displacement (121/150 l/min), Up to 4 Mechanical or Electrical Rear Remote Valves, Up to 2 Mechanical or 3 Electrical Mid-Mount Valves, Power Beyond Optional |
|
Rear Lift |
Electronic Hitch Control, Cushion Ride Control, Cat II/III, Max Lift Capacity 7115 kg (86 l/min) or 7864 kg (121/150 l/min), OECD Lift Capacity 4781 kg (86 l/min) or 5284 kg (121/150 l/min) @ 610 mm |
|
Front Lift |
Optional, Max Lift Capacity 2800 kg (86 l/min) or 3100 kg (121/150 l/min) |
|
Cab Options |
Low or Standard Roof, Deluxe Air Suspension, Dual Motion, or Maximo Evolution Alcantara Leather Seat, Multicontroller Armrest (CVXDrive/Multicontroller), Optional HMC II, AFS Pro 700 Plus, AFS AccuGuide, ISOBUS II/III (CVXDrive/Multicontroller) |
|
Fuel Tank Capacity |
250 L (Standard), 210 L (Optional), 39.5 L (AdBlue) |
|
Weight |
Approx. 5020 kg (Standard), 5320 kg (Suspended Front Axle), Permissible Total Weight 9500-10500 kg |
|
Wheelbase |
2642 mm (Standard), 2684 mm (Suspended Front Axle) |
|
Length |
5137 mm (Standard), 5189 mm (Suspended Front Axle) |
|
Height |
2887 mm (Low Roof), 3005 mm (Standard Cab), 3025 mm (Suspended Cab) |
|
Width |
2470 mm (Across Rear Fenders with 150 mm Extension) |
