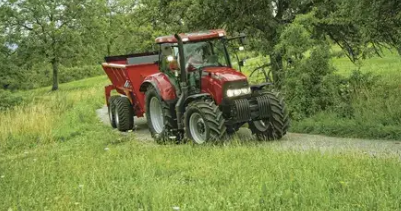

Case IH Maxxum 110 Tier 3 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Maxxum 110 Tier 3 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Field Operations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Case IH FPT, 4 Cylinders, Turbocharged and Intercooled, Mechanical Injection, 4.5 L, Tier 3 |
|
Rated Horsepower |
112 HP (82 kW) @ 2200 RPM |
|
Maximum Torque |
510 Nm @ 1250 RPM |
|
Torque Rise |
43% |
|
Transmission Type |
24F/24R Hi/Lo Powershift (Standard), Optional 16F/16R Semi Powershift or 12F/12R Synchro Mesh, Optional Creeper 48F/48R, 32F/32R, or 24F/24R |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulically Operated Multiple Wet Disc Brake, Self-Adjusting |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres (Front/Rear) |
380/85R24 / 460/85R34 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Electro-Hydraulic, 540/1000 @ 1830 RPM, Shaft Type: 1 3/8” 21 Splines |
|
Hydraulic System |
Fixed Displacement or CCLS, 63/80/113 l/min @ 210 bar, Total Tractor Flow 103/120/153 l/min, Steering/Service Pump 40 l/min |
|
Rear Lift |
Cat II Fixed or Cat II/III Quick Attach, Max Lift Capacity 5678-6218 kg @ Hook End |
|
Front Lift |
Optional, Max Lift Capacity 3550 kg @ Hook End, Optional Front PTO 1000 @ 2120 RPM |
|
Cab Options |
Cab MFD, 4740 kg |
|
Fuel Tank Capacity |
176 L |
|
Weight |
Approx. 4340 kg (ROPS MFD), 4740 kg (Cab MFD), Max Permissible Rear Weight 4790-4950 kg |
|
Wheelbase |
2412 mm (4WD) |
|
Length |
4292 mm (Carrier Only) |
|
Width |
2170 mm (Minimum) |
