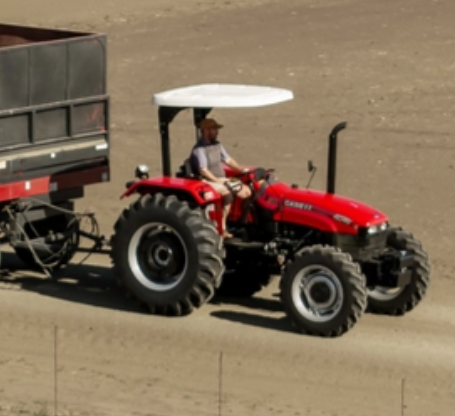

Case IH JX75T – 2WD/4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
JX75T |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Small Farms, Utility Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT S8000, 4 Cylinders, Tier 1: Naturally Aspirated; Tier 3: Turbocharged, 3908 cm³, Tier 1 (Tier 3 Optional) |
|
Maximum Horsepower |
75 HP (55 kW) @ 2500 RPM |
|
Maximum Torque |
257 Nm (Tier 1), 290 Nm (Tier 3) @ 1400 ± 100 RPM |
|
Transmission Type |
Constant Mesh, 8F/2R, Optional Partial Synchromesh 12F/3R (with or without Creeper) |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Wet Brakes on Rear Axle |
Wheels & Tyres
|
Specification |
Details |
|
Front Track Width (2WD/4WD) |
1410-1910 mm / 1545-1875 mm |
|
Rear Track Width |
1520-2033 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Double Clutch, Independent, 540 RPM, Optional 540E (12F/3R Tier 3 only) |
|
Hydraulic System |
Open Centre, 45 l/min @ 210 bar, Position/Draft/Mix Control, Lift-O-Matic |
|
Rear Lift |
Mechanical, Top Link Sensor, Max Lift Capacity 1,500 kg (2,000 kg with Assister Ram) |
|
Cab Options |
ROPS, Optional Canopy, Optional DeLuxe Seat with Bottle Holder |
|
Fuel Tank Capacity |
62 L |
|
Weight |
2,450 kg (2WD ROPS), 2,575 kg (4WD ROPS) |
|
Wheelbase |
2,200 mm (2WD), 2,160 mm (4WD) |
|
Ground Clearance (Front Axle) |
500 mm (2WD), 410 mm (4WD) |
|
Ground Clearance (Rear Axle) |
555 mm |
|
Height (Exhaust) |
2,375 mm (2WD), 2,385 mm (4WD) |
