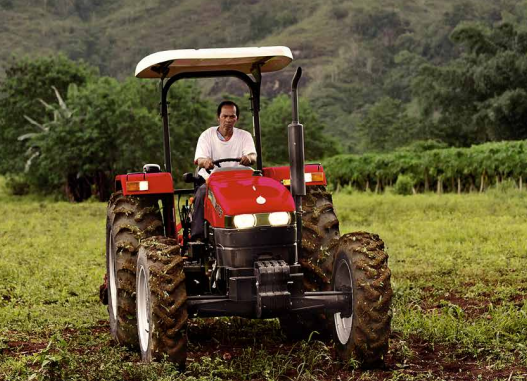

Case IH JX35T – 2WD/4WD Compact Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
JX35T |
|
Vehicle Category |
Compact Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Small Farms, Utility Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Simpson, 3 Cylinders, Naturally Aspirated, 2365 cm³, Tier 2 |
|
Maximum Horsepower |
35 HP (26 kW) @ 2500 RPM |
|
Maximum Torque |
142 Nm @ 1400 RPM |
|
Transmission Type |
Constant Mesh, 8F/2R, Optional 8F/8R |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Wet Brakes on Rear Axle |
Wheels & Tyres
|
Specification |
Details |
|
Front Track Width (2WD/4WD) |
1414 mm / 1532 mm |
|
Rear Track Width |
1368 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Double Clutch, Independent, 540 RPM, Optional 540E, Ground Speed PTO |
|
Hydraulic System |
Open Centre, 29 l/min @ 210 bar, Position/Draft/Mix Control, Lift-O-Matic |
|
Rear Lift |
Mechanical, Top Link Sensor, Max Lift Capacity 1,500 kg |
|
Cab Options |
ROPS, Optional Canopy, Optional DeLuxe Seat with Bottle Holder |
|
Fuel Tank Capacity |
62 L |
|
Weight |
1,710 kg (2WD ROPS), 2,255 kg (4WD ROPS) |
|
Wheelbase |
1,910 mm (2WD), 1,990 mm (4WD) |
|
Ground Clearance (Front Axle) |
370 mm (2WD), 405 mm (4WD) |
|
Ground Clearance (Rear Axle) |
410 mm |
|
Height (Exhaust) |
2,270 mm (2WD), 2,350 mm (4WD) |
