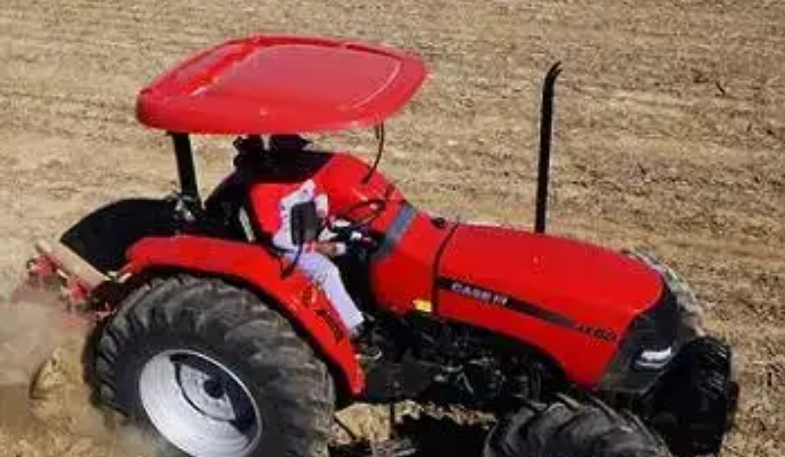

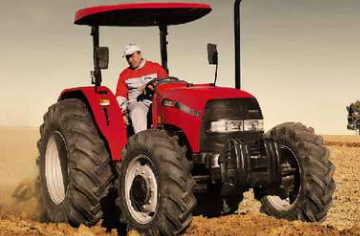

Case IH JX 80 Straddle – 2WD/4WD Utility Tractor for Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
JX 80 Straddle |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Orchard, and Vineyard Operations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 Cylinders, Naturally Aspirated, 3908 cm³, Tier 2 |
|
Maximum Horsepower |
80 HP (59 kW) @ 2500 RPM |
|
Maximum Torque |
298 Nm @ 1500 RPM |
|
Transmission Type |
12x12 Mechanical, Optional 12x12 with Creeper |
Wheels & Tyres
|
Specification |
Details |
|
Front Track Width (2WD/4WD) |
1405-1905 mm / 1560-2000 mm |
|
Rear Track Width |
1400-2000 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Mechanical, 540 RPM (2200 RPM), 540E (1715 RPM), Optional 540/1000 RPM (2380 RPM) |
|
Hydraulic System |
Main Pump Flow 41 l/min (Standard), 51.7 l/min (Optional), Direction Pump Flow 26.5 l/min, 2-3 Auxiliary Hydraulic Valves |
|
Rear Lift |
Mechanical Draft Control, Category I-II, Max Lift Capacity 3565 kg, Constant Lift Capacity 2700 kg (610 mm behind ball hitch) |
|
Cab Options |
ROPS |
|
Fuel Tank Capacity |
77 L |
|
Weight |
2650 kg (2WD), 3080 kg (4WD), Total Permissible Load 5800 kg |
|
Wheelbase |
2248 mm (2WD), 2192 mm (4WD) |
|
Ground Clearance |
525 mm (2WD), 390 mm (4WD) |
|
Length |
3921 mm (2WD), 3865 mm (4WD) |
|
Height |
2483 mm (ROPS) |
