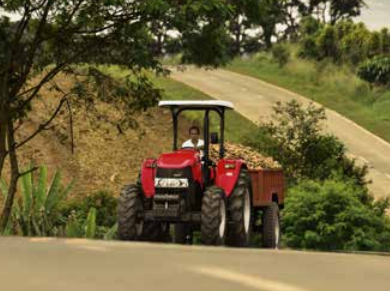

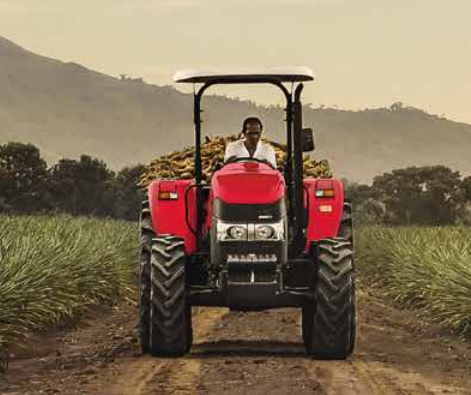

Case IH Farmall JXM 65 – 2WD/4WD Utility Tractor for Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Farmall JXM 65 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Vegetable Planting, Harvesting, Loader Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
IVECO S8000, 3 Cylinders, Turbocharged Aftercooled, 2.9 L, Tier III |
|
Maximum Horsepower |
65 HP (48.5 kW) @ 2300 RPM |
|
Maximum Torque |
265 Nm @ 1400 RPM |
|
Transmission Type |
8x8 or 12x12 Mechanical Synchroshuttle, Optional 20x20 with Creeper, Optional 12x12/20x20 Power Shuttle |
|
Clutch |
Organic or Cerametallic Components |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Heavy-Duty Compact Frame |
|
Braking System |
Mechanically Actuated Wet Disc Brakes, Oil Immersed Multi-Disc |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent, 540 RPM (Optional: 540/540E, 540/1000), Mechanical PTO Clutch |
|
Hydraulic System |
Open-Centre, Main Pump Flow 45 l/min (Optional 54/60 l/min), Steering Pump Flow 26/31 l/min, Up to 3 Rear Remote Valves |
|
Rear Lift |
Mechanical Draft Control (Position, Draft, Mixed), Lift Capacity 2000 kg (Standard), 2500 kg (Maximum) |
|
Weight |
2730 kg (2WD), 2810 kg (4WD) |
|
Fuel Tank Capacity |
90 L |
|
Ground Clearance |
504 mm (2WD), 390 mm (4WD) |
|
Wheelbase |
2200 mm (2WD), 2145 mm (4WD) |
|
Width |
2041 mm |
|
Overall length |
3875 mm |
