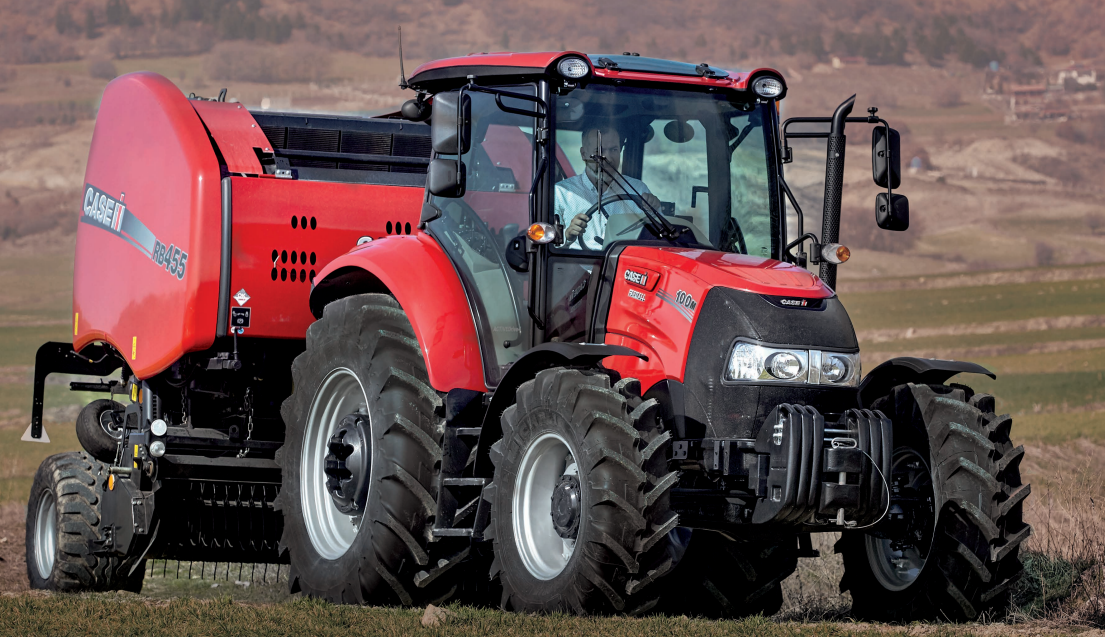

Case IH Farmall 110 M ActiveDrive 4 – 4WD Utility Tractor for Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Farmall 110 M ActiveDrive 4 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Subsoil Work, Heavy Agricultural Attachments |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
S8000, 4 Cylinders, Turbo-Intercooler, 3908 cm³, Tier III |
|
Maximum Horsepower |
110 HP |
|
Maximum Torque |
430 Nm @ 1400 RPM |
|
Transmission Type |
ActiveDrive 4 Semi-Powershift, 32 Forward + 32 Reverse, Electro-Hydraulic Power Shuttle, Optional Waterproof Transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Options) |
1. 11.2R28 / 14.9R38, 2. 13.6R24 / 16.9R34, 3. 14.9R24 / 18.4R34, 4. 13.6R28 / 16.9R38 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Electro-Hydraulic, 540/540E/1000 RPM, Auto PTO, Fender-Mounted Controls |
|
Hydraulic System |
Electronic Draft Control, Lift Capacity 5400 kg, 6 Hydraulic Outlets, Fender-Mounted Controls, Optional Hydraulic Top Link |
|
Rear Lift |
Electronic Draft Control, Lift Capacity 5400 kg |
|
Electrical System |
Electronic Battery Isolator (Standard) |
|
Weight |
4220 kg |
|
Cab Options |
Standard: Spacious Cab with Air Conditioning, Air-Suspension Seat, Bluetooth Radio, Sunroof |
|
Fuel Tank Capacity |
155 L |
|
Wheelbase |
2519 mm |
|
Width |
1560-2090 mm (Track-Dependent) |
