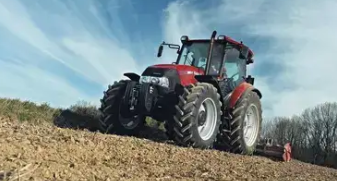

Case IH Farmall 110 JX – 4WD Utility Tractor for Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Farmall 110 JX |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Loader Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
S8000, 4 Cylinders, Turbo-Intercooler, 2 Valves, 3908 cm³, Tier 3 |
|
Maximum Horsepower |
110 HP (81 kW) @ 2300 RPM |
|
Maximum Torque |
430 Nm @ 1400 RPM |
|
Transmission Type |
12x12 Synchro Shuttle™ or Hydraulic Powershuttle, Minimum Speed 1.79 kph |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Rear Options) |
16.9R38, 480/70R30, 420/70R30, 16.9R30, 480/70R34, 12.4R36, 16.9R34, 18.4R34, 13.6R36 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Ground Speed, 540 RPM |
|
Hydraulic System |
Main Pump Flow 40.1 l/min, MegaFlow™ 51.7 l/min, Steering and Services Pump Flow 28 l/min, Max 3 Rear Remotes, Max 2 Mid-Mount Valves |
|
Rear Lift |
Mechanical Draft Control, Max Lift Capacity 3565 kg |
|
Loader Compatibility |
Front Loader Ready, Factory Fitted Loader Capacity 2700 kg |
|
Cab Options |
VisionView™ Cab, High Visibility Roof Panel (Mandatory with Loader), Air Conditioning, Standard Air Suspension Seat with Seat Belt, Instructor Seat with Seat Belt, Tiltable Steering Column, Radio Ready, MP3 Radio with Aux Input |
|
Fuel Tank Capacity |
110 L |
|
Weight |
3650 kg (ROPS 4WD), 3900 kg (Cab 4WD) |
|
Ground Clearance |
465 mm (Under Front Axle), 500 mm (Under Rear Drawbar/Hitch) |
|
Wheelbase |
2422 mm (4WD) |
|
Width |
1910 mm |
