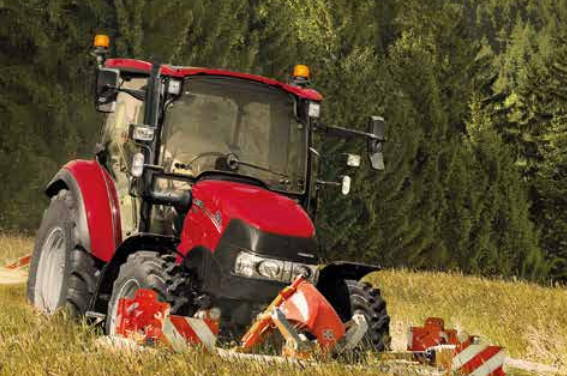

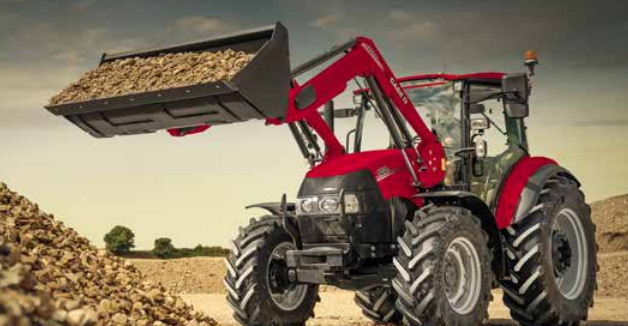

Case IH Farmall 100 C – 4WD Utility Tractor for Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Farmall 100 C |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Grassland, Livestock Farms, Poultry Units, Vegetable Growing, Turf Maintenance |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT F5, 4 Cylinders, Turbocharged and Intercooled, 3.6 L, Common Rail Diesel, Stage V |
|
Maximum Horsepower |
100 HP (74 kW) @ 2300 RPM |
|
Maximum Torque |
450 Nm @ 1300 RPM |
|
Transmission Type |
12x12 Synchroshift with Mechanical or Powershuttle, 24x24 Synchroshift with Mechanical or Powershuttle, 24x24 2-Speed Powershift with Powershuttle, 20x20 or 40x40 with Creeper |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Compact Design |
|
Braking System |
Optional Wet Disc Brakes on 1.5 HD Axle |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear) |
440/65R24 / 540/65R34 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Electro-Hydraulic, 540 RPM (Optional: 540/1000, 540/540E/1000, Ground Drive) |
|
Hydraulic System |
Max Pump Flow 100 l/min (36.5 l/min Steering, 63.5 l/min Rear Hitch & External), Up to 3 Rear Mechanical Remote Valves, Up to 2 Mid-Mount Mechanical Remote Valves |
|
Rear Lift |
Mechanical or Electronic Draft Control, Max Lift Capacity 4400 kg |
|
Front Hitch |
Optional, Max Lift Capacity 1670 kg, Optional Electronic Front Hitch (EFH) with Ground Pressure Control |
|
Loader Compatibility |
A Series (L3815A, L4017A), U Series (L3811U, L3814U, L3816U, L3915U, L3916U, L3920U, L4015U, L4018U), T Series (L3814T, L3917T, L3920T, L4020T) |
|
Cab Options |
Spacious Cab with HVAC, High-Visibility Roof Window, 200° Wiper, Noise Level 76 dB(A), Optional Air-Suspension Seat, Folding Passenger Seat |
|
Fuel Tank Capacity |
128.8 L |
|
Weight |
4030 kg (Shipping), 6200 kg (Standard Axle), 6500 kg (Heavy Duty or Large Class 1.5 Axle) |
|
Wheelbase |
2285 mm |
|
Width |
1923 mm (Across Mudguards) |
