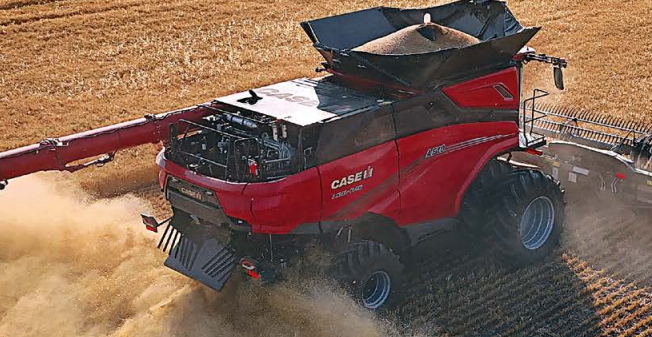

Case IH Axial-Flow AF9 – 578 HP Class 9 Combine Harvester for High-Capacity Harvesting
Specifications
|
Specification |
Details |
|
Model |
Case IH Axial-Flow AF9 |
|
Vehicle Category |
Combine Harvester (Class 9) |
|
Fuel Type |
Diesel |
|
Application |
Corn, soybeans, wheat, barley, canola, small grains, rice |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Case IH - FPT Cursor 13, 12.9 L (787 cu in.), Rated speed: 1900 RPM, Reduced low idle speed: 800 RPM |
|
Gross Horsepower |
Small grains: 578 HP (425 kW) rated, 634 HP (466 kW) peak; Corn and beans: 544 HP (400 kW) rated, 634 HP (466 kW) peak |
|
Transmission Type |
Power-Plus CVT Drive |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
ActiveTrac four-roller hydraulic suspended track system (optional, increases flotation by 14%) |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
VF900/65R46 (on 30" row) |
Components & Features
|
Specification |
Details |
|
Feeding System |
Feeder width: 56 in. (1430 mm), Feeder length with rock trap/SFS: 85 in. (2156 mm), Power-Plus CVT hydraulic drive/reverser, Head lift cylinders: 3.7 in. (95 mm) standard / 4.0 in. (110 mm) optional, Lift capacity: 12100 lb (5500 kg) standard / 15000 lb (6800 kg) optional, Lateral tilt range: ±5 degrees, Fore/aft faceplate tilt: 16 degrees, Staggered straight serrated stone trap/Synchronised Feed System (SFS) |
|
Threshing/Separating System |
Rotary single rotor (AFXL), Power-Plus CVT drive, Rotor speeds: 235-1180 RPM, Rotor diameter: 30 in. (762 mm), Rotor length: 144.5 in. (3670 mm), 2 pair concave/modules, 4 pairs separating grates/modules, Threshing/separating area wrap: 180°/180°, Total threshing/separating area: 5.1 m², MagnaCut integral chopper or beater with MagnaChop high hood-mounted chopper (optional), In-cab adjustable cage vanes, Grain pan with cross-flow/side shake |
|
Cleaning System |
Cross-Flow Plus, Width: 70.5 in. (1790 mm), Total sieve area: 13578 sq. in. (8.7 m²), 4 sieve pressure sensors, Fixed or self-leveling, Slope capability: up to 25% (13 degrees), Cross-Flow fan (hydraulic), Speed range: 300-1150 RPM (±50 RPM with AutoFan), Fan diameter: 17 in. (432 mm) |
|
Grain Handling |
Grain tank capacity: 16000 L (453 bu), Unloading auger length: 37 ft 8 in. (11.5 m, up to 61 ft/45 ft controlled traffic), Unloading rate: 210 L/s (5.95 bu/s) standard / 159 L/s (4.5 bu/s) optional, 2 clean grain augers, Clean grain elevator: 11.8 in. × 17.8 in. (300 mm × 451 mm), Elevator capacity: 8000 bu/hr standard / 10000 bu/hr optional, Single point yield calibration |
|
Fuel Tank Capacity |
343 gal (1300 L) |
|
Width |
155.43 in. (3948 mm) with VF900/65R46 on 30" row |
|
Wheelbase |
159.2 in. (4044 mm) with 2WD axle |
|
Transport Height |
156.7 in. (3980 mm) |
|
Weight |
2WD: 47051 lb (21342 kg) minimum, 52139 lb (23650 kg) typical; 4WD: 53213 lb (24137 kg) typical |
|
Features |
Luxury seat with climate control and massage, Dual Pro 1200 displays (7 customisable runscreens each, anti-glare, Bluetooth®), Harvest Command™ automation (Performance, Grain Quality, Max Throughput, Fixed Throughput modes), RowGuide Pro™ (GPS and sensor-based row tracking), AccuSync®, AccuGuide™, Yield and moisture monitoring, Remote display viewing, 2-way file transfer, AFS1 correction signal (AFS3 optional), Radar spread automation, Grain quality imaging, MagnaCut integral chopper or MagnaChop high hood-mounted chopper, Simple Disc Spreaders or Advanced Horizontal Spreaders, 360-degree LED lighting, Optional 360-degree cameras, Portable electric refrigerator, 3 × 12 V (99 A.h) batteries, 240 A alternator |
