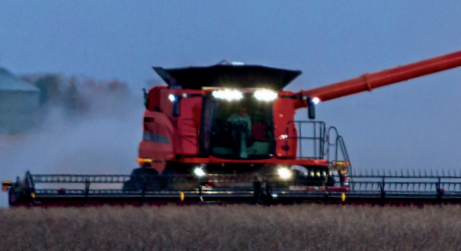

Case IH Axial-Flow 8250 – 480 HP Class VIII Combine Harvester for High-Efficiency Harvesting
Specifications
|
Specification |
Details |
|
Model |
Case IH Axial-Flow 8250 |
|
Vehicle Category |
Combine Harvester (Class VIII) |
|
Fuel Type |
Diesel |
|
Application |
Corn, soybeans, wheat, barley, canola, small grains, rice |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Case IH - FPT, 12.9 L, Tier II |
|
Gross Horsepower |
480 HP (358 kW) rated, 555 HP (414 kW) maximum, Power rise: 75 HP (56 kW) |
|
Transmission Type |
2-speed electric shift hydrostatic, Power Plus CVT drive (optional for feeder, standard for rotor) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Floating isolation cab mountings |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Single or dual drive tires (specific sizes not provided) |
Components & Features
|
Specification |
Details |
|
Feeding System |
Feeder width: 54 in. (1372 mm), Feeder length without rock trap: 94 in. (2388 mm), Fixed speed drive (CVT optional), CVT hydraulic reverser, Head lift cylinders: 90 mm/95 mm, Optional lateral tilt: ±5° (10° total), Optional in-cab adjustable fore/aft faceplate tilt: 12°, Spiral beater/sump stone trap, Strengthened feeder structure, Two-piece feeder floor, Enhanced header height control software |
|
Threshing/Separating System |
Rotary single rotor (AFX), CVT drive, Rotor diameter: 30 in. (762 mm), Rotor speeds: 220-1180 RPM, 2 pair concave/modules, 2 pair separating grates/modules, Threshing/separating area wrap: 180°/180°, Integral chopper or beater and chopper options, Manual or in-cab adjustable cage vanes, Active grain pan |
|
Cleaning System |
Self-levelling cleaning system, Width: 1575 mm, Total sieve area: 6.5 m², Cleaning angle capability: up to 12°, In-cab sieve louver adjustment, Cross-Flow hydraulic fan, Fan speed: 300-1150 RPM, Fan diameter: 391 mm, In-cab adjustable pre-sieve |
|
Grain Handling |
Grain tank capacity: 14400 L, Unloading auger length: 34 ft (10.4 m), Unloading rate: 159 L/s (4.5 bu/s), Tri-sweep crop processor tailings elevator, Clean grain elevator: 302×264 mm, Capacity: 6500 bu/hr |
|
Fuel Tank Capacity |
1125 L |
|
Width |
3962 mm (overall single tires, 120-in. tread) |
|
Wheelbase |
3752 mm (2WD axle) / 3772 mm (PGA) |
|
Height |
3904 mm (cab height) |
|
Weight |
19434 kg (2WD, single drive tires), 21309 kg (2WD, dual drive tires) |
|
Features |
AFS Harvest Command automation (Performance, Grain Quality, Max Throughput, Fixed Throughput modes), 16 sensors (ground speed, ground drive pressure, inclination, cage vane position, flow/yield, presieve position, upper/lower sieve position, sieve loss, sieve pressure, fan speed, engine load, rotor speed, rotor loss, tailings volume), Constant pitch impellers, Transition cone, Integral chopper or beater and chopper options, Optional differential lock (electrically actuated, hydraulically engaged), Economy mode and auto-idle RPM, Header to groundspeed syncing for corn heads |
