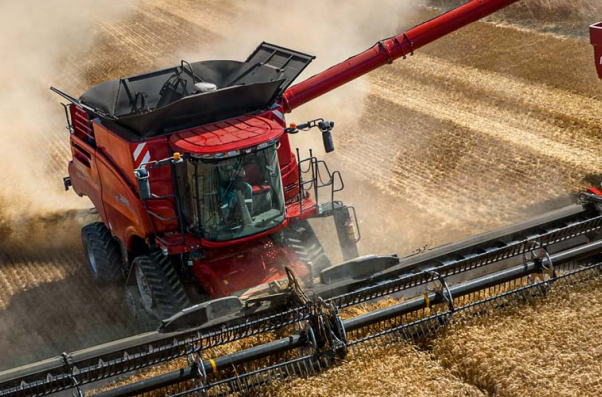

Case IH Axial-Flow 7260 – 498 HP Combine Harvester for Versatile Harvesting
Specifications
|
Specification |
Details |
|
Model |
Case IH Axial-Flow 7260 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Corn, soybeans, wheat, barley, canola, small grains, rice, and over 134 other grain types |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT Cursor 11, 6 cylinder, turbo, aftercooler, 11.1 L (11100 cm³), EGR-free |
|
Gross Horsepower |
498 HP (366 kW) max power at 2000 RPM (ECE R120) |
|
Transmission Type |
2-speed hydrostatic with on-the-go hydraulic high/low shift, Power Plus CVT rotor drive with reverser |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Floating isolation cab mountings, Optional 28.5-inch track widths with hydraulic suspension |
Wheels & Tyres
|
Specification |
Details |
|
Tracks |
28.5 inch (724 mm) track widths, tricycle system with hydraulic suspension |
|
Tyres |
Front: VF710/70R42 CFO 190B R1W, IF800/70R38 CFO 187A8 R1W, IF900/60R32 CFO 188A8 R1W, VF900/60R38 CFO 193A8 R1W; Rear: 500/85R24 IMP 165A8, VF600/70R28 CFO 173A8 R1W, VF620/70R26 173A8 R1W, 750/65R26 CFO 177A8 R1W |
Components & Features
|
Specification |
Details |
|
Feeding System |
Heavy duty feeder chain with feeder slats, Stone trap with slip clutch, Terrain Tracker (automatic header height control), Lateral tilt and 12° forward/backward adjustment, Compatible headers: Fixed/variable knife (6.1-9.2 m), Draper (6.1-9.2 m), Flex (6.1-9.2 m), Corn (6/8/12 row wide, 16/18 row narrow), Pickup (3.7/4.6 m) |
|
Threshing/Separating System |
Single rotor, Gearbox and shaft variable speed drive, Rotor speed: 220-1180 RPM (3 ranges), Rotor diameter: 762 mm, Rotor length: 2638 mm, Total separation area: 2.98 m², Threshing/separating modules wrap angle: 180°, 2/2 concave rows (threshing/separation), Exchangeable rasp bars (round bar, slotted, large wire, small wire), Triple impeller tailings processor to grain pan |
|
Cleaning System |
Cross-Flow self-leveling (up to 12.1% leveling capability), Total sieve area: 6.5 m², Hydraulic load sensing fan, Fan speed: 300-1150 RPM, Patented sieve pressure sensors, Auto Fan, Pre-sieve adjustment, Upper sieve adjustment, Tri-Sweep re-threshing system |
|
Grain Handling |
Grain tank capacity: 11100 L (optional 14400 L), Unloading rate: 141 L/s, Unloading auger length: 6.7 m, 7.6 m, 7.2 m, or 8.8 m (rigid or folding), In-cab control of grain tank covers, Pivot spout, Waterscaled grain tank with hydraulically folded extensions |
|
Fuel Tank Capacity |
1125 L |
|
Width |
3490 mm (with narrowest tires) |
|
Length |
8050 mm |
|
Height |
3980 mm (minimum transport height) |
|
Weight |
19000 kg (on tracks) |
|
Features |
Luxury seat with temperature control and massage, Dual Pro 1200 monitors (12” high resolution, multi-touch, Bluetooth®), Harvest Command automation (Performance, Grain Quality, Max Throughput, Fixed Throughput modes), Patented grain camera (6 UV light analyses), Yield and moisture monitoring/mapping, AccuGuide, AccuTurn Pro, RowGuide, AccuSync, Integral fixed knife chopper (24/12, 40/40, 120/40 knives) or Xtra-Chopping system (40/40 or 120/40 knives plus 96-knife hood mount chopper), Vertical twin disc hydraulically driven spreader, In-cab adjustable chopper speed/swath control, Heavy duty adjustable steering axle, Powered rear axle, Differential lock, Case IH header trailer (7.6-15.2 m), 6 belts/3 chains drive system, Shaft drives with hydrostatic speed adjustment |
