Case IH Austoft 9000 Wheeled – 420 HP Sugarcane Harvester for High-Capacity Harvesting
Specifications
|
Specification |
Details |
|
Model |
Case IH Austoft 9000 (Wheeled) |
|
Vehicle Category |
Sugarcane Harvester |
|
Fuel Type |
Diesel |
|
Application |
Sugarcane |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT Cursor 11, 6 cylinders in line, 11.1 L, Common Rail injection (up to 2200 bar), 4 valves per cylinder, Smart Cruise intelligent engine, Tier 0/Tier 3/Stage V |
|
Gross Horsepower |
420 HP (310 kW) at 1600 RPM |
|
Torque |
2300 Nm at 950 RPM |
|
Transmission Type |
Hydrostatic with variable speed forward and reverse, Ground speed: 0-20 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Front suspension cylinder for improved front grip |
Components & Features
|
Specification |
Details |
|
Harvesting System |

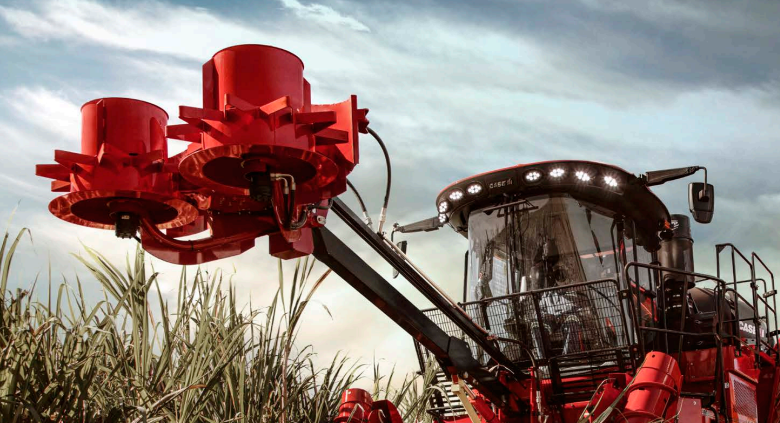

Feed Rate Control (Level 1: Increases RPM based on base cutter/chopper pressures; Level 2: Reduces ground speed if pressures remain high), Extreme Chopper, 45° crop dividers with bolted base shoe and rotating toe, Side trim knife, Knockdown roller (1080 mm width, hydraulic/reversible), Feed rollers (5 lower fixed, 5 upper floating, 900 mm width), Buttlifter roller (900 mm width, 3 or 4 paddles), Antivortex system (reduces trash/cane loss, 30 HP less power demand), Topper with extended mast (40% more powerful motor) |
|
Chopper |
4 blades per roller, Drum diameter: 380 mm, Blade width: 65 mm (replaceable), Adjustable deflector plates, Reversible hydraulic drive, Billet length adjusted from cab |
|
Elevator |

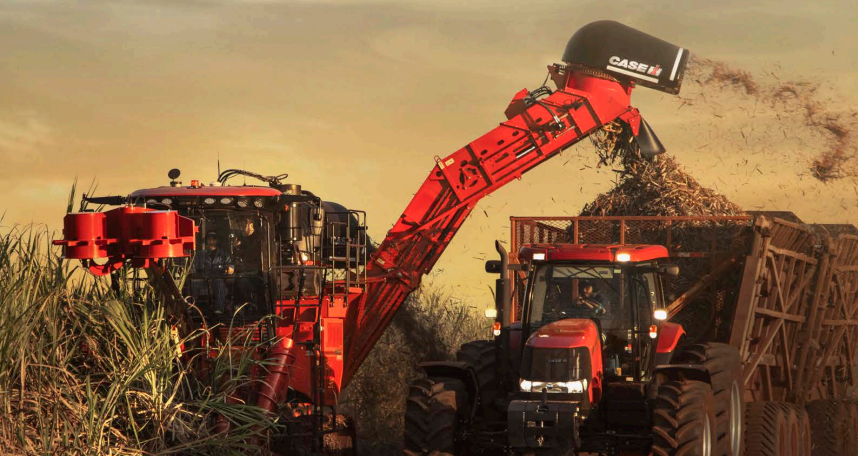

900 mm width, Lighter design, Higher transport capacity, Secondary extractor with 360° turning angle |
|
Cooling System |
Fixed screen radiator package (engine coolant radiator, intercooler, hydraulic oil radiator, air conditioning condenser), Upper harvester location, Hydraulically driven reversible SmartFan (auto-reverses every 20 minutes or manually), Pre-filter with top spin cleaning system |
|
Hydraulic System |
Intelligent piston pumps with individual electronic controllers, Closed circuit for traction and chopper, High abrasion resistant hoses, Optimized routing, Hydraulic oil capacity: 500 L |
|
Fuel Tank Capacity |
620 L, DEF capacity: 70 L (Tier 3 and above) |
|
Width |
3040 mm (closed mirrors, +230 mm open) |
|
Length |
13930 mm |
|
Height |
6340 mm (total), 4240 mm (non-retractable), Topper: 3890 mm max / 890 mm min |
|
Weight |
17360 kg |
|
Features |
AFS Connect telematics (4G, 3-year subscription included), AFS Autoguidance (AFS 372 receiver), PRO700+ monitor (customizable screens, alerts), 3 operational cameras, 8 cab-mounted LED headlamps, Beacon lights, Reverse alarm, Exit lights (90-second delay), Foldable windshield protection, Air-conditioned cab with 2 doors, Operator seat with air suspension, Training seat, Steering via joystick or steering wheel, Multifunctional handle, Electronic transmission, New battery compartment, Modular bolted chassis, Non-structural bolted hydraulic tanks, 12V system, 45% savings on air filter replacement, Engine box service lights |
