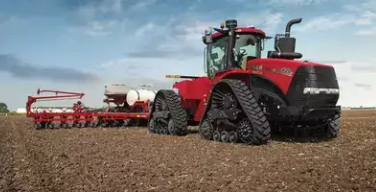

Case IH AFS Connect Steiger 475 – 4WD Articulated Wheeled Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Steiger 475 |
|
Vehicle Category |
Articulated Wheeled Tractor |
|
Fuel Type |
Diesel |
|
Application |
Large-Scale Arable Farming, Heavy-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT Cursor 13, 6 Cylinders, 12.9 L, Tier 4 B/Final, Stage V |
|
Maximum Horsepower |
522 HP (384 kW) |
|
Rated Horsepower |
475 HP (349 kW) @ 2200 RPM |
|
Transmission Type |
16F/2R PowerDrive or CVTDrive |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Heavy-Duty Articulated Frame |
|
Suspension |
Four-Way Cab Suspension |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Dual or Triple Wheel Configurations Available |
Components & Features
|
Specification |
Details |
|
Hydraulic System |
Max Pump Flow 159 l/min (Standard), Optional 216 or 428 l/min, Up to 8 Remote Valves |
|
Rear Lift |
Max Lift Capacity 10,092 kg |
|
Cab Options |
Four-Way Cab Suspension, AFS Vision Pro Operating System, AFS Pro 1200 Monitor, Configurable Buttons (Over 100 Functions), MultiControl Armrest |
