Specification

Details

Model

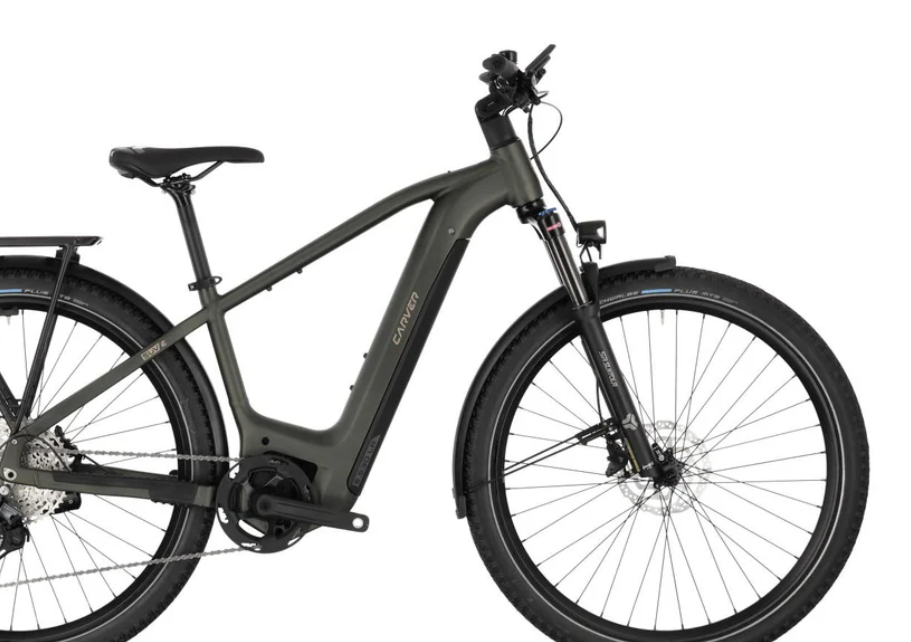

SUV E.530 LR

Vehicle Category

E-MOUNTAIN Hardtail

Application

E-mountain, long-range, touring, Bosch CX, commuting

Starting Price (2025)

€3,999.99

Sizes

S, M, L, XL, XXL

Specification

Details

Frame

Aluminum, integrated battery

Fork

SR Suntour XCR34-COIL-Boost, 120 mm travel

Motor

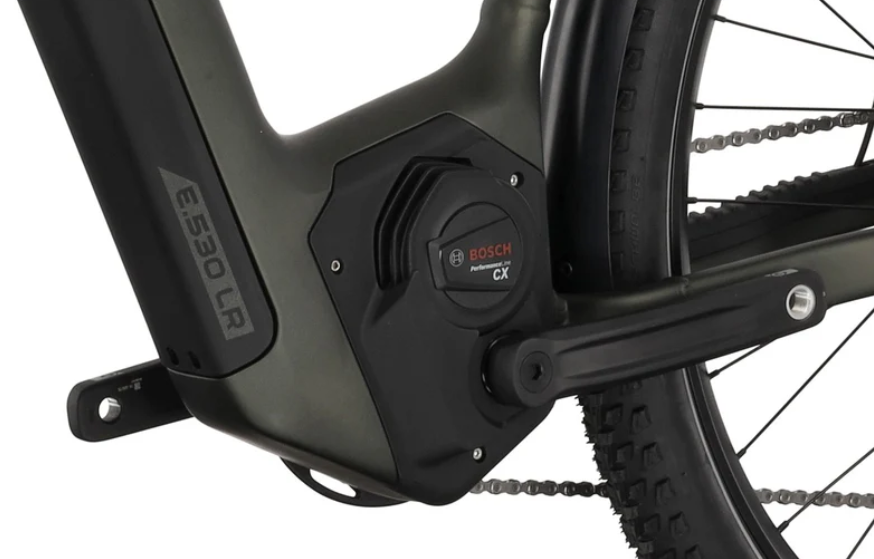

Bosch Performance Line CX Smart System Gen4, 85 Nm, 250 W

Battery

Bosch PowerTube 750 Wh horizontal

Display

Bosch Intuvia 100

Switch

Bosch LED Remote

Charger

Bosch Standard Charger

Crank

FSA Crankset CK-320, 170mm

Chainring

KMC Chainring Bosch G4 Front, 38T

Chain

Shimano CN-M6100, 12s

Shifters

Shimano Deore SL-M6100, 12-speed Rapidfire Plus

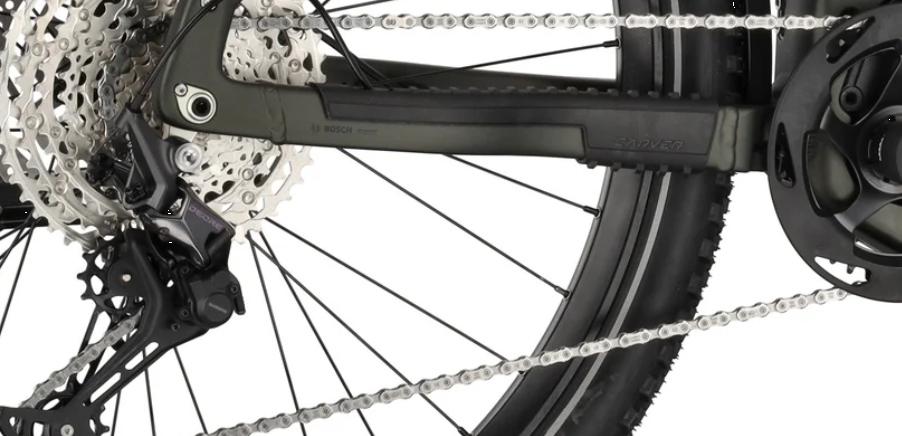

Rear Derailleur

Shimano Deore RD-M6100, 12s Shadow Plus

Specification

Details

Seating

Carver Custom Sport

Fuel Type

Electric (BOSCH)

Cargo Capacity

Carver Custom Design, Racktime Snap-it 1.0

Wheels/Tyres

27.5"/29" Schwalbe Marathon Plus MOUNTAIN (front and rear, 2.25), Schürmann Craft Disc rims, Shimano Deore CS-M6100-12 10-51t cassette

Wheel Size

27.5" (S), 29" (M-XXL)

Brakes

Shimano BR-MT410 hydraulic disc (front 180 mm, rear 180 mm rotors)

Brake Levers

Shimano Deore SL-M6100

Handlebar

Carver Rise Bar, 720 mm width, 25 mm rise, 9° backsweep

Stem

Carver Custom Ahead adjustable, XS/S: 65mm; M/L/XL: 90mm

Grips

Carver Trekking Grip

Headset

Acros AZX-585

Saddle

Carver Custom Sport

Seatpost

Alloy, 31.6 mm

Front Hub

Shimano HB-TC500-15-B, Centerlock, 15x110 mm

Rear Hub

Shimano FH-TC500-MS-B, Centerlock, 12x148 mm

Rims

Schürmann Craft Disc, aluminum, 36h, SV valve

Spokes

Mach1

Pedals

VP VPE-461

Exterior Features

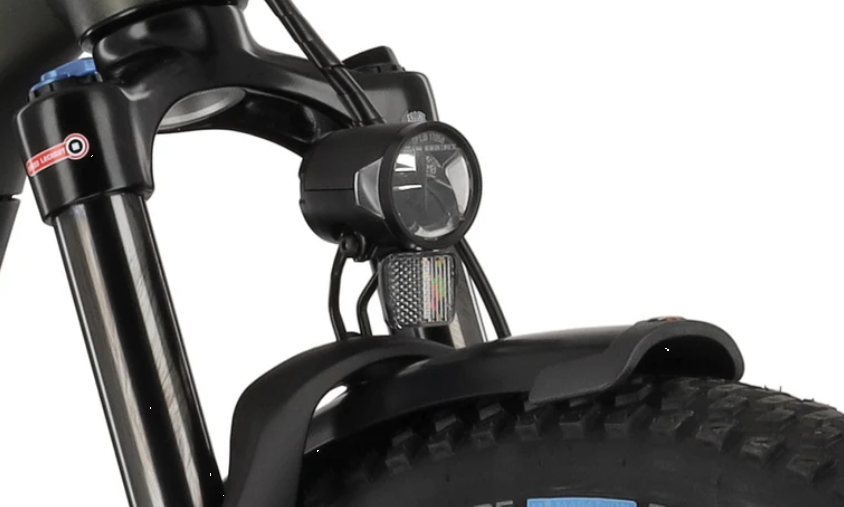

Herrmans H-Black MR8 E front light (180 Lumen), AXA Juno Black rear light, SKS PET A65 mudguards, Atran Kickstand REX, Büchel Mini Bell

Weight

29.4 kg
